Quick Details
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Product name:
-
Metal Flat Deburring Machine
-
Function:
-
Removal of burrs, edge chamfer
-
Application material:
-
stainless steel, iron, copper, alloy, coated sheet
-
Max processing height:
-
80mm
-
Fixed delivery mode:
-
Magnetic adsorption + negative pressure adsorption
-
Voltage:
-
AC 380V/50Hz
-
Chamfering radian:
-
R0.5~1.5 mm
-
Conveyor line width:
-
900 mm
-
Dimension:
-
1426(L)*1945(W)*2010(H) mm
-
Brush speed:
-
0~1000 r/min (adjustable)
Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Honry
-
Marketing Type:
-
New Product 2024
-
Power (kW):
-
5
-
Weight (KG):
-
1500
-
Product name:
-
Metal Flat Deburring Machine
-
Function:
-
Removal of burrs, edge chamfer
-
Application material:
-
stainless steel, iron, copper, alloy, coated sheet
-
Max processing height:
-
80mm
-
Fixed delivery mode:
-
Magnetic adsorption + negative pressure adsorption
-
Voltage:
-
AC 380V/50Hz
-
Chamfering radian:
-
R0.5~1.5 mm
-
Conveyor line width:
-
900 mm
-
Dimension:
-
1426(L)*1945(W)*2010(H) mm
-
Brush speed:
-
0~1000 r/min (adjustable)
Product Description

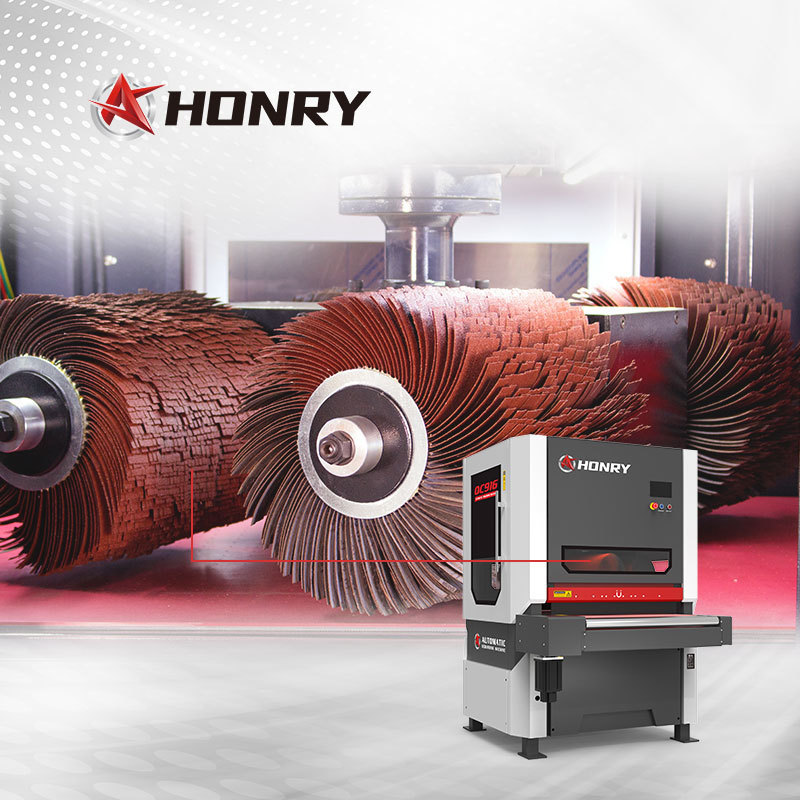

HONRY FLAT METAL DEBURRING MACHINE
Honry
is a brand specialized in the production of automatic metal deburring machine owned by
Tianjin Yicaijinyuan CNC Equipment Co., Ltd
. Brand line products include:
*
QC916, QC930, QC1325
;
SS1000, R-R1000
;
SQ1000, SSQ1000
|
MODEL
|
GRINDING UNIT
|
APPLICABLE MATERIAL
|
APPLICATION SCOPE
|
FUNCTION
|
|
QC916,
QC930, QC1325
|
universal rollers
|
stainless steel, iron, copper, aluminum, alloy, coated sheet
|
1. Burr and sharp edge produced by stamping, cutting, etc.;
2.
Soft burr
of sheet metal produced by laser cutting
|
1. Remove lighter/softer burrs of parts' edge;
2. Chamfering for inner and outer edge
|
|
SS1000, R-R1000
|
wide sand belt
|
stainless steel, carbon steel, iron, copper, aluminum, alloy sheet and wooden planks
|
1.
Slag
and
burr
produced by laser, flame, plasma and other hot processing;
2. Burr and sharp edge produced by stamping, cutting, etc.
|
1. Remove solid slag and burrs from the surface of the workpiece;
2. Remove the surface rust and oxide layer of the workpiece;
3. Drawing of hair line on workpiece surface
|
|
SQ1000, SSQ1000
|
universal rollers + wide sand belt
|
stainless steel, carbon steel, iron, copper, aluminum, alloy sheet and coated sheet
|
|
1. Remove solid slag and burrs from the surface of the workpiece;
2. Remove the surface rust and oxide layer of the workpiece;
3. Chamfering for inner and outer edge;
4. Drawing of hair line and snow pattern on workpiece surface
|
Specification
|
item
|
value
|
|
Model
|
QC916
|
|
Marketing Type
|
New Product 2023
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
PLC, Grinding Unit
|
|
Key Selling Points
|
High Productivity
|
|
Warranty
|
1 Year
|
|
Applicable Industries
|
Construction works , Building Material Shops, Advertising Company, Machinery Repair Shops, Manufacturing Plant, wheel coating shops
|
|
Product name
|
Metal Flat Deburring Machine
|
|
Function
|
Removal of burrs, edge chamfer
|
|
Application material
|
stainless steel, iron, copper, alloy, coated sheet
|
|
Max processing height
|
80mm
|
|
Fixed delivery mode
|
Magnetic adsorption + negative pressure adsorption
|
|
Voltage
|
AC 380V/50Hz
|
|
Chamfering radian
|
R0.5~1.5 mm
|
|
Conveyor line width
|
900 mm
|
|
Dimension
|
1426(L)*1945(W)*2010(H) mm
|
|
Brush speed
|
0~1000 r/min (adjustable)
|
