Quick Details
-
Brand Name:
-
SMICO
-
Model Number:
-
SOUKK-250
-
Color:
-
Blue and Gray
-
Rated Current:
-
250A
-
Rated voltage:
-
690V
-
Input Size:
-
1 X 120mm²
-
Output Size:
-
2X35/5X16/4X10 mm²
-
Material of Shell:
-
Nylon PA66
-
Metal Material:
-
Brass Nickel plated
-
Mounting Type:
-
Din Rail
-
Connection Method:
-
Screw Connection
-
Flame retardant:
-
UL94V0
-
Dimensions:
-
47.8/50/96
Quick Details
-
Type:
-
Connector
-
Application:
-
Power
-
Place of Origin:
-
ZHE
-
Brand Name:
-
SMICO
-
Model Number:
-
SOUKK-250
-
Color:
-
Blue and Gray
-
Rated Current:
-
250A
-
Rated voltage:
-
690V
-
Input Size:
-
1 X 120mm²
-
Output Size:
-
2X35/5X16/4X10 mm²
-
Material of Shell:
-
Nylon PA66
-
Metal Material:
-
Brass Nickel plated
-
Mounting Type:
-
Din Rail
-
Connection Method:
-
Screw Connection
-
Flame retardant:
-
UL94V0
-
Dimensions:
-
47.8/50/96
Product Description

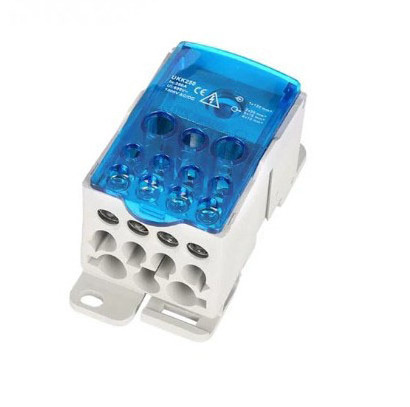

UKK junction box is a single-stage bus junction box. It adopts one in and many out and guide rail installation. It has different specifications, such as one in and six out, one in and ten out, and one in and eleven out. It can meet a variety of cable branches. It adopts flame-retardant shell and brass body. It is a new type of terminal junction box.
Products Description
|
UKK SINGLE-STAGE BUS JUNCTION BOX
|
|
|
|
Type
|
UKK 80A
|
|
|
Color
|
Blue and Gray
|
|
|
Length/Wide/Height(mm)
|
66/29.3/47
|
|
|
Rated Voltage/Current
|
690V/80A
|
|
|
Connection Method
|
Screw Connection
|
|
|
Material
|
Flame resistant Nylon PA66,Brass conductor
|
|
|
Entry Specification
|
1*16mm2
|
|
|
Output Specification
|
4*6mm2/2*16mm2
|
|
|
Installation Mode
|
35mm guide rail or Screw fixing
|
|
|
Weigth
|
0.06KG
|
|
|
Standard
|
IEC 60947-7-1
|
|
|
UKK SINGLE-STAGE BUS JUNCTION BOX
|
|
|
|
Type
|
UKK 125A
|
|
|
Color
|
Blue and Gray
|
|
|
Length/Wide/Height(mm)
|
75/29.4/47
|
|
|
Rated Voltage/Current
|
690V/125A
|
|
|
Connection Method
|
Screw Connection
|
|
|
Material
|
Flame resistant Nylon PA66,Brass conductor
|
|
|
Entry Specification
|
1*16mm2 / 1*35mm2
|
|
|
Output Specification
|
6*16mm2
|
|
|
Installation Mode
|
35mm guide rail or Screw fixing
|
|
|
Weigth
|
0.14KG
|
|
|
Standard
|
IEC 60947-7-1
|
|
|
UKK SINGLE-STAGE BUS JUNCTION BOX
|
|
|
|
Type
|
UKK 160A
|
|
|
Color
|
Blue and Gray
|
|
|
Length/Wide/Height(mm)
|
75/29.4/47
|
|
|
Rated Voltage/Current
|
690V/160A
|
|
|
Connection Method
|
Screw Connection
|
|
|
Material
|
Flame resistant Nylon PA66,Brass conductor
|
|
|
Entry Specification
|
1*16mm2 / 1*70mm2
|
|
|
Output Specification
|
6*16mm2
|
|
|
Installation Mode
|
35mm guide rail or Screw fixing
|
|
|
Weigth
|
0.14KG
|
|
|
Standard
|
IEC 60947-7-1
|
|
|
UKK SINGLE-STAGE BUS JUNCTION BOX
|
|
|
|
Type
|
UKK 250A
|
|
|
Color
|
Blue and Gray
|
|
|
Length/Wide/Height(mm)
|
96/47.3/50
|
|
|
Rated Voltage/Current
|
690V/250A
|
|
|
Connection Method
|
Screw Connection
|
|
|
Material
|
Flame resistant Nylon PA66,Brass conductor
|
|
|
Entry Specification
|
1*16mm2 / 1*70mm2
|
|
|
Output Specification
|
6*16mm2
|
|
|
Installation Mode
|
35mm guide rail or Screw fixing
|
|
|
Weigth
|
0.14KG
|
|
|
Standard
|
IEC 60947-7-1
|
|
|
UKK SINGLE-STAGE BUS JUNCTION BOX
|
|
|
|
Type
|
UKK 400A
|
|
|
Color
|
Blue and Gray
|
|
|
Length/Wide/Height(mm)
|
96/47.3/50
|
|
|
Rated Voltage/Current
|
690V/400A
|
|
|
Connection Method
|
Screw Connection
|
|
|
Material
|
Flame resistant Nylon PA66,Brass conductor
|
|
|
Entry Specification
|
1*185mm2
|
|
|
Output Specification
|
2*35mm2/5*16mm2/4*10mm2
|
|
|
Installation Mode
|
35mm guide rail or Screw fixing
|
|
|
Weigth
|
0.4KG
|
|
|
Standard
|
IEC 60947-7-1
|
|
Details Images
Product packaging
Zhejiang Smico Electric Power Equipment Co.,Ltd. Located in Liushi Town,Yueqing City,the China Electrical City. Have conveniently
traffic 25km respectively from Wenzhou airport and railway station,and 5km from 104 national road freeway.
We specialized in manufacturing Aerial electrical fittings,Cable and wire terminal,Power
connectors,Insulator,Arrester,Switch.Since we founded,we insisted to carry on the strategy to provide the top quality
products,competitive price,perfect after-sale service,prompt new products developing to satisfy customers’ demand. Therefore,our
products have gained a strong reputation throughout the Europe,Noth American,South American,Middle East and Southeast Asia,etc.
As we strive to hold on our promise of “Human Oriented,Technology Advanced”,we make hard effort to increase our global market
presence. We strictly produce the goods accordance with the ISO9001,and most of for our products have the CE and CB certificate.
We will improve ourselves all the time and sincerely invite you who interested in our products to develop the business together.We
are always your electrical friends.
