Quick Details
-
Brand Name:
-
YUYE
-
Model Number:
-
YGLZ1A
-
Max. Current:
-
630A
-
IP level:
-
/
-
Type:
-
Manual transfer switch
-
Pole:
-
3P/4P
-
Rated current:
-
100-630A
-
Rated voltage:
-
380V
-
Frequency:
-
50/60Hz
-
Function:
-
ON-OFF-ON
-
Mechanical Life:
-
10000 Times
-
Warranty period:
-
12-24 months
-
Market:
-
Middle East, south Africa, American
-
Certification:
-
CE CCC
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
690V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YUYE
-
Model Number:
-
YGLZ1A
-
Max. Current:
-
630A
-
IP level:
-
/
-
Type:
-
Manual transfer switch
-
Pole:
-
3P/4P
-
Rated current:
-
100-630A
-
Rated voltage:
-
380V
-
Frequency:
-
50/60Hz
-
Function:
-
ON-OFF-ON
-
Mechanical Life:
-
10000 Times
-
Warranty period:
-
12-24 months
-
Market:
-
Middle East, south Africa, American
-
Certification:
-
CE CCC
Why Choose Us
Our advantage
One Two Three ELectric Co.,Ltd is the biggest ATS,LOAD BREAKER,CIRCUIT BREAKER manufacturer in China - more than 300 companys make OEM,ODM order from us.
Rich Experience
Our factory was founded in 2004, have a long history in manufacturing and We have export to all over the world till now, The total Annual sales is about USD17,000,000.We firmly promise to top quality, competitive price, quick delivery and good before/after sales services. OEM,ODM service is welcomed.
Quality warranty
We have our own factory, engi neer team and a set of equipment&n bsp;for the product test, Beside,we can control the production (also mean we can control the lead -time) quality of the product very well. We have passed ISO9001:2008 Quality Management System and CCC, CE.
Products Description
Application and using environment
YGLZ1A-100~60 is used to transfer or safely isolated of two low voltage power system or two loading equipment.
AC 50Hz, rated voltage 660V, DC ratede voltage 440V, rated current 160A. It is used for making and breaking circuit infrequently.
Switch working condition
Altitude not more than 2000m
The range of ambient temperature is from 5℃ to 40℃
Relative humidity not more than 95%
The environment without any explosive medium
The environment without any rain or snow attacking
Note:If the product is expected to be used in the environment where temperature
is over +40℃ or below -5℃ to 40℃,users shall tell it to the manufacturer.
For more detail information you wanan know, pls feel free contact with me. Thanks!
Structure and characteristics
Products with observation windows can be provided according to the demand to observe directly the on and off state of contact.
The products have three poles, four poles, and (three poles+on and off netural pole).
Extended shaft is used for the operation outside the board.
Two sets of auxiliary contacts can be assembled according to the demand.
Mechanical property and electric property correspond to the mechanical property and electric property of YGL-125-4000A
A bridge can provided to connect the inlet or outlet terminal of the switch.
Note: The bridge connection is chosen, an explanation is needed to indicate the inlet or outlet is connected with it.
3/4poles (3poles + neutral pole closing &breaking available )
the extending shaft is suitable to operation out of cabinet
two group of auxiliary contact can be configured according to requirement
for the inletting and outletting wire terminal ,the bridge connection can be available
Product Paramenters
Main Technology Paremeter

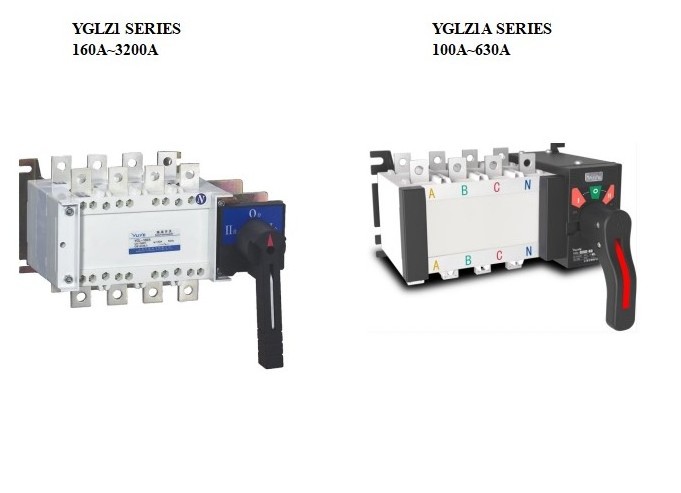

YGLZ1A-100~630A
New Model I-O-II Three Positions Manual Transfer Power Switches MTS
|
Conventional rank
|
63A
|
100A
|
100A
|
3200M
|
160A
|
4000
|
250A
|
|
|||||||
|
Rated current In(A)
|
40
|
63
|
80
|
100
|
125
|
160
|
200
|
250
|
|||||||
|
Dielectric strength (V)
|
5000
|
|
|
|
|
|
|
|
|||||||
|
Rated surge-resistant voltage Uimp KV
|
6
|
|
|
|
|
|
|
|
|||||||
|
Rated breaking capability Icn (A Rms) AC230 380V
|
320
|
504
|
640
|
800
|
1000
|
1000
|
1600
|
1600
|
|||||||
|
Rated making capability Icn (A Rms) AC230 380V
|
400
|
630
|
800
|
1000
|
1250
|
1600
|
2000
|
2500
|
|||||||
|
Rated short-current making capability Icm(kA peak value)
|
2.84
|
|
|
|
13.6
|
|
17
|
|
|||||||
|
Mechanical durability 380V
|
1700
|
|
|
|
1400
|
|
|
|
|||||||
|
Electrical curability 380V
|
300
|
|
|
|
200
|
|
|
|
|||||||
|
Operation moment (Nm)
|
1.2
|
|
|
|
6.5
|
|
10
|
|
|||||||
|
Weight(kg)
|
0.37-0.41
|
|
|
|
1.3-1.5
|
|
2.2-2.6
|
|
|||||||
