Super High Speed Qualified Laser Cutter 1610 co2 cnc laser cutting machines for non-metal materials leather/foam/wood/plywood/

Super High Speed Qualified Laser Cutter 1610 co2 cnc laser cutting machines for non-metal materials leather/foam/wood/plywood/

FOB Reference Price: Get Latest Price

≥1 Sets

US $518

≥5 Sets

US $499

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: RuiDa

Cutting Area:: 1600MM*1000MM

Cutting Thickness:: 1-30mm

Control Software:: RuiDa

Place of Origin:: Shanghai, China

Brand Name:: KASU

Weight (KG):: 600 KG

Warranty of core components:: 10 Months

Product name:: KASU K1610-F2

Laser power:: 80w/100w/130w/150w/200w

Laser-type:: co2

Quick Details

Laser Type:: CO2

Cutting Speed:: <1000MM/S

Cooling Mode:: WATER COOLING

Control System Brand:: RuiDa

Cutting Area:: 1600MM*1000MM

Cutting Thickness:: 1-30mm

Control Software:: RuiDa

Place of Origin:: Shanghai, China

Brand Name:: KASU

Weight (KG):: 600 KG

Warranty of core components:: 10 Months

Product name:: KASU K1610-F2

Laser power:: 80w/100w/130w/150w/200w

Laser-type:: co2

Product Description

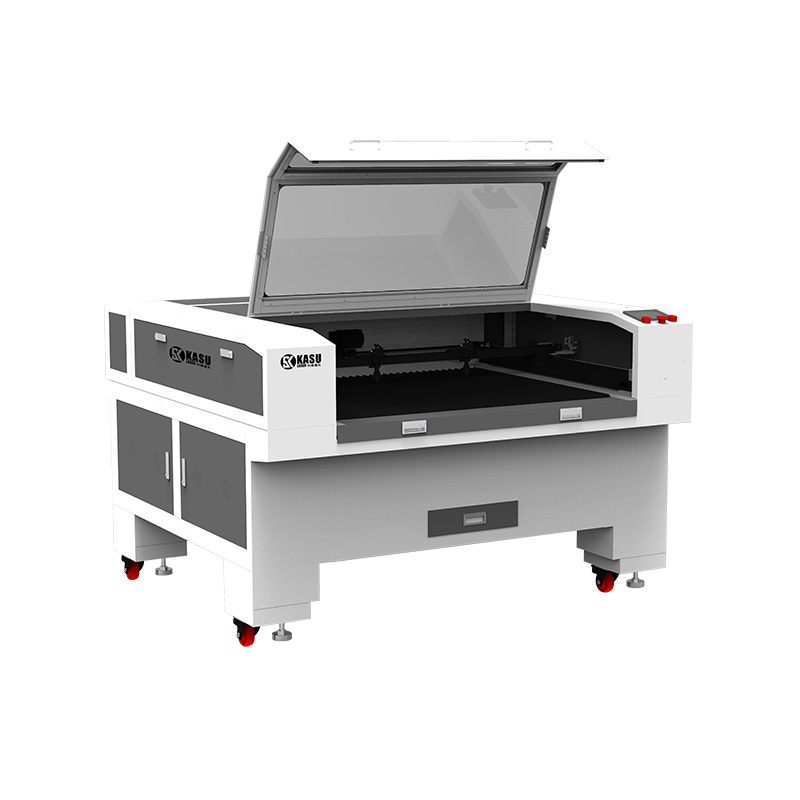

KASU K1610-F2

Double Head Laser Cutter

With Honeycomb Table

The beauty of the co2 laser cutting is that it is incredibly versatile with suitability of different types of non-metal materials.

The two heads of the KASU K1610-F2 double-head laser cutting machine with a honeycomb table can simultaneously cut the same shapes of patterns at super high speed. And it can cut and engrave non-metal materials like leather, plush, fabrics, foam, acrylic, plastic, wood, plywood, paper, etc.

Compared with the single-head laser cutting machine, KASU' s double-head laser cutting machine with honeycomb table K1610-F2 doubles the cutting production and can offer you a less than 3 months’ ROI cutting workshop solution! High-precision cutting also ensures your high product quality.

Effective Working Area: 1600*1000 MM Machine Size: 2210*1610*1120 MM

Display from All Directions

Specification

Smart Laser Control Software

While using KASU K1610-F2 laser cutter, only CAD design files are necessary, and you can design at your wish. The smart laser control software can make the whole cutting and engraving process highly automatic.

Reinforced Hardware Module

The laser cutter lasts longer since there is no mechanical friction that could lead to wear and tear. It makes our cutter achieve an impressive level of precision. This level of accuracy is as high as +/-0.1 mm.

Double Laser Cutting Heads

KASU K1610-F2 laser cutter is equipped with two laser cut-ting heads in the single guiderail. The two heads can cut patterns with the same layout simultaneously which will double the production compared with the single head laser cutter.

Strong Honeycomb Table

We are using the reinforced galvanized iron honeycomb platform to offer you strongest support for both soft and plate materials. Standard bore diameter is 9.5mm and you can also select 7.5mm for your different applications.

Working Area	1600MM*1000MM	Software	KASU
Laser Type	Glass CO2 Laser Tube	Working Speed	＜1000MM/S
Laser Power	80/100/130/150/180/200W	Power Supply Requirements	AC220V±5% 50Hz/60Hz 1Phase
Heads of Laser	Double Heads	Format Supported	AI/BMP/PLT/DXF/DST
Dimensions with Wood Package	2.31.91.32M	Positioning Accuracy	±0.1MM
Gross Weight	600KG	Operating Temperature	minus 10℃~45℃
Motion System	Hybrid Step-Servo Motor	Operating Humidity	5-95%
Cooling System	5200 Industrial Water Chiller	Total Power	＜1.5KW(Excluding exhauster)

APPLICATIONS

KASU K1610-F2 can cut and engrave non-metal materials like leather, plush, fabrics, foam, acrylic, plastic, wood, plywood, paper, etc.

OPTIONAL DEVICES

CCD Camera

Blade Knife Table

Single Head

At Clients' Working Site

item	value
Application	LASER CUTTING
Condition	New
Laser Type	CO2
10Cutting Area	1000MM*1600MM
Cutting Speed	<1000MM/S
Cutting Thickness	1-30mm
CNC or Not	Yes
Cooling Mode	WATER COOLING
Control Software	RuiDa
Place of Origin	Shanghai, China
Brand Name	KASU
Laser Source Brand	RECI
Laser Head Brand	Raytools
Servo Motor Brand	Leadshine
Guiderail Brand	HIWIN
Control System Brand	RuiDa
Weight (KG)	600KG
Key Selling Points	Multifunctional
Optical Lens Brand	Might
Warranty	1 Year
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Warranty of core components	10 Months
Mode of Operation	continuous wave
Configuration	gantry type
Products handled	Sheet Metal and Tube
Feature	Water-cooled
Product name	KASU K1610-F2
Laser power	80w/100w/130w/150w/200w
Laser-type	co2
