Quick Details
-
Input Voltage:
-
220V/110V
-
Weight (KG):
-
246 KG
-
Model Number:
-
WP355B
-
Available welding diameter:
-
110-355 mm
-
Applicable Material:
-
PE, PP. PVDF
-
Weld Method:
-
Hydraulic Butt Fusion Welding Machine
-
Heating Plate Temperature:
-
3.6 KW
-
Planing tool:
-
1.1(220V)/0.75(380V) KW
-
Hydraulic station:
-
0.75(220V)/1.1(380V) KW
-
Pressure adjusting range:
-
0-16 MPa
-
Max Temperature of heating plate:
-
270degree
-
Temperature Deviation:
-
±5degree
Quick Details
-
Warranty of core components:
-
18 Months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Welping
-
Input Voltage:
-
220V/110V
-
Weight (KG):
-
246 KG
-
Model Number:
-
WP355B
-
Available welding diameter:
-
110-355 mm
-
Applicable Material:
-
PE, PP. PVDF
-
Weld Method:
-
Hydraulic Butt Fusion Welding Machine
-
Heating Plate Temperature:
-
3.6 KW
-
Planing tool:
-
1.1(220V)/0.75(380V) KW
-
Hydraulic station:
-
0.75(220V)/1.1(380V) KW
-
Pressure adjusting range:
-
0-16 MPa
-
Max Temperature of heating plate:
-
270degree
-
Temperature Deviation:
-
±5degree
Recommend Products
Product Overview

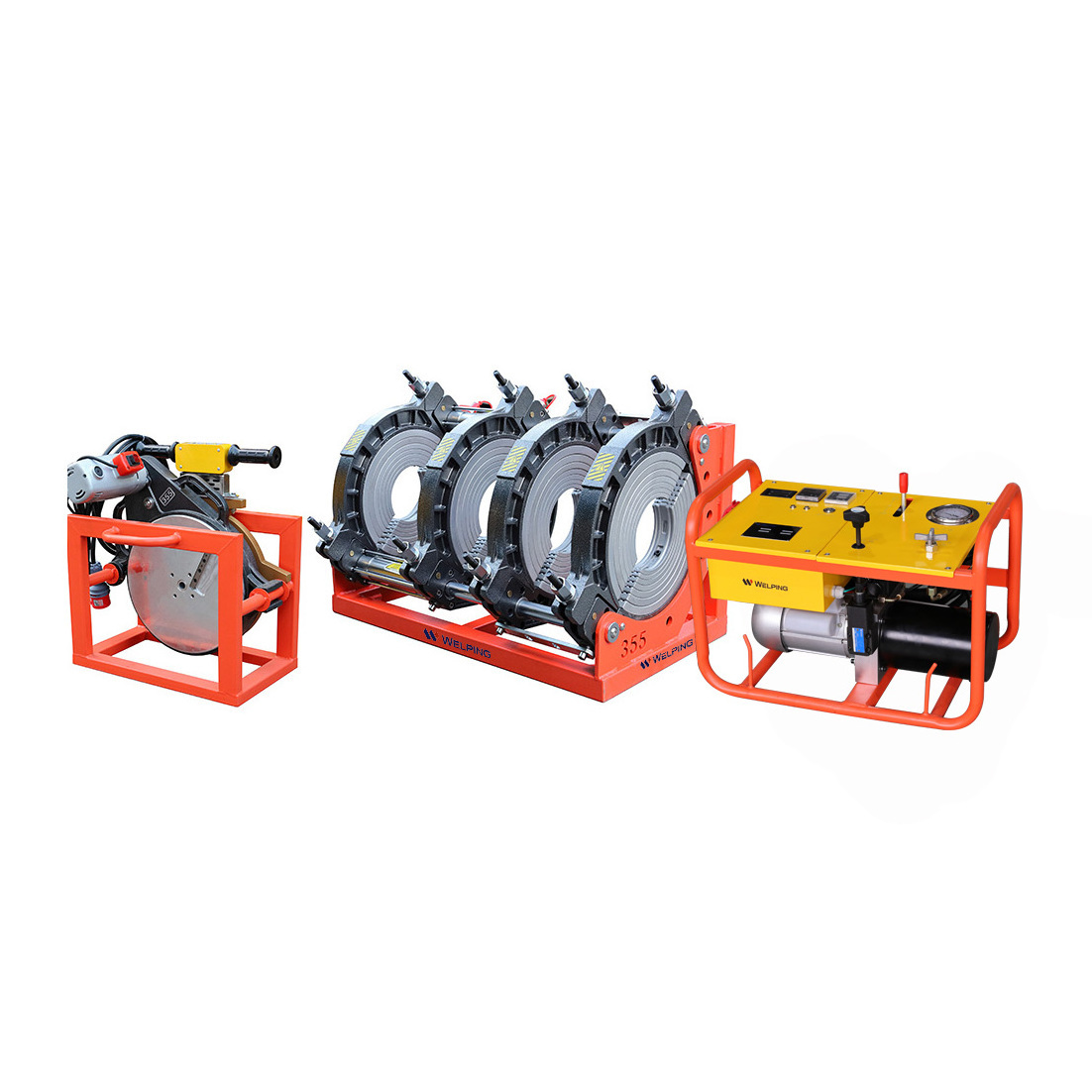

WP355B hydraulic butt fusion welding machine
Productiion Specifications
|
Model
|
WP355B
|
|
Suitable materials
|
PE,PP, PB. PVDF
|
|
Range
|
110-125-140-160-180-200-225-250-280-315-355 mm
|
|
Power supply
|
110V/220V
|
|
Frequency
|
50HZ
|
|
Total power
|
5.45 KW
|
|
Heating plate
|
3.6 KW
|
|
Planing tool
|
1.1 KW (220V)
0.75 KW (380V)
|
|
Hydraulic station
|
0.75 KW (220V)
1.1 KW (380V)
|
|
Pressure adjusting range
|
0-16 Mpa
|
|
Hydraulic oil
|
L-HM46
|
|
Max.Temperature of heating plate
|
270ºC
|
|
Temp.Deviation in Surface
|
±5ºC
|
|
Total Weight
|
246kg
|
|
Net weight
|
226kg
|
|
Basic Frame & planing tool & heating plate （plywood case）
|
93*61*69cm
|
|
Hydraulic Unit （plywood case）
|
87*70*75cm
|
WP355B hydraulic butt fusion welding machine
Products Description
Packing & Delivery
|
WP355B butt welding
|
Length (cm)
|
Width (cm)
|
Height (cm)
|
N.W.
|
G.W.
|
|
package 1
|
93
|
61
|
69
|
128
|
138
|
|
package 2
|
87
|
70
|
75
|
98
|
108
|
Applications
Workshop
