Product name	hdmi maxtrix 8X8
Color	Black
OEM	Yes
Quality	High quality

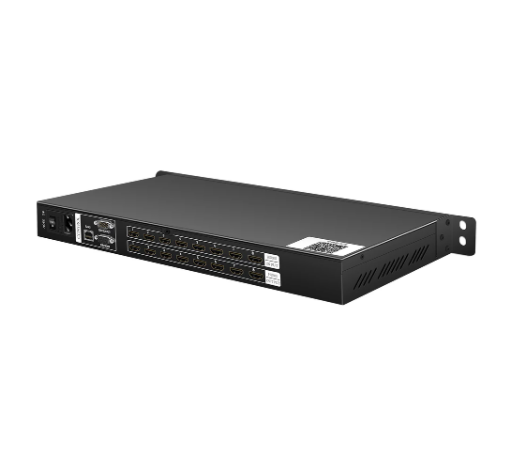

HDMI Matrix 8X8 Switch Switcher HD Video Aduio 8 In 8 Out 1080P HDMI 1.3 HDCP 1.3 EDID IP/Ethernet Control for PC System

Description:

This HDMI 8X8 matrix routes 8 HD sources to 8 HD displays with HDMI inputs. Each source can be routed to any display, using the front-panel buttons or the IR Remote Control. The matrix can also be controlled via RS-232. With smart EDID management, make it compatible with most of the HDMI source and sink devices.

This HDMI 8X8 matrix switching system is mainly used in broadcasting and television projects, multimedia conference halls, large-screen display projects, television, teaching, command and control centers and other occasions.

This product has functions such as power failure protection, LCD display, audio and video synchronization or separate switching, and has an RS232 communication interface, which can be conveniently used with personal computers, remote control systems or various remote control equipment and control systems.

Features:

Compliant with HDCP 1.3, HDMI1.3

Supports HDPC 1920x1200@60 ; HDTV:1920x1080@60

Each HDMI output can select same input or select standalone input.

Smart EDID management, make it compatible with most display devices.

Matrix status could be memorized after power down, automatically restore previous matrix status after next power on.

Easy control matrix via IR receiver, front keypad and PC (via RS232 port).

Easy to view real time inputs and outputs status via LED display.

Supports DVI-D single link sources and displays with the use of HDMI-to-DVI adapters.

Specifications:

Input port: HDMI x 8

Output port: HDMI x 8

Pixel bandwidth 165MHz, all digital

Interface bandwidth 2.25Gbps, all digital

Support maximum resolution HDPC: 1920x1200@60; HDTV: 1920x1080@60

Bit clock jitter <0.15 Tbit

Bit rise time <0.3Tbit (20%--80%)

Bit fall time <0.3Tbit (20%--80%)

Maximum transmission delay 5nS (±1nS)

Signal strength T.M.D.S. +/- 0.4Vpp

Minimum / maximum level T.M.D.S. 2.9V/3.3V

Impedance 50 Ω

EDID reading function

Maximum input distance: less than 35 meters

Maximum output distance: less than 10 meters

Serial control:

Serial control interface: RS-232, 9-pin female D-type interface and 9-pin male D-type interface

Baud rate and protocol: Baud rate: 9600, data bits: 8 bits, stop bits: 1, no parity bit

Serial control port structure:

9-pin female D-type interface: 2 = TX, 3 = RX, 5 = GND;

9-pin male D-type interface: 2 = RX, 3 = TX, 5 = GND

Package lists:

HDMI 8x8 matrix x 1

Remote control x 1

CAT 5e cable x 1

220V power cord x 1

Instruction manual x 1
