Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine
Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine

Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $3000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Anilox roller:
Metal Roller
Material:
Pe Opp Bopp Paper
Printing type:
Flexo Press
Keyword:
Flexografic Printing Machine
Doctor blade:
Optional
Plate Thickness:
2.28mm
Tension:
Magnetic Powder Breaker
Color:
red /white/blue

Quick Details

Place of Origin:
Zhejiang, China
Name:
Flexographic Film printer Machine
Application:
plastic Film ,Roll Paper ,
Anilox roller:
Metal Roller
Material:
Pe Opp Bopp Paper
Printing type:
Flexo Press
Keyword:
Flexografic Printing Machine
Doctor blade:
Optional
Plate Thickness:
2.28mm
Tension:
Magnetic Powder Breaker
Color:
red /white/blue
Product Description

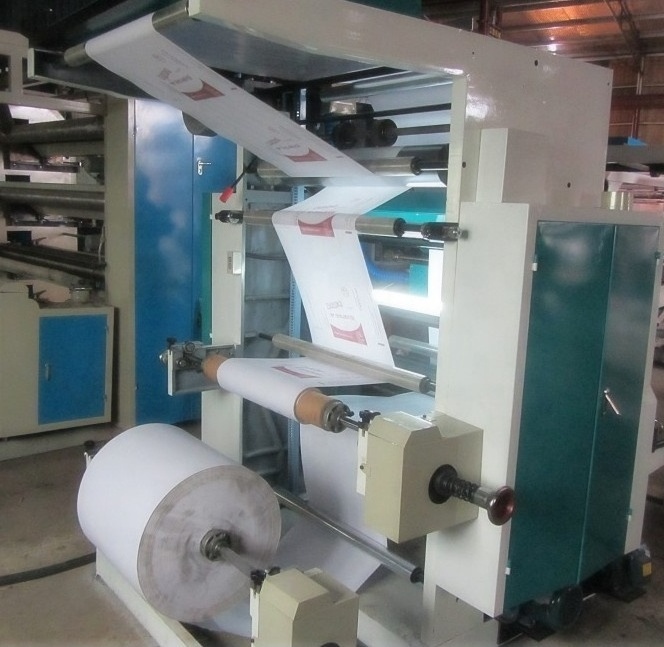

Hot sale Pe High Speed Tshirt Bag Flexographic Film printer Machine :

The Flexographic film Printer Machine is used to print such packing materials as polyethylene, polypropylene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, t-shirt bag and clothes bag, etc.

Performance and Characteristics:

1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity        or when the material is cut off.

3. The printing cylinder lift and lower, is will stir the printing ink automatically after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360°continuous and adjustable longitudinal register device.

7. The frequency control of motor speed adapts to different printing speeds.

8. There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

Model
YT-2-600
YT-2-800
YT-2-1000
Max printing width
560mm
760mm
960mm
Max Roll width
600mm
800mm
1000mm
Max printing length
180mm-1200mm
180mm-1200mm
180mm-1200mm
Printing Speed
0-60m/min
0-60m/min
0-60m/min
ACCuracy Of registration
±0.2mm
Thickness of plate
2.28mm
2.28mm
2.28mm
Raw Material
PE ,PP ,PVC ,POF ,CPP ,OPP, PET ,Paper
Main Motor
2.2KW
2.2kw
3kw
Inverter
2.2kw
2.2kw
3kw
ink motor
0.75
0.75
0.75
Total Power
8kw
10kw
12kw
Weight
1200KG
1600KG
2000KG
Overall dimession
2300x1600x2200
2300x1800x2200
2300x2000x2200
Products Show
Our Service
Our Company



Packing & Delivery





Our Certifications



Customer Photo

RSJ60-1100 Film Blowing Machine

Our India Client was checking the extruder testing , He is the engineer ,he use the machine to produce Pe heat shrinkable film for package bottles and make label


MB-2700 Three Layers Co-extruder Film Blowing Machine

our German Client visited us and checked the three layers Co-extruder Film Blowing Machine to produce Greenhouse Cover agriculture film with UV Protect .


DFHQ-500x2 High Speed Tshirt bag making machine

Our USA client visited us and checked the full automatic Tshirt bag making machine working and running process ,They are new in this field ,they stay here only 2 days to study and learn the machine operation !

YT-2-600 Flexo Printing Machine

Our South America client came to our factory to test the printing machine for plastic bag . He use the printing macine to do specilized printed by his client !
