Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-

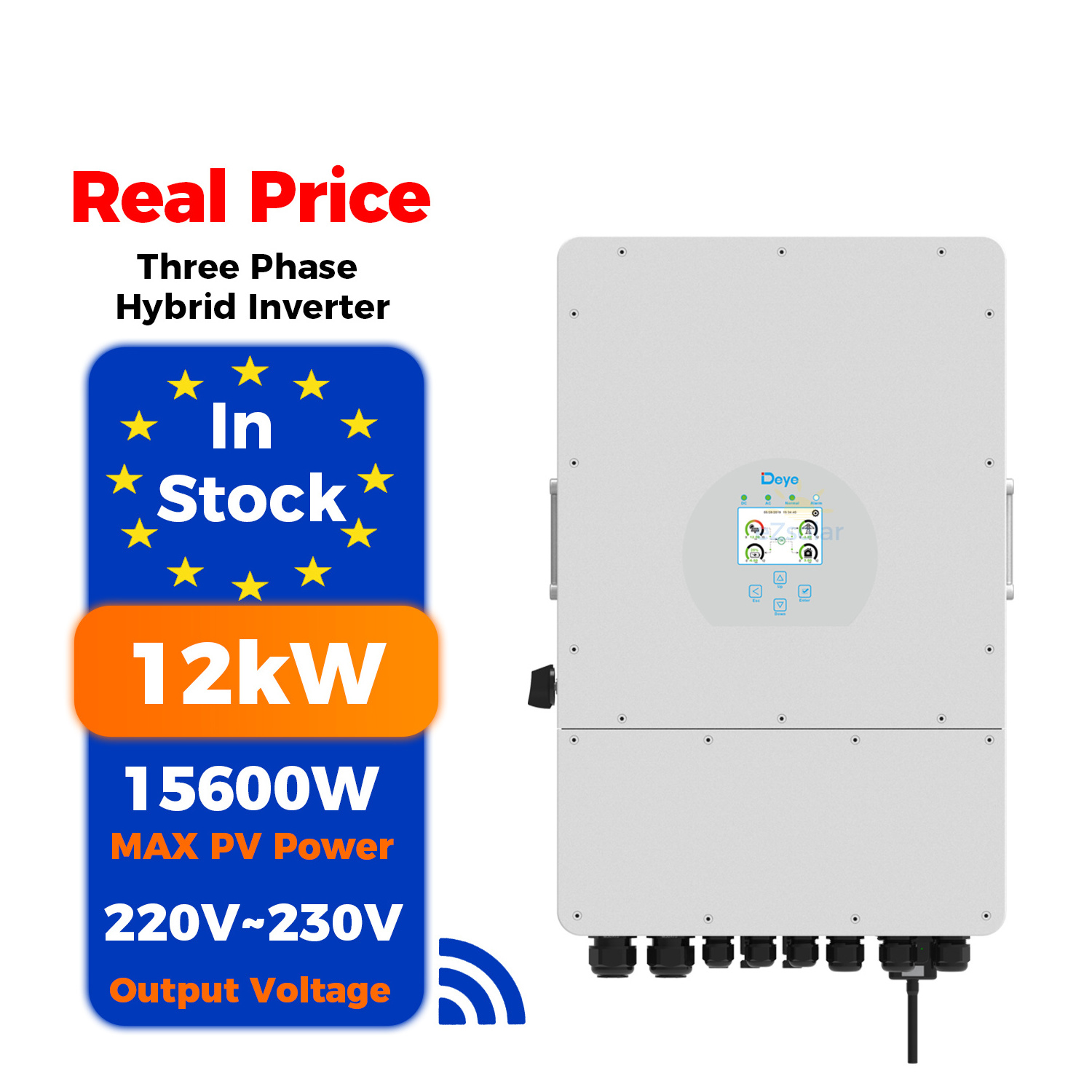

SUN-12K-SG04LP3-EU
-
Input Voltage:
-
350V-650V
-
Output Voltage:
-
230/400Vac (Three phase)
-
Output Current:
-
12-18A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
422W x 699.3H x279D mm
-
Certificate:
-
SAA/CE/TUV/VDE/CEI
-
Warranty:
-
5Years, 5 Years
-
Weight:
-
36.8KG
-
Product name:
-
Solar Inverter System
-
Norminal AC voltage; range [V]::
-
230/400Vac (Three phase)
-
Rated grid frequency(Hz)::
-
50/60
-
Displacement power factor::
-
0.8 leading ... 0.8 lagging
-
Cooling concept::
-
Natural
-
LCD display::
-
LED-2
-
Installation Style::
-
Wall-mounted
-
ommunication with BMS::
-
RS485; CAN
-
Protection Degree::
-
IP65
Quick Details
-
Output Type:
-
Three Phase
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
99.90%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Deye
-
Model Number:
-
SUN-12K-SG04LP3-EU
-
Input Voltage:
-
350V-650V
-
Output Voltage:
-
230/400Vac (Three phase)
-
Output Current:
-
12-18A
-
Output Frequency:
-
50 / 60Hz
-
Size:
-
422W x 699.3H x279D mm
-
Certificate:
-
SAA/CE/TUV/VDE/CEI
-
Warranty:
-
5Years, 5 Years
-
Weight:
-
36.8KG
-
Product name:
-
Solar Inverter System
-
Norminal AC voltage; range [V]::
-
230/400Vac (Three phase)
-
Rated grid frequency(Hz)::
-
50/60
-
Displacement power factor::
-
0.8 leading ... 0.8 lagging
-
Cooling concept::
-
Natural
-
LCD display::
-
LED-2
-
Installation Style::
-
Wall-mounted
-
ommunication with BMS::
-
RS485; CAN
-
Protection Degree::
-
IP65
We are
deye distributor
with
complete range of products and after sales service.
US, AU, EU versions
of the inverter are available.
But sale is prohibited in USA, Canada, Mexico, Puerto Rico.
|
Model
|
SUN-8K-SG04LP3-EU
|
SUN-10K-SG04LP3-EU
|
SUN-12K-SG04LP3-EU
|
|||
|
Battery Input Data
|
|
|
|
|||
|
Battery Type
|
Lead-acid or Lithium-ion
|
|
|
|||
|
Battery Voltage Range(V)
|
40~60V
|
|
|
|||
|
Max. Charging Current (A)
|
190A
|
210A
|
240A
|
|||
|
Max. Discharging Current (A)
|
190A
|
210A
|
240A
|
|||
|
Charging Curve
|
3 Stages / Equalization
|
|
|
|||
|
External Temperature Sensor
|
Optional
|
|
|
|||
|
Charging Strategy for Li-Ion Battery
|
Self-adaption to BMS
|
|
|
|||
|
PV String Input Data
|
|
|
|
|||
|
Max. DC Input Power (W)
|
10400W
|
13000W
|
15600W
|
|||
|
PV Input Voltage (V)
|
550V (160V~800V)
|
|
|
|||
|
MPPT Range (V)
|
200V-650V
|
|
|
|||
|
Start-up Voltage (V)
|
160V
|
|
|
|||
|
PV Input Current (A)
|
13A+13A
|
26A+13A
|
26A+13A
|
|||
|
No.of MPPT Trackers
|
2
|
|
|
|||
|
No.of Strings Per MPPT Tracker
|
1+1
|
2+1
|
2+1
|
|||
|
AC Output Data
|
|
|
|
|||
|
Rated AC Output and UPS Power (W)
|
8000W
|
10000W
|
12000W
|
|||
|
Max. AC Output Power (W)
|
8800W
|
11000W
|
13200W
|
|||
|
Peak Power (off grid)
|
2 times of rated power, 10 S
|
|
|
|||
|
AC Output Rated Current (A)
|
12A
|
15A
|
18A
|
|||
|
Max. AC Current (A)
|
18A
|
23A
|
27A
|
|||
|
Max. Continuous AC Passthrough (A)
|
50A
|
50A
|
50A
|
|||
|
Output Frequency and Voltage
|
50 / 60Hz; 400Vac (three phase)
|
|
|
|||
|
Grid Type
|
Three Phase
|
|
|
|||
|
Current Harmonic Distortion
|
THD<3% (Linear load<1.5%)
|
|
|
|||
|
Efficiency
|
|
|
|
|||
|
Max. Efficiency
|
97.60%
|
|
|
|||
|
Euro Efficiency
|
97.00%
|
|
|
|||
|
MPPT Efficiency
|
99.90%
|
|
|
|||
|
Protection
|
|
|
|
|||
|
PV Input Lightning Protection
|
Integrated
|
|
|
|||
|
Anti-islanding Protection
|
Integrated
|
|
|
|||
|
PV String Input Reverse Polarity Protection
|
Integrated
|
|
|
|||
|
Insulation Resistor Detection
|
Integrated
|
|
|
|||
|
Residual Current Monitoring Unit
|
Integrated
|
|
|
|||
|
Output Over Current Protection
|
Integrated
|
|
|
|||
|
Output Shorted Protection
|
Integrated
|
|
|
|||
|
Output Over Voltage Protection
|
Integrated
|
|
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|
|
|||
|
Certififications and Standards
|
|
|
|
|||
|
Grid Regulation
|
IEC61727, IEC62116, IEC60068, IEC61683, NRS 097-2-1
|
|
|
|||
|
Safety EMC/Standard
|
IEC62109-1/-2, IEC61000-6-1, IEC61000-6-3, IEC61000-3-11, IEC61000-3-12
|
|
|
|||
|
General Data
|
|
|
|
|||
|
Operating Temperature Range (℃)
|
-25~60℃, >45℃ Derating
|
|
|
|||
|
Cooling
|
Smart cooling
|
|
|
|||
|
Noise (dB)
|
<30 dB
|
|
|
|||
|
Communication with BMS
|
RS485; CAN
|
|
|
|||
|
Weight (kg)
|
36.8
|
|
|
|||
|
Size (mm)
|
422W×658H×281D
|
|
|
|||
|
Protection Degree
|
IP65
|
|
|
|||
|
Installation Style
|
Wall-mounted
|
|
|
|||
|
Warranty
|
5 years
|
|
|
|||
FAQ
1.Do you offer sample for testing purpose?
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
Yes,we do offer sample machine for testing.Please specify your requirements when contacting our agents.
2.What certificate do you have for micro inverters?
VDE 4105.EN50549-1.VDE0126-1-1.ABNT NBR 16149, ABNT NBR 16150, ABNT NBR 62116.RD1699. UNE 206006 IN, UNE 206007-1 IN, IEEE1547.Please double check with our agents for certificates.
3.Do you support OEM?
Yes, we do support OEM, however, there's requirement on quantities of your order.
4.What kind of shipment do you offer?
We offer land, sea and air freight upon your request. Fees varies.
5.How long does it take to receive goods I ordered?
For samples, the fastest you can receive is within one week. For bulk orders, dates may vary depending on quantity.
