Quick Details
-
Max. Spindle Speed (r.p.m):
-
1000 r.p.m
-
Spindle Bore(mm):
-
100mm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
No. of Spindles:
-
2
-
Max. Turned Length (mm):
-
3000
-
Travel (X Axis)(mm):
-
480 mm
-
Travel (Z Axis)(mm):
-
3120 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
5600x2250x2000
-
Brand Name:
-
BTMC
-
Model Number:
-
CK6180
-
Voltage:
-
380V 220V 415V 440V
-
Weight (KG):
-
5400
-
CNC or Not::
-
CNC
-
Automatic Grade::
-
Automatic
-
Machine Type::
-
Mini CNC Lathe Machine
-
Function::
-
Machining Metal
-
Name::
-
CNC Flat Bed Lathe Machine
-
Color::
-
As customers' request
-
Brand Name::
-
BTMC
-
CNC or Not:
-
CNC Automatic Lathe Machine
-
Machine Type:
-
Flat Bed CNC Lathe Machine
-
Keyword:
-
Automatic CNC Lathe Machine
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
3000
-
Year:
-
NEW
-
Max. Spindle Speed (r.p.m):
-
1000 r.p.m
-
Spindle Bore(mm):
-
100mm
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
11
-
No. of Spindles:
-
2
-
Max. Turned Length (mm):
-
3000
-
Travel (X Axis)(mm):
-
480 mm
-
Travel (Z Axis)(mm):
-
3120 mm
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
5600x2250x2000
-
Brand Name:
-
BTMC
-
Model Number:
-
CK6180
-
Voltage:
-
380V 220V 415V 440V
-
Weight (KG):
-
5400
-
CNC or Not::
-
CNC
-
Automatic Grade::
-
Automatic
-
Machine Type::
-
Mini CNC Lathe Machine
-
Function::
-
Machining Metal
-
Name::
-
CNC Flat Bed Lathe Machine
-
Color::
-
As customers' request
-
Brand Name::
-
BTMC
-
CNC or Not:
-
CNC Automatic Lathe Machine
-
Machine Type:
-
Flat Bed CNC Lathe Machine
-
Keyword:
-
Automatic CNC Lathe Machine

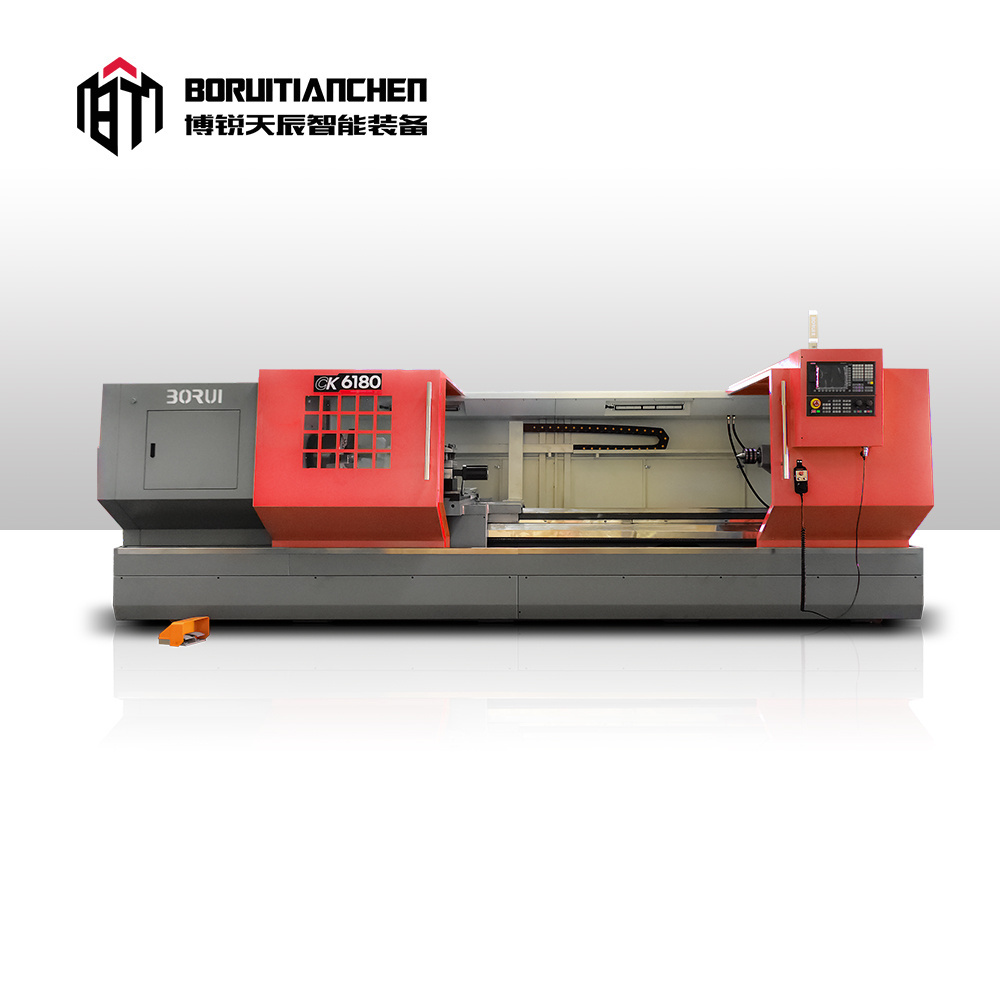

CK6180 CNC Flat Bed Lathe Machine
Product Description
Application:
This machine is widely used in processing and manufacturing the electrical appliance, instrumentation industry, automobile, motorcycle, fastener bearings, photographic and film machinery, hardware tools, watches, glasses, stationery, motors, valves and gas pipe and other high precise and complex components. It is the ideal high efficient equipment in the hardware machining industry.
Product main technical parameters:
|
Type
|
CK6180
|
|
|
The Scope Of Work
|
|
|
|
Max. Swing over bed
|
800mm
|
|
|
Max.Swing over cross slide
|
470mm
|
|
|
X-axis travel
|
480mm
|
|
|
Z-axis travel
|
1620mm/2210mm/3120mm
|
|
|
Bed Frame
|
|
|
|
Guideway width
|
600mm
|
|
|
Distance between centers
|
1500/2000/3000mm
|
|
|
Spindle
|
|
|
|
Spindle bore taper
|
Metric 1;20
|
|
|
Spindle taper
|
C11
|
|
|
Spindle bore
|
100mm
|
|
|
Spindle speed （manual.3steps）
|
40-125;110-350；290-950r/m
|
|
|
Spindle motor power
|
11kw
|
|
|
Chuck
|
400/3-jaw manual
|
|
|
Servo Axis
|
|
|
|
X-axis screw
|
3206
|
|
|
Z-axis screw
|
6310
|
|
|
Working Precision
|
|
|
|
Rapid feed rate
|
X-axis 8000mm/min
|
|
|
|
Z-axis 6000mm/min
|
|
|
Positioning accuracy
|
X-axis 0.01mm
|
|
|
|
Z-axis 0.01mm
|
|
|
Repeatability
|
X-axis 0.0075mm
|
|
|
|
Z-axis 0.01mm
|
|
|
Roundness
|
≤0.007mm
|
|
|
Diameter consistency
|
≤0.03mm/length 300mm
|
|
|
Flatness
|
≤0.02mm/diameter 300mm
|
|
|
Surface roughness (steel parts)
|
≤Ra 1.6m
|
|
|
Tailstock
|
|
|
|
Tailstock sleeve diameter
|
100mm
|
|
|
Tailstock sleeve travel
|
250mm
|
|
|
Tailstock center taper hole
|
MT6#
|
|
|
General Specifications
|
|
|
|
Height from bed foot to spindle center
|
1000mm
|
|
|
Machine size
|
5600x2250x2000
|
|
|
Weight
|
5400kg
|
|
