Quick Details
-
Certification:
-
CE & ISO
-
Max Cutting Force:
-
25T, 50T, Customizable
-
Working Table Dimension:
-
Customizable
-
Machine Color:
-
Customizable
-
Working Video:
-
Pls contact by skype: annielv8
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KUNTAI
-
Model Number:
-
KT-C
-
Certification:
-
CE & ISO
-
Max Cutting Force:
-
25T, 50T, Customizable
-
Working Table Dimension:
-
Customizable
-
Machine Color:
-
Customizable
-
Working Video:
-
Pls contact by skype: annielv8
Automatic Die Cutting Machine
EVA Sole Cutting Machine for Slippers
Hydraulic Travelling Head Cutting Press Machine

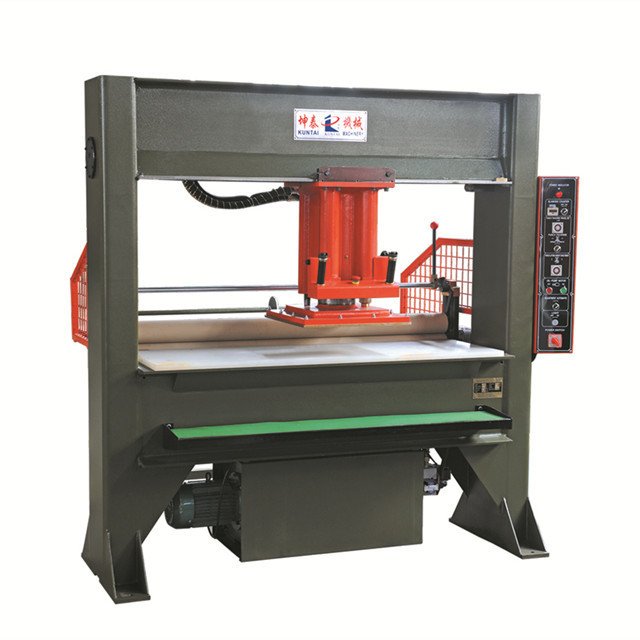

KT-C Hydraulic Travel Head Die Cutting Machine with Auto Feed System
Usage and Characteristics
1. Th is type of cutting machine s are widely used for continuous cutting applications of nonmetal materials in rolls , especially hard materials. S uch products as insoles, football, volleyball or tennis panels, car interior decoration materials and medical supplies are made by this machine .
2. S ervo motor makes accurate feeding possible and control s horizontal movement of the cutting head . M ultilayer s of materials can be clamped by the cylinder for step feeding. Other feeding methods are also available on request.
3. The feeding length can be easily set by the human-computer interface or PLC control panel (Optional).
4. Special hydraulic system makes low noise possible and saves oil.
5. High quality and imported oil pump and other parts are available on request.
6. Because the machine is well controlled by PLC control panel, only one worker is required for the whole operation. Therefore, the production effici ency of this kind of die cutting machine is 3 to 5 times that of a normal cutting machine and the power can be saved by about 2/3 .
7. Maximum cutting force of the die cutting machine caters to customer ’ s specific application requirements.
Reference Technical Data (Customizable)
|
Model |
KT-C Hydraulic Travel Head Die Cutting Machine |
|||||
|
Maximum C utting F orce (ton) |
25 |
25 |
25 |
50 |
50 |
50 |
|
Working T able ( mm ) |
1600*500 |
1800*500 |
2000*500 |
1600*500 |
1800*500 |
2000*500 |
|
T ravel H ead Size ( mm ) |
500*500 |
500*500 |
500*500 |
550*550 |
550*550 |
550*550 |
|
Adjustable S troke ( mm ) |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
5-150 |
|
Motor P ower (kw) |
2.2 |
2.2 |
2.2 |
4.0 |
4.0 |
4.0 |
|
Estimated Machine D imension (mm) |
2200*720*2000 |
2400*720*2000 |
2600*720*2000 |
2200*720*2000 |
2400*720*2000 |
2600*720*2000 |
|
Estimated G.W (kg) |
1800 |
2100 |
3000 |
3000 |
3800 |
5000 |
Hydraulic Travelling Head Cutting Press Machine Application:
Die Cutting Machine
Inner Package: Protective Film, etc
Outside Package: Plywood Case
- Machines well packed with protective film and loaded in plywood case or export container;
- English version operation manual and technical data;
- One-Year-Period wear parts;
- Tool ki t
