Quick Details
-
Voltage:
-
220V
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
1030*580*2130
-
Model Number:
-
WGZY-6-N
-
Power:
-
Electricity
-
Oxygen Concentration:
-
93+-3%
-
Application:
-
Medical Grade
-
Flow Rate(L/min):
-
100L/min
-
Control system:
-
PLC control
-
Oxygen tank:
-
6Nm3/h
-
Quantity of units:
-
10 units
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
China, Shandong
-
Brand Name:
-
WEGO
-
Production Rate:
-
1.6kw
-
Voltage:
-
220V
-
Weight:
-
150 KG
-
Dimension(L*W*H):
-
1030*580*2130
-
Model Number:
-
WGZY-6-N
-
Power:
-
Electricity
-
Oxygen Concentration:
-
93+-3%
-
Application:
-
Medical Grade
-
Flow Rate(L/min):
-
100L/min
-
Control system:
-
PLC control
-
Oxygen tank:
-
6Nm3/h
-
Quantity of units:
-
10 units
-
After-sales Service Provided:
-
Video technical support
|

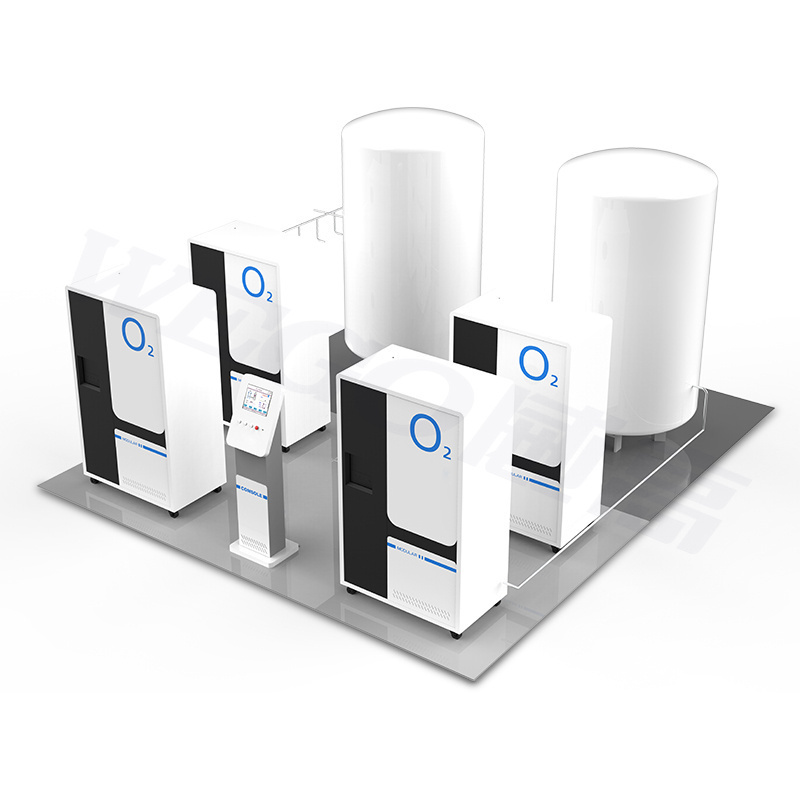

Medium Modular Oxygen Generator
|
|
|
|
|
|
|||||
|
Model
|
WGZY-10-N/Y
|
WGZY-12-N/Y
|
WGZY-18-N/Y
|
WGZY-24-N/Y
|
WGZY-30-N/Y
|
|||||
|
Oxygen flow rate
|
10 m
3
/h
|
12 Nm3/h
|
18 Nm3/h
|
24 Nm3/h
|
30 Nm3/h
|
|||||
|
Power
|
12 KW
|
16 KW
|
23 KW
|
30 KW
|
38 KW
|
|||||
|
Oxygen generation models
|
16 pcs
|
20 pcs
|
30 pcs
|
40 pcs
|
50 pcs
|
|||||
|
Booster
|
4 unit
|
4 unit
|
6 unit
|
8 unit
|
10 unit
|
|||||
|
Oxygen storage tank
|
External, Volume 3.0 m
3
|
External, Volume 4.0 m3
|
External, Volume 6.0 m3
|
External, Volume 8.0 m3
|
External, Volume 10 m3
|
|||||
|
Occupied area
|
20 ㎡
|
20 ㎡
|
24 ㎡
|
25 ㎡
|
35 ㎡
|
|||||
|
System Parameter
|
|
|
|
|
|
|||||
|
Oxygen concentration
|
≥93%±3%
|
Oxygen concentration monitoring
|
|
Built-in
|
|
|||||
|
Oxygen pressure
|
0.4 Mpa-0.7 Mpa
|
Pressure monitoring
|
|
Standard configutation
|
|
|||||
|
Power supply
|
AC380V/50Hz
|
Pressure monitoring
|
|
Standard configutation
|
|
|||||
|
Control system
|
PLC control
|
Oxygen tank
|
|
External
|
|
|||||
|
Human interface
|
13 inch touch screem
|
Remote monitoring system
|
|
Optional configutation
|
|
|||||
