Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts
-
Brand Name:
-
CLW
-
Model:
-
CLW5070XLCD-D
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5995X2050X2980
-
Box Dimensions (L x W x H) (mm):
-
4050X1820X1810mm
-
Temperature Range:
-
-18~0℃
-
Product name:
-
Small Refrigerator Car 5 tons Chill Car Refrigerated Truck Freezer
-
Chassis Brand:
-
JAC, JMC,Dongfeng etc.
-
Color:
-
White (customizable)
-
Certificate:
-
ISO CCC
-
Drive type:
-
4x2 LHD (RHD optional)
-
Loading capacity:
-
3 Tons
-
Refrigeration unit:
-
USA Thermo King Brand or Chinese brand
-
Engine:
-
XICHAI 65hp Engine
-
Insulation Material:
-
8cm Middle Polyfoam Insulation
-
Parts:
-
Stainless Steel, Aluminum Alloy
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 3
-
Gross Vehicle Weight:
-
6800
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts
-
Brand Name:
-
CLW
-
Model:
-
CLW5070XLCD-D
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5995X2050X2980
-
Box Dimensions (L x W x H) (mm):
-
4050X1820X1810mm
-
Temperature Range:
-
-18~0℃
-
Product name:
-
Small Refrigerator Car 5 tons Chill Car Refrigerated Truck Freezer
-
Chassis Brand:
-
JAC, JMC,Dongfeng etc.
-
Color:
-
White (customizable)
-
Certificate:
-
ISO CCC
-
Drive type:
-
4x2 LHD (RHD optional)
-
Loading capacity:
-
3 Tons
-
Refrigeration unit:
-
USA Thermo King Brand or Chinese brand
-
Engine:
-
XICHAI 65hp Engine
-
Insulation Material:
-
8cm Middle Polyfoam Insulation
-
Parts:
-
Stainless Steel, Aluminum Alloy

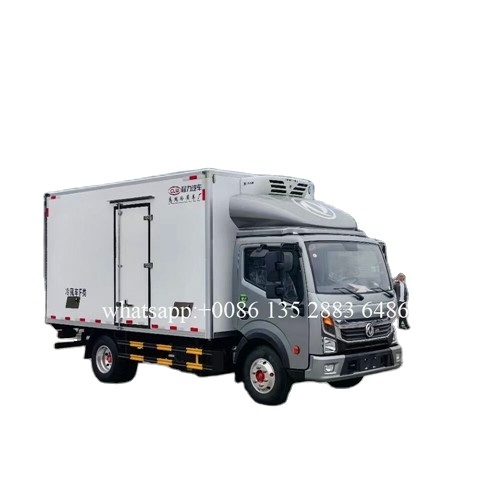

Dongfeng Small Refrigerator Car 5 tons Chill Car Refrigerated Truck Freezer
0 °C ~ + 22°C: For fruits, vegetable, packing room, medicine, communication Station
-5 °C ~ + 5 °C: Pre-Cooling, Keep Fresh,
-10 °C ~ -20 °C: Freezing usage, for example: fish, meat, etc.
-25 °C ~ -30 °C: Quick freezer
-35 °C ~ -40 °C: Blast Freezer, Quick-Freeze
Refrigerated truck is closed van used to transport the frozen or fresh goods,and is also kind of special
transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.
Transportation category:
is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug.
Construction:
chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage,for special
purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.
Refrigeration nuit classification:
non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using
external refrigerator,for a few mini refrigerated truck,using internal refrigerator.
Choice for insulated body:
good thermal insulation property,light weight,not easy to be damaged
|
General Description |
|||
|
Overall Dimension(mm) |
5995×1990×2900 |
Driving type |
4*2, Left hand drive |
|
Gross weight (kg) |
Appro*4995 |
Van Dimension |
4080×1810×1850 |
|
Net Weigt(kg) |
Appro*2800 |
Payload (kg) |
Appro*2195 |
|
Wheel base (mm) |
3308 mm |
Axle number |
2 |
|
Approaching/Departure Angle(°) |
20/14(°) |
F/R Axle load(kg) |
1890/3105 |
|
Passengers in cab |
2 |
Maximum speed(km/h) |
90 |
|
Number of Tyres |
6 (1 spare piece) |
Tyre type |
7.00-16 |
|
Front/Rear suspension(mm) |
1105/1582 |
Front/Rear track base (mm) |
1420,1580/ 1395 |
|
Transmission |
5 speed forward with 1 reverse, manual |
Fuel type |
Diesel |
|
Engine parameters |
|||
|
Brand |
Dongfeng |
Model |
YC4FA120-33 |
|
Displacement (L) |
2.351 L |
Emission Standard |
EURO III |
|
Power (kw/hp) |
80/120 |
Intake type |
Supercharged and mid-cooling |
|
Number of cylinders |
4 |
Cylinder spread pattern |
In-line |
|
Superstructure |
|||
|
1.The temperature is - 5 degree 2. Compartment thickness: 8mm, heat preservation performance meet the National Grade A standard. 3. Door case and door decoration, use stainless steel. 4 Famous China brand refrigeration unit. |
|||
