Feed machine Catfish food extruder machine pet food treat extruder machine for animal feed

Feed machine Catfish food extruder machine pet food treat extruder machine for animal feed

FOB Reference Price: Get Latest Price

≥1 Sets

US $1100

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 220V/380V

Dimension(L*W*H):: 1.36*1.95*0.84m

Weight:: 600 kg

Product name:: pet food treat extruder machine

Application:: Producing Animal Feeds Pellets

Raw material:: Grains, etc.

Capacity:: 0.05-2t/h

Processing Types:: Electricity

Final product:: Animal Feed Food

Pellet size:: 0-20mm

Packing:: Wooden Case Packaging

After Warranty Service:: Online support

Quick Details

Max. Capacity:: 2 ton/h

Place of Origin:: Henan, China

Brand Name:: KELLEN

Voltage:: 220V/380V

Dimension(L*W*H):: 1.36*1.95*0.84m

Weight:: 600 kg

Product name:: pet food treat extruder machine

Application:: Producing Animal Feeds Pellets

Raw material:: Grains, etc.

Capacity:: 0.05-2t/h

Processing Types:: Electricity

Final product:: Animal Feed Food

Pellet size:: 0-20mm

Packing:: Wooden Case Packaging

After Warranty Service:: Online support

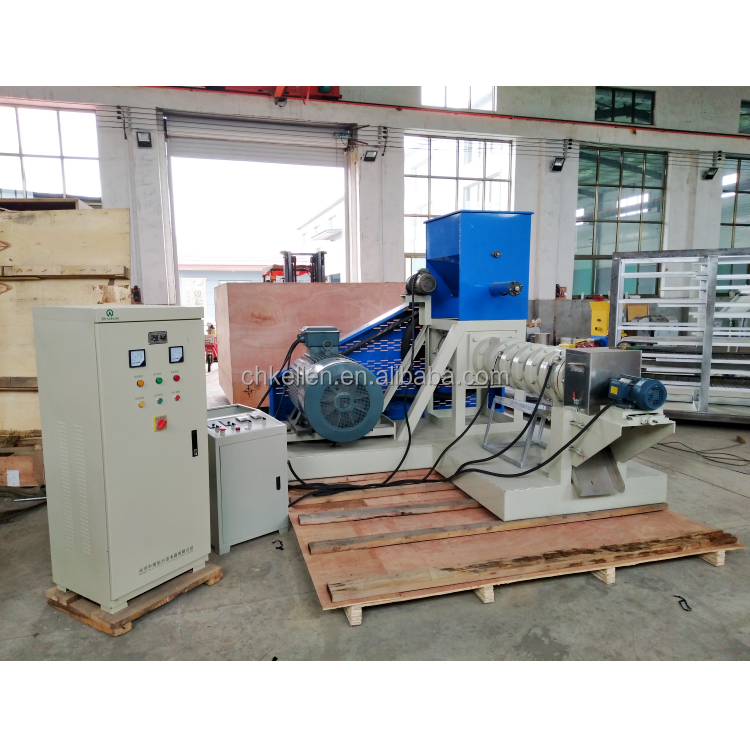

Pet Animal Food Puffing Extruder Machine

This equipment uses corn, soybeans, etc. as raw materials, directly added to the machine to produce pellets. The product is rich in nutrition and delicate in organization, and is suitable for feeds with different pet tastes such as dogs, cats, fish, birds, rabbits, shrimps, dogs, cats, minks, foxes, etc. It is suitable for farmers, small and medium-sized feed factories and research institutions.

Specifications

Model	Productivity	Main engine power	Feeding power	Spiral diameter	Cutting power
KGP-40	40-50kg/h	5.5kw(220v)	0.4kw	Φ40mm	0.4kw
KGP-50	80-90kg/h	11kw(380v)	0.4kw	Φ50mm	0.4kw
KGP-60	120-150kg/h	15kw(380v)	0.4kw	Φ60mm	0.4kw
KGP-70	180-200kg/h	18.5kw(380v)	0.4kw	Φ70mm	0.4kw
KGP-80	250-300kg/h	22kw(380v)	0.4kw	Φ80mm	0.4kw
KGP-100	400-500kg/h	37kw(380v)	1.1kw	Φ90mm	1.5kw
KGP-120	600-700kg/h	55kw(380v)	1.1kw	Φ120mm	2.2kw
KGP-135	750kg-900kg/h	75kw(380v)	1.1kw	Φ133mm	2.2kw
KGP-160	1000-1200kg/h	90kw(380v)	1.5kw	Φ160mm	2.2kw
KGP-200	1800-2000kg/h	110kw(380v)	2.2kw	Φ160mm	2.2kw

Advantages

1. It can produce particles of various shapes, and the mold can be customized according to requirements. 2. The discharge port is equipped with a frequency conversion speed regulating rotary cutting device, and the blade rotation speed is adjustable. 3. High production efficiency, simple structure, convenient operation and cost saving. 4. The particles have good puffing effect, the surface of the particles is smooth, and they can float on the water surface for more than 12 hours without sinking. 5. The screw sleeve and the screw are made of special alloy steel materials with long service life. 6. After the puffing treatment, the fragrance increases, which stimulates the appetite of animals and increases nutrition.

▶Products display

▶Product Details

Design of feeding hopper with enlarged feeding hopper

Equipped with independent motor

Simple to hold

Built-in T-type automatic stirring device

Heating puffing cavity

Equipped with high-strength material screw and screw sleeve

Install fast heating heater

Good puffing effect

Control Panel

Integrated control electric box

One key to control the switch of the whole machine

Control cutting, cutting knife, temperature control operation

Cutter device

Sliding table cutter design

Equipped with independent cutter motor, stable power

Adjustable handwheel

Can control the size of puffed particles

Applicable fields and raw materials

Pasture

Livestock breeding

Feed production plant

Aquaculture

Our production line

① Mixing machine— ② Feed extruder — ③ Drying machine— ④ Flavoring machine

1. Put the raw materials into mixing machine according to the formula ratio, add water to mix and stir. 2. Put the mixed raw materials into the hopper of the f eed extruder to make pellets. 3. Put the pellets into the drying machine and work regularly for uniform drying. 4. Put the dried pellets into the flavoring machine , add seasonings and stir. 5. Pack and sell finished product.

Of course, you can also add other machine to form a more automated production line.

①Mixing machine →②Screw elevator→③Feed extruder→④Pneumatic conveyor→⑤Multi-layer drying box→⑥ Flavoring machine

①Mixing machine →②Screw elevator→③feed extruder→④Pneumatic conveyor→⑤Multi-layer drying box→⑥Pneumatic conveyor→⑦ Automatic fuel injection machine →⑧Roller seasoning machine
