Quick Details
-
Grade:
-
200 Series
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
runtaida
-
Model Number:
-
FMH
-
Outer Diameter:
-
400mm
-
Material of flange:
-
Stainless steel304, 316
-
Standard of flange:
-
DIN JIS ANSI etc.
-
Material of bellow:
-
Stainless steel304, 316
-
Size:
-
DN8 ~ DN400mm
-
Length:
-
Customized
-
Working pressure:
-
PN10 - PN40
-
Drawing:
-
Offer
-
Certification:
-
ISO9001:2008
-
Brand:
-
RUNTAIDA
-
Product name:
-
wire mesh stainless steel flexible bellow metal flange braided hose
Quick Details
-
Type:
-
Flange
-
Steel Grade:
-
304N, 316L, 316
-
Tolerance:
-
±1%
-
Grade:
-
200 Series
-
Surface Finish:
-
2B
-
Invoicing:
-
by actual weight
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
runtaida
-
Model Number:
-
FMH
-
Outer Diameter:
-
400mm
-
Material of flange:
-
Stainless steel304, 316
-
Standard of flange:
-
DIN JIS ANSI etc.
-
Material of bellow:
-
Stainless steel304, 316
-
Size:
-
DN8 ~ DN400mm
-
Length:
-
Customized
-
Working pressure:
-
PN10 - PN40
-
Drawing:
-
Offer
-
Certification:
-
ISO9001:2008
-
Brand:
-
RUNTAIDA
-
Product name:
-
wire mesh stainless steel flexible bellow metal flange braided hose
Hot sale products
3. repair clamp
Pipe connection ss304 wire mesh stainless steel flexible bellow metal flange braided hose

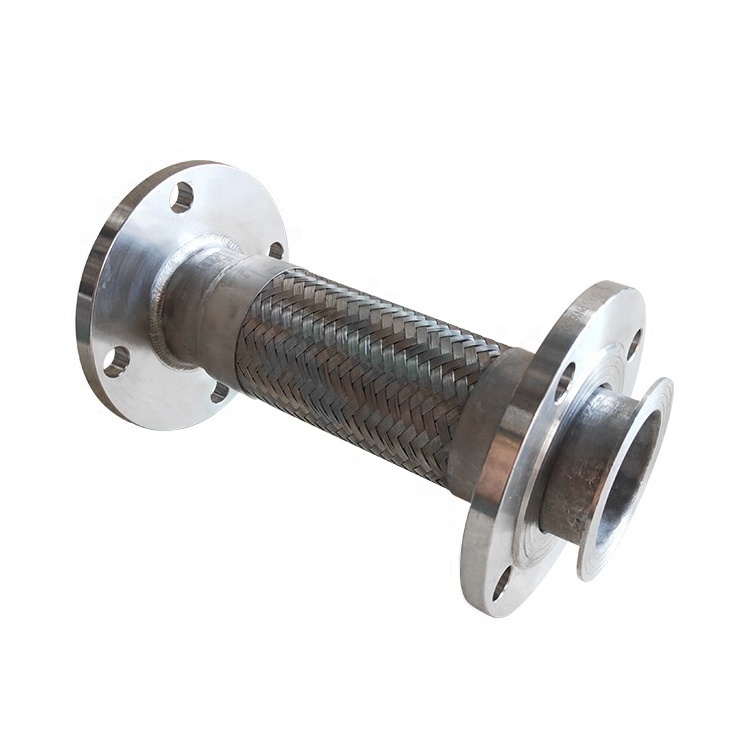

Flanged Flexible Metal Hose is a kind of flexible hose with high quality in modern industrial pipeline.The inner tube of metal bellows hose is spiral or annular thin-wall stainless steel bellows, the outer braid mesh of bellow pipe(corrugated pipe) is made of stainless steel wire and steel belt according to certain parameters,the joints or flanges on both ends of the hose are matched to the joint or flange of the customer's pipe.
Character of f
langed flexible metal hose
Flanged Flexible Metal Hose has good softness, anti-fatigue, high pressure resistant, high and low temperature resistant, corrosion resistant and other characters, comparing with other hoses(rubber and plastic hose),the service life of metal hose is much higher, so it has high comprehensive economical benefits.And wtih the development of modern industry, the demand for hig pressure resistance and high temperature resistant bellows metal hose (corrugated metal hose) is also increasing.
| Technical parameter of Flanged Flexible Metal Hose | |||||||
| Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 |
347.0 |
400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Datas above are only for reference,pls contact us for exact datas.
Here are our metal hose products. If you want to know more, please click here to consult us
Application range
Fully flexible conveying pipe ,conveying pipe for preventing vibration, conveying steam, coal gas, air, heavy oil, petroleum, chemical medicines etc.
