Quick Details
-
Brand Name:
-
Taramps
-
Model Number:
-
001961
-
Voltage:
-
12V
-
Light Source Type:
-
69 RGB LED EFFECTS
-
Product Name:
-
AUDIO MIXER T0302 FX MULTICOLOR
-
Application:
-
Audio Product
-
Function:
-
Built-in Effects
-
Type:
-
Professional Sound Audio Mixer
-
Color:
-
Customizable
-
Item:
-
Audio Speaker Loudspeaker
-
Use:
-
Nightclub Bar Recording Studio Stage
-
Feature:
-
ECHO EFFECT
-
Usage:
-
Digital Audio Mixer Console
-
Channel:
-
3 Channel
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
9 ~ 16 VDC
-
Place of Origin:
-
Sao Paulo, Brazil
-
Brand Name:
-
Taramps
-
Model Number:
-
001961
-
Voltage:
-
12V
-
Light Source Type:
-
69 RGB LED EFFECTS
-
Product Name:
-
AUDIO MIXER T0302 FX MULTICOLOR
-
Application:
-
Audio Product
-
Function:
-
Built-in Effects
-
Type:
-
Professional Sound Audio Mixer
-
Color:
-
Customizable
-
Item:
-
Audio Speaker Loudspeaker
-
Use:
-
Nightclub Bar Recording Studio Stage
-
Feature:
-
ECHO EFFECT
-
Usage:
-
Digital Audio Mixer Console
-
Channel:
-
3 Channel

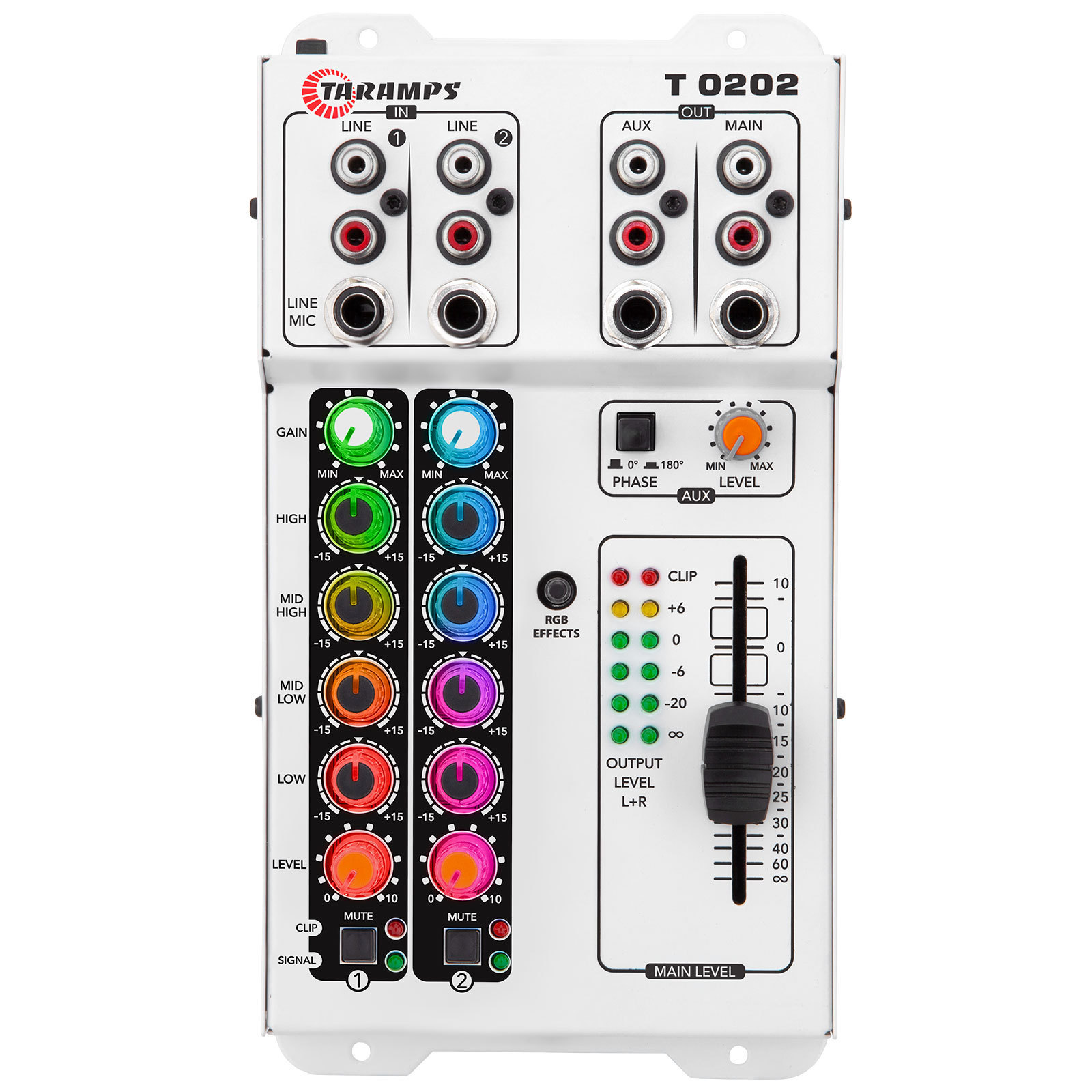

TARAMPS AUDIO MIXER T0202 MULTICOLOR SPECS
|
FREQUENCY RESPONSE (-3DB)
|
2Hz ~ 76KHz
|
|
TOTAL HARMONIC DISTORTION
|
<0,009% (T.H.D.)
|
|
SIGNAL-TO-NOISE RATIO (SNR)
|
112dB
|
|
INPUT SENSITIVITY
|
LINE (RCA) Min: 840 mV ~ Max 15.6 mV
LINE (RCA): Unbalanced - 10K Ohms |
|
4 EQUALIZATION BANDS PER CHANNEL
|
High ± 15dB (12KHz)
Mid High ± 15dB (2,5KHz) Mid Low ± 15dB (300Hz) Low ± 15dB (80Hz) |
|
INPUT IMPEDANCE
|
Line (RCA): Unbalanced - 10K Ohms
Line/MIC (P10): Unbalanced - 2.5K Ohms |
|
MAXIMUM VOLTAGE AT INPUTS WITHOUT DISTORTION
|
Line (RCA): 3 Vac
Line/MIC (P10): 1 Vac |
|
OUTPUT IMPEDANCE
|
Main Out: 47R
Aux Out: 47R |
|
MAXIMUM OUTPUT LEVEL
|
Main Out: 18 dBu/6.3 Vac
Aux Out: 18 dBu/6.3 Vac |
|
POWER SUPPLY VOLTAGE (POWER)
|
9 ~ 16 Vdc
|
|
MAXIMUM CONSUMPTION
|
600 mA
|
WHO WE ARE
In 1999 the creator and owner began creating acoustic audio boxes in his garage. Since then, what really started to attract attention was the power modification in existing amplifiers, as the intention was to design and develop more powerful amplifiers. As a result, the brand developed and gained notoriety in the Brazilian market, thus, with its popularity, we finally entered the American market, making the people fall in love with Taramps.
