Quick Details
-
Ultimate Strength (≥ MPa):
-
620-900 (H(TD04))
-
Elongation (≥ %):
-
8-20% (H(TD04))
-
Place of Origin:
-
China
-
Brand Name:
-
ALB Alloys
-
Model Number:
-
C17200, CuBe2, BeCu
-
Application:
-
Industrial
-
Width:
-
50mm-250mm
-
Grade:
-
Beryllium Copper
-
Product name:
-

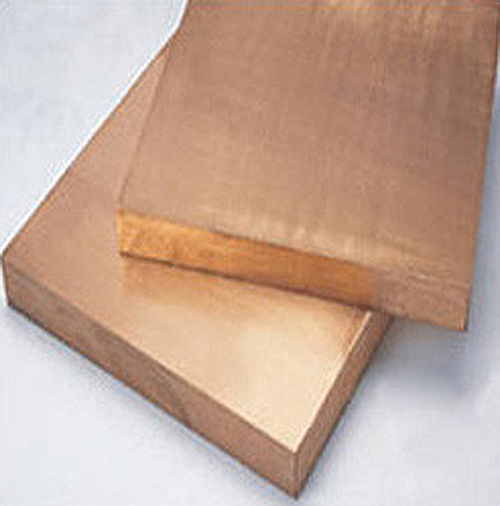

Beryllium Copper plates sheet price per kg BeCu material
-
Payment Term:
-
T/T
-
MOQ:
-
100kg
-
Package:
-
Wooden Package
-
Temper:
-
Soft 1/4H 1/2H/H
-
Size:
-
Customized Size
-
Delivery Time:
-
20-25 Days
-
Keyword:
-
beryllium copper
Quick Details
-
Material:
-
Bronze
-
Cu (Min):
-
97.0%
-
Alloy Or Not:
-
Is Alloy
-
Ultimate Strength (≥ MPa):
-
620-900 (H(TD04))
-
Elongation (≥ %):
-
8-20% (H(TD04))
-
Place of Origin:
-
China
-
Brand Name:
-
ALB Alloys
-
Model Number:
-
C17200, CuBe2, BeCu
-
Application:
-
Industrial
-
Width:
-
50mm-250mm
-
Grade:
-
Beryllium Copper
-
Product name:
-
Beryllium Copper plates sheet price per kg BeCu material
-
Payment Term:
-
T/T
-
MOQ:
-
100kg
-
Package:
-
Wooden Package
-
Temper:
-
Soft 1/4H 1/2H/H
-
Size:
-
Customized Size
-
Delivery Time:
-
20-25 Days
-
Keyword:
-
beryllium copper
|
Product Name
|
Beryllium Copper plates sheet price per kg BeCu material
|
|
Material
|
Beryllium Copper Alloys
|
|
Shape
|
Plates/ sheets
|
|
UNS/CDA
|
UNSC17200, CDA172
|
|
DIN
|
2.1247, CuBe2, CW101C
|
|
ASTM
|
B196, B251, B643
|
|
RWMA
|
Class4
|
|
Temper/Hardness
|
A(TB00), H(TD04), AT(TF00), HT(TH04)
|
Be: 1.80-2.00%
Co+Ni: 0.20% Min.
Co+Ni+Fe: 0.60% Max.
Others; 0.5% Max
Cu: Balance
Note:
Cu+Be+Co+Ni+Fe 99.5% minimum.
Density (g/cm3): 0.302Ib/in3 at 68F
Specific Gravity: 8.36g/cm3
Melting Point(Liquidus): 1800F
Melting Point(Solidus): 1600F
Electrical Resistivity:: 46.2 ohms/cmil/ft@68F
Electrical Conductivity: 22%IACS@68F(heat-treated)
Thermal Conductivity : 62.0Btu ft ata 68F
Modulus Elasticity in Tension: 18500ksi
Modulus Rigidity: 7300ksi
Note:
1).the units are based upon Metric.
2). the typical physical properties apply to age hardened products
