With crime on the rise we can provide you with affordable alternatives increasing your current security
and protecting your family
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Hengshi
-
Model Number:
-
05
-
product name:
-
anti climb fence
-
wire diameter:
-
3.2mm,3.5mm,4mm
-
Mesh size:
-
12.7x76.2mm,25x75mm
-
length:
-
2500mm,2900mm
-
height:
-
1200mm,1800mm,2400mm,etc
-
finish:
-
galvanized
-
Surface treatment:
-
color powder coated
-
Post type:
-
60x60mm,80x80mm.100X100mm
-
Packing:
-
metal pallet
-
feature:
-
anti cut ,anti climb
Quick Details
-
Frame Material:
-
Plastic
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Renewable Sources, Rodent Proof, Rot Proof, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Hengshi
-
Model Number:
-
05
-
product name:
-
anti climb fence
-
wire diameter:
-
3.2mm,3.5mm,4mm
-
Mesh size:
-
12.7x76.2mm,25x75mm
-
length:
-
2500mm,2900mm
-
height:
-
1200mm,1800mm,2400mm,etc
-
finish:
-
galvanized
-
Surface treatment:
-
color powder coated
-
Post type:
-
60x60mm,80x80mm.100X100mm
-
Packing:
-
metal pallet
-
feature:
-
anti cut ,anti climb

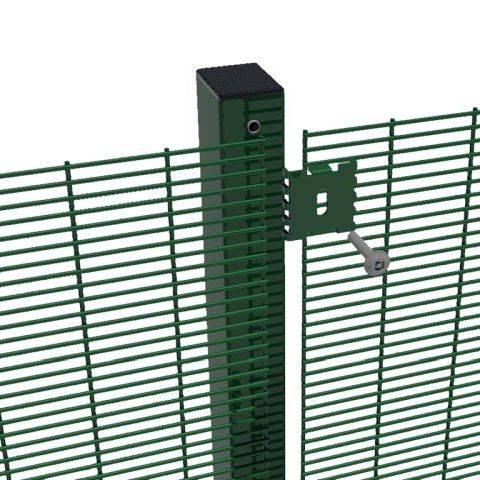

Product Description
· 358 tight mesh configuration offers no climbing aids
· Panel wires are welded at every intersection
· Mitigates attack by hand and powered tools through tight mesh design
· High visibility makes the 358 weld mesh ideal for use with CCTV cameras
· Difficult to cut with bolt croppers
· Extremely strong and robust
· Can be stepped to allow for installation on uneven ground
· Tamper-resistant fasteners
Concertina Wire & Spike
Technical Information
Panels
*The panels are 2515mm wide & heights range from 1200 mm to 3000mm
*
Mesh sizes are 76.2 x 12.7mm & manufactured from 4mm wires
*
Weld strength 75% of the minimum tensile strength of the wire
*
Toe & fingerproof mesh aperture
*
An anticlimb & anticut fence with excellent through visibility and resistance to vandalism
Coating
*
Panels are manufactured from pre-galvanised wires
*
An adhesion coating is applied to allow perfect adhesion with the polyester
* coating Posts are polyester coated with a galvanized substrate
* coating Posts are polyester coated with a galvanized substrate
Colours
Supplied in Green RAL6005 and Black RAL9005 as standard but other colours are available on request
Mesh sizes and tolerances
*
Distance between the centres of horizontal wires (cross wires): 12.7 ± 1 mm
*
Variations in mesh dimensions shall be maximum ± 1.5 mm per 1 meter length.
*
Distance between cross wire centres over 5.8 m length (max. cumulatedtolerance: ± 6mm)
*
Distance between the centres of vertical wires (line wires): 76.2 ± 2 mm
*
The variations in the mesh dimensions shall be not more than ± 3 mm over total width of panel
Clear Vu fence
· Clear Vu fencing is near impossible to climb, cut or saw through. This is because it is manufactured with small apertures.
· Visibility is virtually unobscured by the fencing increasing the performance of CCTV surveillance and guarding.
· Available in a variety of different heights. (Custom sizes are manufactured based on volumes required.)
· V-Bends in the fencing create strength and rigidity.
· All components are manufactured and coated in house ensuring uniformity and quality assurance.
Packing & Shipping
1> There is a piece of plastic film(with small bubbles), The first panel can be prevented from damaging the metal pallet
2>Metal plate is fixed at each corner of the panels, which can keep the panels stay together and immovable.
3> there is plastic film between two fence panels , which will prevent the friction and collision of each fence panel .
4> The wood plate on the panels can prevent the last panel from being damaged by top pallet
Application
Suitable applications include:
·Industrial / Commercial Sites
·Retail Complexes
· Medical Facilities
·Educational
· Recreational
·Farm Houses
· Correctional Facilities
· Housing Estates
· Residential homes and estates
