Product Description

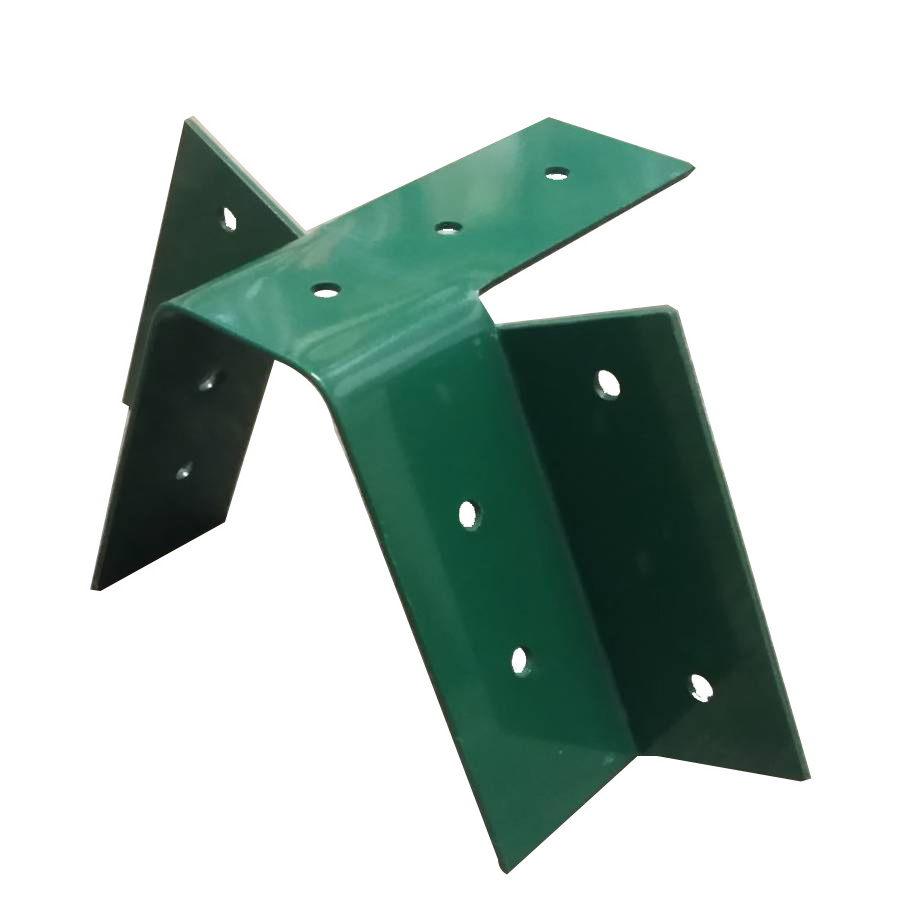

Heavy Durty A-Frame Swing Sets Bracket Playground Hardware Backyard Gungle Gym Park Green Swing Bracket
The Single Angle Elevators are built with 14-gauge plated steel and add additional support to any large or small platform project strong, sturdy, and wobble free. A set of 2 pre-drilled Single Angle Elevators create a steel-reinforced joint between a horizontal platform and 4×4 or 2×4 leg.
* Play Houses
* Porch Swing
* Children Swing
* Lifeguard Stations
* Observation Platform/Tower
* Raised Hunting Blind
* Canoe Rack
* Raised Poultry House
* Hunting Stands
Application
* Play Houses
* Porch Swing
* Children Swing
* Lifeguard Stations
* Observation Platform/Tower
* Raised Hunting Blind
* Canoe Rack
* Raised Poultry House
* Hunting Stands
Installation Instructions
Step One (Install Elevator brackets)
1.1- Lay the shadow hunter blind on its back
door side up. Prop the bottom front of the
blind up on a block. Carefull not to
scratch or bend the aluminum.
1.2- Measure 1 1/2" from each corner and
make a line. Use the Elevator to mark
and pre-drill 5/16" pilot holes to avoid
splitting the frame member. (Repeat all
4 sides)
Step Two
2.1- Remove any screws from the blind that
would keep the Elevator plate from
sitting flush.
2.2- Install the 2 1/2" carriage bolts in the top
two holes from the back or inside of the
2x6. Hit with a hammer to lock the bolt
into place. Add washers and tighten nuts.
(Do not over tighten)
3.1- Finish securing the brackets with 2" lag
screws in the bottom four holes to finish
mounting the brackets to the blind.
Step Four
4.1- Insert the 4x4 legs into the Elevators.
4.2- Hold the legs in place for the optimum
angle when tightening lag screws.
4.3- Secure the legs with 2" lag screws in
the front two holes and the outside hole.
4.4- Optional Access porch should be
installed at this time skip to 7.1 if you
decide to add the access porch.
Packing & Delivery
Loading and delivery.
TIME IS GOLD for you and for us. We have very professional delivery and we can feedback your inquiry quickly.
Our Company
Surealong Group Corporation
Professional
OEM ODM Factory
Of Providing High Quality Custom
Sheet Metal Fabrication,
stamping,deep drawing,laser cutting,welding,bending,plating,and assembly,the material include Steel,copper,Aluminium,stainless steel etc.,
Surealong founded in 2006,our workshop is 16000sqm,More than 130 skilled workers and over 10 senior engineers will work for you,and more important is we can provide professional technical services,We have been get TS16949,ISO9001,Rohs,CE etc.
Please send your details to
summer @surealong.com
Other Shelf Brackets
Contact US
SUREALONG GROUP CORPORATION
T：+86 10 87338783
M：+86 166 0113 0879
WECHAT/WHATSAPP: +86 166 0113 0879
QQ: 3285716899 SKYPE: janelei5
Email: summer @surealong.com
Website：
www.xunengsun.en.alibaba.com
http://www.surealong.com/
Add：Room 918, Yu Fei Building, Dongzhimen Street No. 42, Dongcheng District, Beijing, 100056, P.R. China.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional supplier of Sheet Metal Fabrication, Stamping, Deep Drawing, CNC Machining, Die Casting And Welding Services. Bracket is one of our main products.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
