Quick Details
-
Module:
-
m11-m112
-
Place of Origin:
-
Punjab, India
-
Brand Name:
-
DIC Tools
-
Model Number:
-
straightsplinehob01
-
Pressure angle:
-
20° , 30° ,37.5° , 45°
-
Accuracy:
-
AA, A
Quick Details
-
Type:
-
Gear Cutting Tools
-
Material:
-
HSS
-
Use:
-
Gear Hob
-
Module:
-
m11-m112
-
Place of Origin:
-
Punjab, India
-
Brand Name:
-
DIC Tools
-
Model Number:
-
straightsplinehob01
-
Pressure angle:
-
20° , 30° ,37.5° , 45°
-
Accuracy:
-
AA, A
Product Description

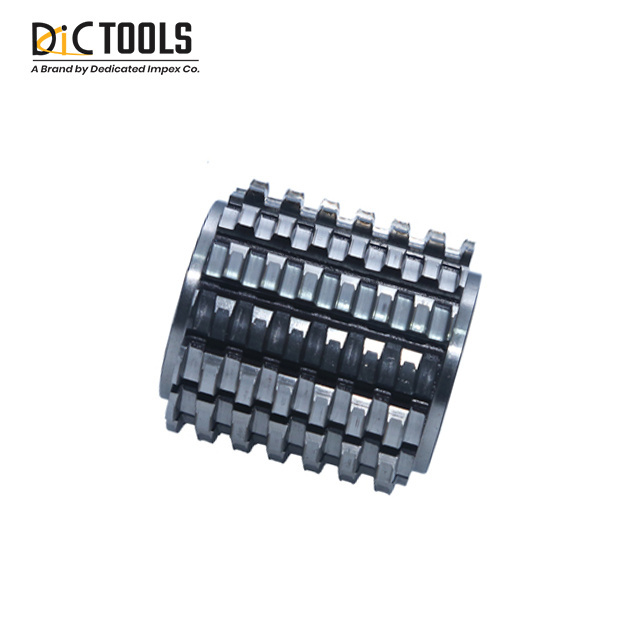

Straight Spline Gear Hob Cutter:-
We are Manufacturer and Exporter of Straight Spline Hob Cutters in module ranges from 11to 112. Our range undergo different quality parameters. Straight Spline Hobs are available in various forms like non-topping, semi-topping, topping, finishing, pre-shaving, pre-grinding, protuberance, full-fillet etc. The cutters are used for cutting parallel splines and are manufactured in single or multi start designs with pressure angle of 20 degree, 30 degree 37.5 degree and 45 degree.
Technical Specification
|
Product Name
|
Straight Spline Gear Hob Cutter
|
|
Material
|
HSS M2, M35, ASP 2030, ASP 2060
|
|
Start
|
Single Start or Multi-Start
|
|
Pressure Angle
|
20° , 30° , 37.5° , 45°
|
|
Outside Diameter
|
60 - 115
|
|
Standard
|
DIN 5480, 5481, 5482, ANSI
|
|
Module Range
|
11 to 112
|
|
Accuracy Class
|
AAA/AA
|
