Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
panda equipment
-
Dimension(L*W*H):
-
Other
-
Splitting hole Dia:
-
42mm to 48mm
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Mininum Drilling hole Depth:
-
400mm to 700mm
-
Actual Spltting Force:
-
600 tons
-
Rated Working Pressure:
-
55-63Mpa
-
Splitting Distance:
-
13-18mm
-
Delivery:
-
Air/Sea/Express
-
Advantage:
-
High Performance
-
Product name:
-
Rock Splitter
Quick Details
-
Weight (KG):
-
200
-
Core Components:
-
Other
-
Application:
-
Rock Splitting and Construction, Coal Mining,Quarry drilling,DTH drilling
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
panda equipment
-
Dimension(L*W*H):
-
Other
-
Splitting hole Dia:
-
42mm to 48mm
-
Splitting Parts Dia:
-
40.5mm to 45.5mm
-
Mininum Drilling hole Depth:
-
400mm to 700mm
-
Actual Spltting Force:
-
600 tons
-
Rated Working Pressure:
-
55-63Mpa
-
Splitting Distance:
-
13-18mm
-
Delivery:
-
Air/Sea/Express
-
Advantage:
-
High Performance
-
Product name:
-
Rock Splitter
The hydraulic rock and concrete splitter is a kind of hand-hold splitting and demolition tool. It can controllably split rock or concrete. Especially suit for cabined area where large machine can not work.
Such as hydraulic breaker and place where is strictly limited of noise, dust, flying debris, shake, exhaust gas, also widely use in the place where need non-explosive and blast forbidden.

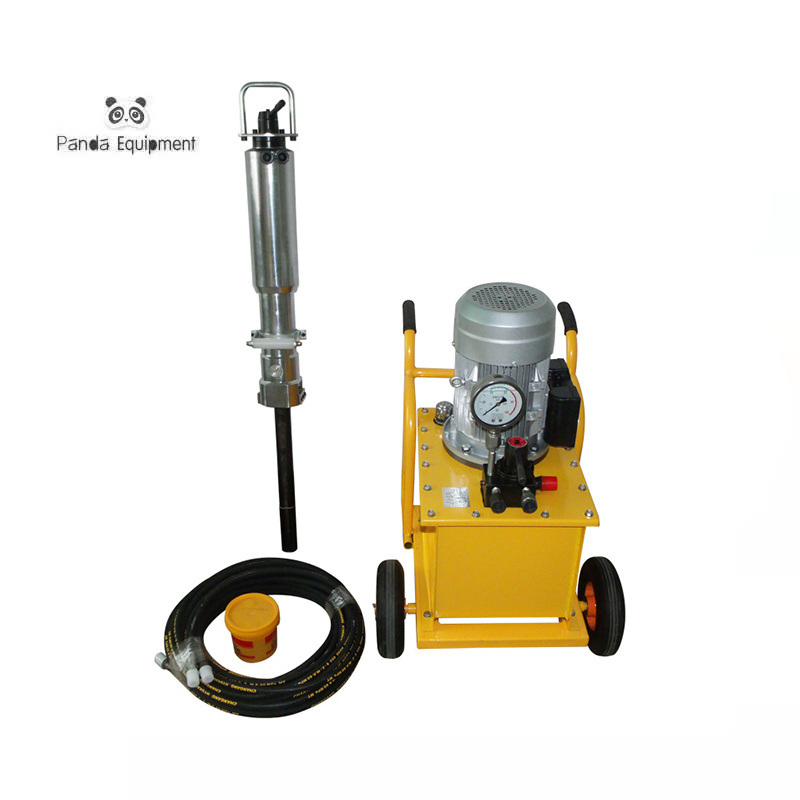

It is including Power Station and Cylinders.
Power Station
:
Including
Diesel & Electric & Gasoline
.
Cylinder (Gun)
:
Including
Aluminum & Steel
.
One Station can match 1-10 pieces cylinders.
Advantage of our hydraulic splitter:
Enormous splitting force up to 600 tons
Dust free and near silent operation
Vibration free
Light weight
Precision work
Always controllable
For use in close quarters and hard to access places
Easy handling
Different size counter wedge and center wedge can use on the same splitter.
One Station can match 1-10 pieces cylinders.
Advantage of our hydraulic splitter:
Enormous splitting force up to 600 tons
Dust free and near silent operation
Vibration free
Light weight
Precision work
Always controllable
For use in close quarters and hard to access places
Easy handling
Different size counter wedge and center wedge can use on the same splitter.
|
Model
|
Splitting hole Dia.(mm)
|
Splitting Parts Dia.(mm)
|
Splitting Effective Length (mm)
|
Mininum Drilling hole Depth (mm)
|
Actual Spltting Force (Ton)
|
Rated Working Pressure (Mpa)
|
Splitting Distance (mm)
|
|
PA150
|
42-44
|
40.5
|
150
|
400
|
600
|
55.63
|
13-18
|
|
PA250
|
42-44
|
40.5
|
250
|
500
|
600
|
55.63
|
13-18
|
|
PA350
|
46-48
|
44.5
|
350
|
600
|
600
|
55.63
|
13-18
|
|
PA450
|
46-48
|
44.5
|
450
|
700
|
600
|
55.63
|
13-18
|
Power Station:
DIESEL
ELECTRIC
GASOLINE
Different Cylinders Materials:
ALUMINUM
Lighter, around 35kg per piece, a little more expensive than steel, the most popular one among customers.
C12
Also made by aluminum, but high performance. More similar with DARDA original.
STEEL
Around 45kg per piece, the most cheapest among the three materials. Also popular among customers.
