Quick Details
-
Brand Name:
-
ZTAO
-
Model Number:
-
MDR-60-12
-
Output Frequency:
-
50~60Hz
-
Output Current:
-
5A
-
Product Name:
-

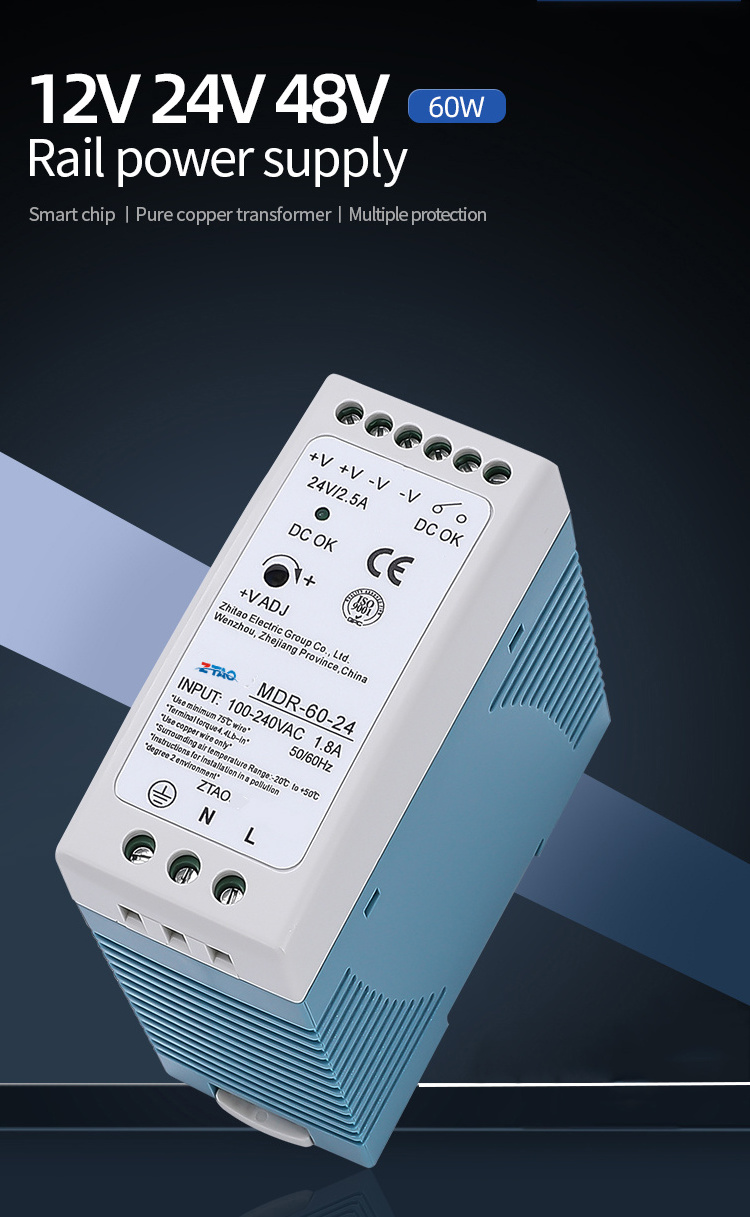

60w 24v Smps 5v 10a 12v 5a 24v 2.5a Switching Power Supply for Led
-
Warranty:
-
3 Years
-
Protection:
-
OCP OVP SCP OPP
-

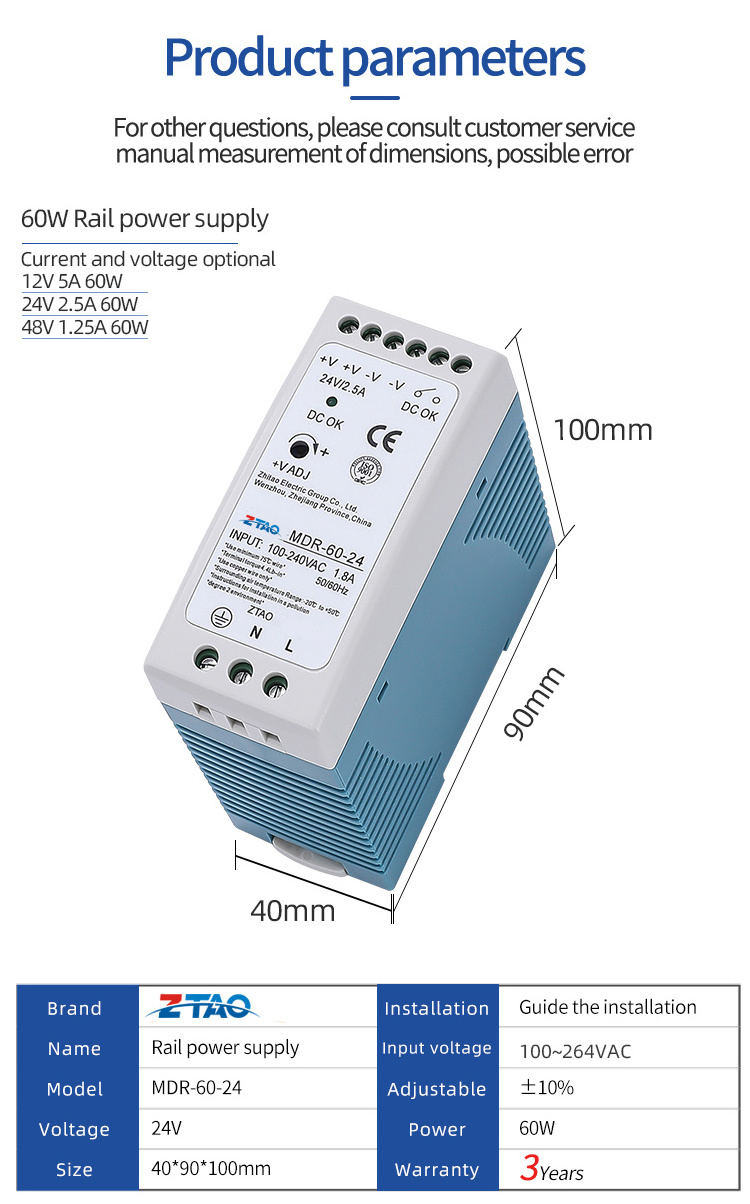

Size:
-
40*90*100mm
-
Output:
-
Customer's Requests
-
Feature:
-
Low Power Consumption
-
MOQ:
-
1 Piece
-
Test:
-
100%Full Load Burn-in Test
-
Certification:
-
CE FCC ROHS
-
Keyword:
-
Switching Power Supply
Quick Details
-
Input Voltage:
-
100~264VAC 140~370VDC
-
Output Voltage:
-
12V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZTAO
-
Model Number:
-
MDR-60-12
-
Output Frequency:
-
50~60Hz
-
Output Current:
-
5A
-
Product Name:
-
60w 24v Smps 5v 10a 12v 5a 24v 2.5a Switching Power Supply for Led
-
Warranty:
-
3 Years
-
Protection:
-
OCP OVP SCP OPP
-
Size:
-
40*90*100mm
-
Output:
-
Customer's Requests
-
Feature:
-
Low Power Consumption
-
MOQ:
-
1 Piece
-
Test:
-
100%Full Load Burn-in Test
-
Certification:
-
CE FCC ROHS
-
Keyword:
-
Switching Power Supply
Product Description
|
Model
|
EDR-60-12
|
MDR-60-24
|
MDR-60-48
|
||||
|
DC Voltage
|
5V
|
12V
|
24V
|
48V
|
|||
|
Rated Current
|
10A
|
5A
|
2.5A
|
1.25A
|
|||
|
Current range
|
0~10A
|
0~5A
|
0~2.5A
|
0~1.25A
|
|||
|
Rated power
|
50W
|
60W
|
60W
|
60W
|
|||
|
Ripple&noise
|
80mVp-p
|
120mVp-p
|
150mVp-p
|
200mVp-p
|
|||
|
Voltage ADJ.
|
5~6V
|
12~15V
|
24~30V
|
48~56V
|
|||
|
Efficiency
|
78%
|
86%
|
88%
|
87%
|
|||
|
|
105%~150% rated output power
|
|
|
|
|||
|
|
Protection mode: constant current limit, automatic recovery after removal of abnormal load conditions
|
|
|
|
|||
|
|
6.25~7.25V
|
15.6~18V
|
31.2~36V
|
57.6~64.8V
|
|||
|
|
Protected mode: turn off the output and restore the normal output after the power is restarted
|
|
|
|
|||
