- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
3.06
-
Air flow:
-
1500
-
Inlet:
-
12
-
Outlet:
-
19
-
air volume:
-
2*3500
-
Air throw:
-
6
-
Weight:
-
25Kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
air cooler/evaporator
-
Color:
-
White
-
Capacity:
-
3.06
-
Air flow:
-
1500
-
Inlet:
-
12
-
Outlet:
-
19
-
air volume:
-
2*3500
-
Air throw:
-
6
-
Weight:
-
25Kg
Product Overviews

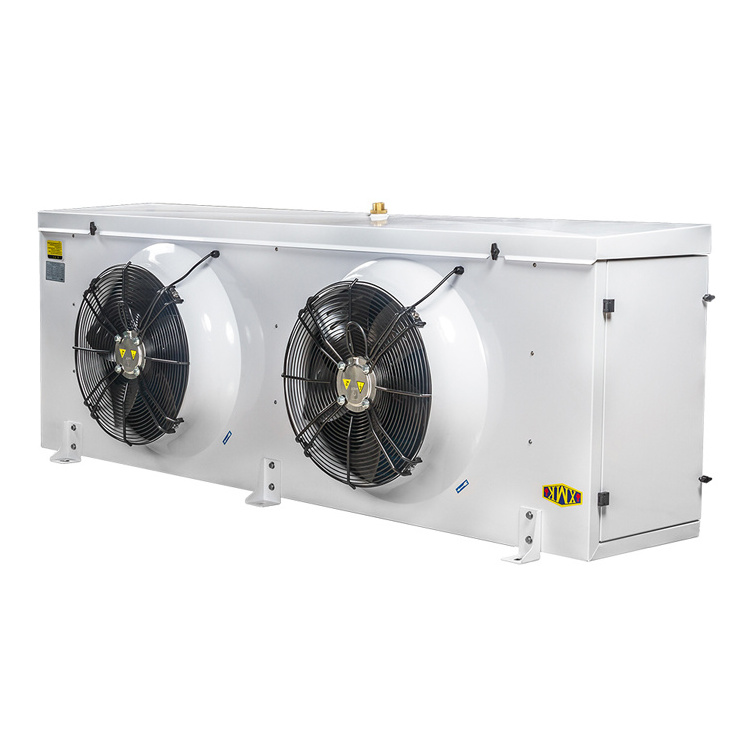

Walk In Cooler Condensing Unit And Evaporator For Cold Room
Product Description
| Air Cooler Data 4.2mm fin | |||||||||
| Model |
R404A(KW)
Capacity |
surface |
Tube
volume |
Air
flow |
Air
throw |
Connection pipe
(mm) |
|||
| Tc=0℃ | Tc=-18℃ | m2 | dm3 | m3/h | m | inlet | outlet | drain | |
| ΔΤ=8K | ΔΤ=7K | ||||||||
| Fan 300 | |||||||||
| CS11/130M-ES | 2.63 | 2.1 | 10.5 | 2.1 | 1700 | 6 | φ12 | φ19 | G1 |
| CS10/130M-ES-B | 1.66 | 1.33 | 10.4 | 1.8 | 1800 | 6 | φ12 | φ19 | G1 |
| CS14/130M-ES | 3.06 | 2.44 | 13.9 | 2.8 | 1500 | 5 | φ12 | φ19 | G1 |
| CS15/130M-ES-B | 2.1 | 1.68 | 15 | 2.6 | 1700 | 5 | φ12 | φ19 | G1 |
| CS21/230M-ES | 5.26 | 4.2 | 21 | 4.1 | 3400 | 8 | φ12 | φ19 | G1 |
| CS21/230M-ES-B | 3.32 | 2.65 | 20.7 | 3.2 | 3600 | 8 | φ12 | φ19 | G1 |
| CS28/230M-ES | 6.12 | 4.9 | 27.9 | 5.5 | 3000 | 7 | φ12 | φ22 | G1 |
| CS28/230M-ES-B | 3.86 | 3.1 | 27.6 | 4.8 | 3400 | 7 | φ12 | φ22 | G1 |
| CS42/330M-ES | 9.18 | 7.34 | 41.9 | 8.1 | 4500 | 10 | φ16 | φ28 | G1 |
| CS56/430M-ES | 12.2 | 9.76 | 55.9 | 10.6 | 6000 | 12 | φ16 | φ28 | G1-1/2 |
