- Product Details
- {{item.text}}
Quick Details
-
Crimp form:
-
Hexagonal confining pressure
-
Gross weight:
-
4.5KG
-
Net weight:
-
2.85KG
-
Crimping range:
-
10~120mm²
-
Hydraulic stroke:
-
12mm
-
Product name:
-
Manual hydraulic pliers
-
Material:
-
Steel
Quick Details
-
Place of Origin:
-
Zhejiang China
-
Output:
-
8T
-
Mold configuration:
-
10,16,25,35,50,70,95,120
-
Crimp form:
-
Hexagonal confining pressure
-
Gross weight:
-
4.5KG
-
Net weight:
-
2.85KG
-
Crimping range:
-
10~120mm²
-
Hydraulic stroke:
-
12mm
-
Product name:
-
Manual hydraulic pliers
-
Material:
-
Steel
Product Description
Integral manual hydraulic pliers
Adjustable oil return valve high-strength pliers.
Crimping range: 4~300mm²
Crimping does not fall off, easy crimping.
Product Parameters
|
Product model:
|
YQK-70
|
|
Output:
|
6T
|
|
Stroke:
|
10mm
|
|
Gross weight/net weight:
|
3/1.8KG
|
|
Crimping range:
|
4~70mm²
|
|
Mold configuration:
|
4,6,10,16,25,35,50,70
|
|
Product model:
|
YQK-120
|
|
Output:
|
8T
|
|
Stroke:
|
12mm
|
|
Gross weight/net weight:
|
4.5/2.85KG
|
|
Crimping range:
|
10~120mm²
|
|
Mold configuration:
|
10,16,25,35,50,70,95,120 (4.6.8 molds can be added)
|
|
Product model:
|
YQK-240
|
|
Output:
|
10T
|
|
Stroke:
|
15mm
|
|
Gross weight/net weight:
|
6.2/3.5KG
|
|
Crimping range:
|
16~240mm²
|
|
Mold configuration:
|
16,25,35,50,70,95,120,150,185,240 (4.6.8.10 molds can be added)
|
|
Product model:
|
YQK-300
|
|
Output:
|
10T
|
|
Stroke:
|
17mm
|
|
Gross weight/net weight:
|
7/4KG
|
|
Crimping range:
|
16~300mm²
|
|
Mold configuration:
|
16,25,35,50,70,95,120,150,185,240,300 (4.6.8.10 molds can be added)
|
Product Features
●Hydraulic crimping for power cable conductors, tight and good electrical conductivity, not easy to fall off and conduct heat.
●Double-speed oil pump core, the crimping is more labor-saving, and the improved and upgraded plunger seals tightly and does not leak oil.
●The crimping head can be freely rotated 180 degrees, so it can work in narrow places.
●The rubber-plastic insulating rod can prevent accidental electric shock.
Product Details
01-Oil return switch design
Tighten it in the "ON" direction when pressurizing,
start to move the handle, and automatically reset to "OFF" after the end.
02-Hexagonal confining form, tight crimp
When crimping, choose the same specification of terminal
and crimping die to use, the crimping is easy and tight
and more assured.
03-Bold two-speed oil pump core
Two-speed oil inlet design, the plunger adopts multiple
anti-leakage oil seals, which saves time and effort
and is more durable.

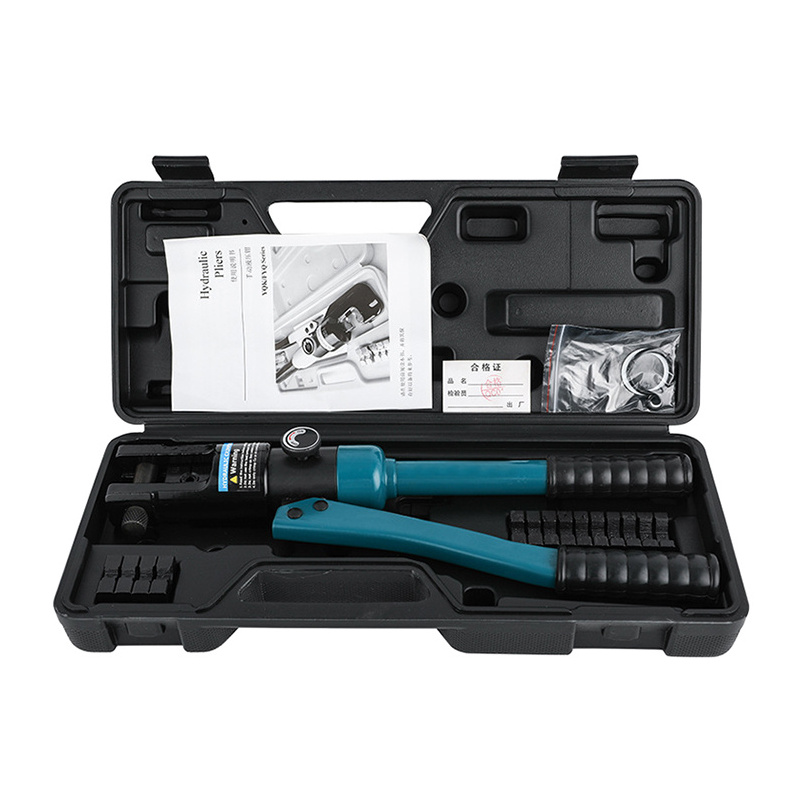

Packaging Display
