Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JIECANG
-
Model Number:
-
JC35W2
-
Torque:
-
1
-
Product Name:
-
JC35W2
-
Dynamic load push:
-
3000N/2000N/1000N
-
Dynamic load pull:
-
3000N/2000N/1000N
-
Colour:
-
Silver gray
-
IP Grade:
-
IPX4
-
Stroke Length:
-
50-250mm
-
Noise Level:
-
≤48dB
-
Limit Switch:
-
Built-in (electrical)
-
Weight:
-
About 1.7kg
Quick Details
-
Speed(RPM):
-
1
-
Continuous Current(A):
-
1A
-
Efficiency:
-
IE 1
-
Place of Origin:
-
China
-
Brand Name:
-
JIECANG
-
Model Number:
-
JC35W2
-
Torque:
-
1
-
Product Name:
-
JC35W2
-
Dynamic load push:
-
3000N/2000N/1000N
-
Dynamic load pull:
-
3000N/2000N/1000N
-
Colour:
-
Silver gray
-
IP Grade:
-
IPX4
-
Stroke Length:
-
50-250mm
-
Noise Level:
-
≤48dB
-
Limit Switch:
-
Built-in (electrical)
-
Weight:
-
About 1.7kg
Recommend Products

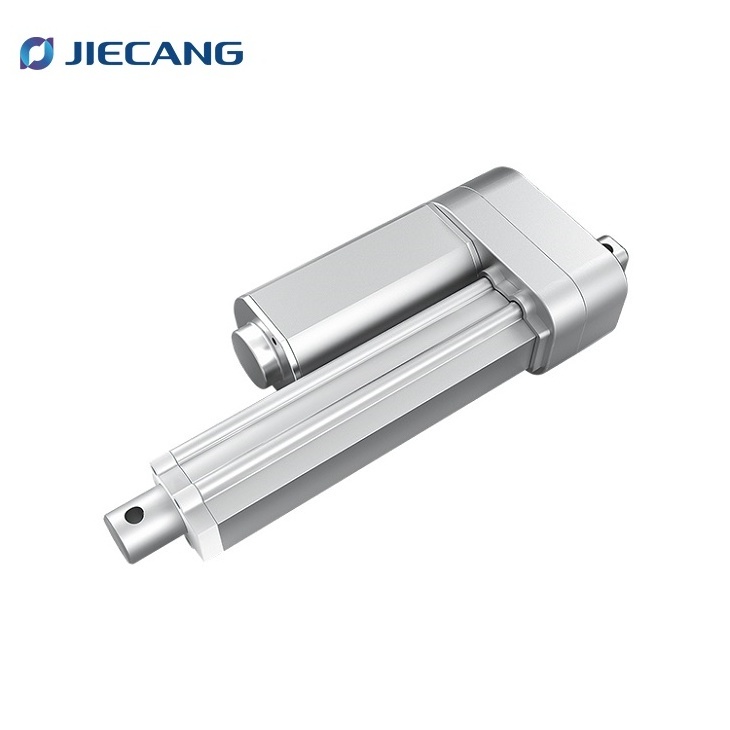

JIECANG JC35W2 24V 50mm Stroke 3000N Load Position Feedback Electric Linear Actuator
Product Description
Specification
|
Dynamic Load Push(N)
|
1000
|
2000
|
3000
|
||
|
Dynamic Load Pull(N)
|
1000
|
2000
|
3000
|
||
|
Self-Locking Force(N)
|
1000
|
2000
|
3000
|
||
|
Input Voltage(VDC)
|
24/12
|
|
|
||
|
Max.Speed at Full load(mm/s)
|
14
|
8.5
|
5
|
||
|
Stroke Length(mm)
|
50～400
|
|
50~250
|
||
|
Limit Switch
|
Built-in
|
|
|
||
|
Duty Cycle
|
10%，max 2 min. Continuous use
|
|
|
||
|
IP Grade
|
IP54/IP66
|
|
|
||
|
Ambient Temperature
|
0℃+50℃
|
|
|
||
|
Options
|
Hall sensor
|
|
|
||
|
Certification Standards
|
CE/UL
|
|
|
||
Application
