Quick Details
-
Pulling force:
-
300KN
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Clamping envelope:
-
1100mmx300mm
-
Pulling force:
-
300KN
|
FRP BLG-11030 20T-A pultrusion machine The machine includes: |
|||
| Items | Description | Qty | Technical Data |
| 1 | Roving creels | 2pcs |
a. Ivory paint, combined structure, easy accessibility b. Rolls capacity: 70-100 5 layers c. Dimension: 2000mm(L)x600mm(W)x2000mm(H)
|
| 2 | resin bath | 1pc |
a. Capacity: 50kg b. Bath dimension: 1030mm(L)x720mm(W)x190mm(H) c. Dimension: 1110mm(L)x810mm(W)x900mm(H)
|
| 3 | Calibrating table | 1pc |
a. Size of die table: 970mm(L)x910mm(W)x20mm(H) b. Length of die: 900mm c. Adjustable height of die table: 0-80mm d. Temperature control zones: 4 (max control power 20KW, heating plated customer made) e. Dimension: 3990mm(L)x1140mm(W)x1380mm(H)
|
| 4 | Traction machine | 1pc |

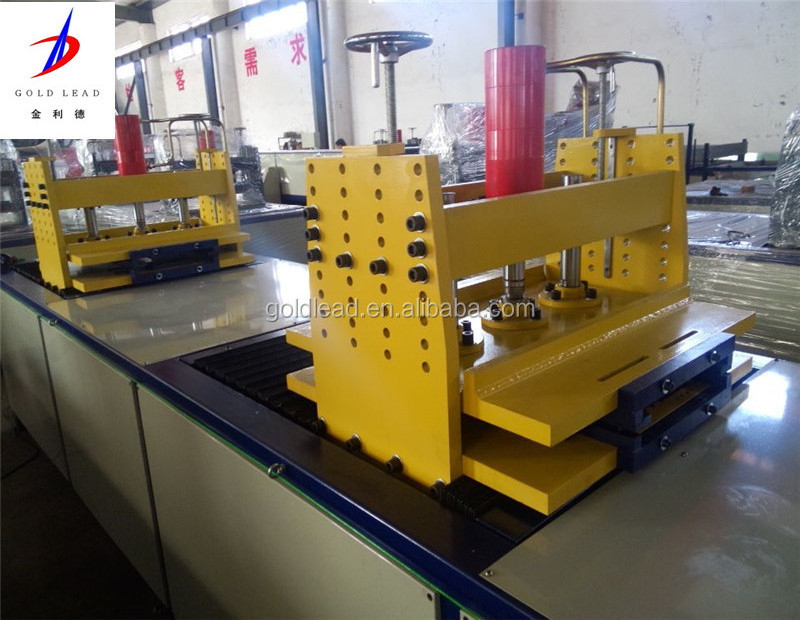

a. Clamping envelope: 8000mm(W)x300mm(H) b. Max traction force: 300KN c. Max clamping force of traction heads: 300KN d. Traction speed: 0.1m-1.0m/min e. Max traction to-and-fro journey: 500mm f. Clamping journey: 100mm g. Traction cylinder: HSG 160X500 h. Clamping cylinder: HSG 160X500 i. Oil pump power: 380V 50HZ 2x3KW j. Cooling water pump power: 220V/50HZ 2.2KW k. Dimension: 4960mm(L)x1140mm(W)x1750mm(H)
|
| 5 | cutter | 1pc |
a. Cutting range: 800mm(W)x240mm(H) b. Rotation speed of cutting blade: 1450rpm c. Cutting power: 3KW d. Diameter of cutting blade: 600mm/50mm (inner) e. Dust collection: vacuum cleaner 1.5KW f. Cutting tracing journey: 700mm g. Cutting mode: auto/manual h. Fix-length cutting mode: limit switch i. Dimension: 2700mm(L)x2100mm(W)x2200mm(H)
|
| 6 | Creel for finished products | 1pc |
a. Structure: square tube and roller combined b. Standard configuration: platform type c. Dimension: 6000mm(L)x550mm(W)x900mm(H) |
| Control system |
a. PLC: FX1N , Mitsubishi, Japan b. Temperature controller: N6000 YATAI, Shanghai c. Velocimetry encoder: HMN-8G10 Howard, Shanghai d. Speed digital display meter: FM8-RL0 Toky, Japan e. Electrical components: Huyu, Zhejiang |
||
