Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XT
-
Dimensions:
-
360*155*260cm
-
Weight (KG):
-
220 KG
-
Core Components:
-
laser source
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Welding
-
Laser power:
-
1500W 2000W 3000W
-
Advantage:
-
Easy to learn and operate
-
Welding head:
-
Super Handheld Welding Head
-
Control System:
-
Suplaser Single Pendulum System
-
Welding mode:
-
Manual Handheld
-
After-sales Service Provided:
-
Overseas Service Center
-
Laser type:
-
Continuous Fiber Laser
-
Welding thickness:
-
0.3-8mm
Quick Details
-
Max. Output Power:
-
13300w
-
Use:
-
precision welding
-
Laser Source Brand:
-
RECI/ Max/ Raycus
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
XT
-
Dimensions:
-
360*155*260cm
-
Weight (KG):
-
220 KG
-
Core Components:
-
laser source
-
Product name:
-
Handheld Laser Welding Machine
-
Application:
-
Metal Stainless Steel Welding
-
Laser power:
-
1500W 2000W 3000W
-
Advantage:
-
Easy to learn and operate
-
Welding head:
-
Super Handheld Welding Head
-
Control System:
-
Suplaser Single Pendulum System
-
Welding mode:
-
Manual Handheld
-
After-sales Service Provided:
-
Overseas Service Center
-
Laser type:
-
Continuous Fiber Laser
-
Welding thickness:
-
0.3-8mm
3D VR
Products Description

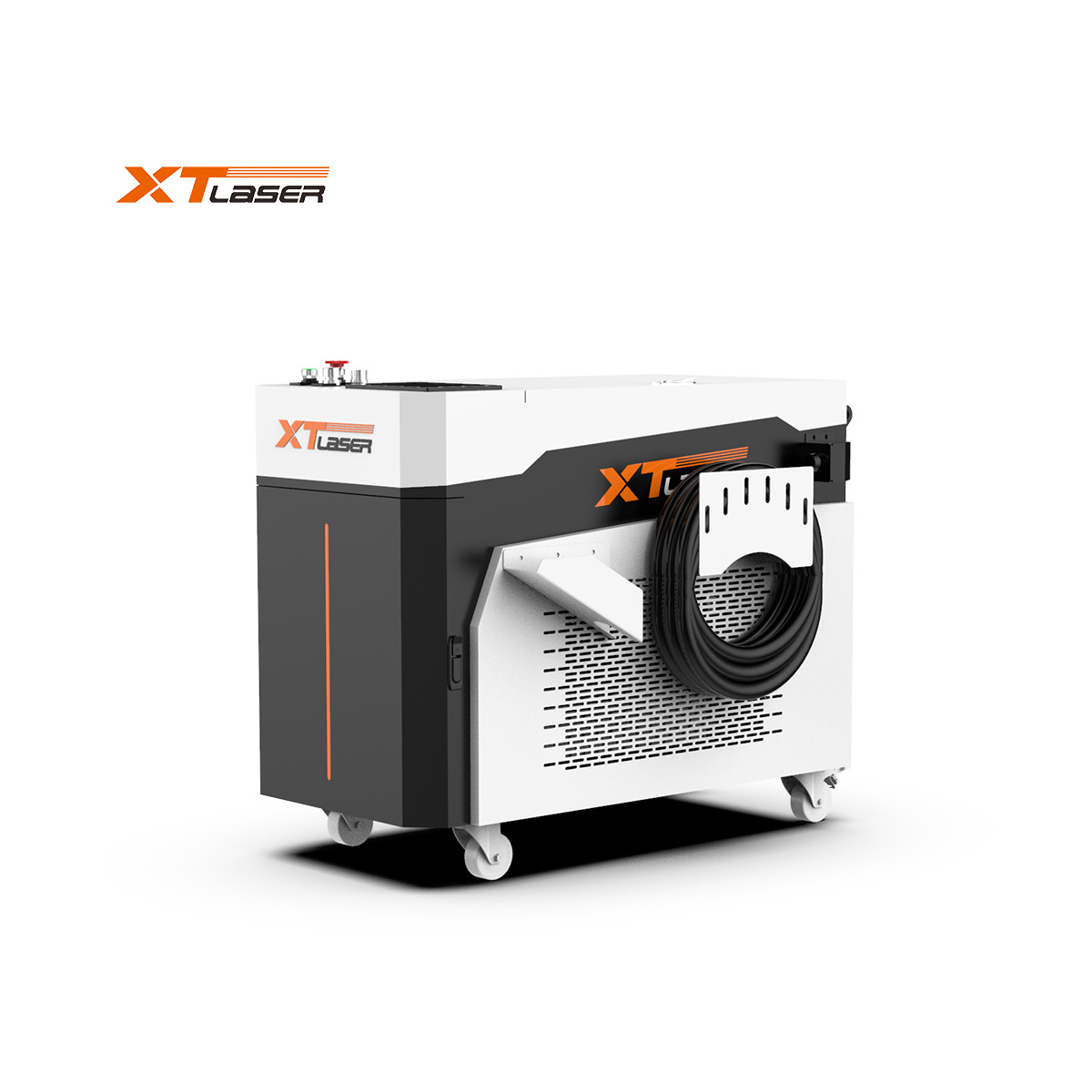

Hand-held laser welding machine
Hand-held laser welding machine can be widely used in kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries.
Beautiful weld, fast speed, no consumables, no welding mark, no discoloration, no need to polish later. Can be configured with a variety of Angle nozzle to meet the welding needs of different products.
XT-Laser Handheld Fiber Laser Welding Machine 1000W-2000W
1.Compact size,Easy to Move Stronger Welding Strength2.More Efficiency and Lower Maintenance Costs Wire Feeder is a Standard Tool
3.Eyecatching Advantages Eco-friendly Welding, No Pollution
3.Eyecatching Advantages Eco-friendly Welding, No Pollution
Parameter & Samples Photos
|
Laser power
|
1000w
|
1500w
|
2000w
|
3000w
|
XT-H2060
|
XT-H2560
|
||
|
Conduction Type
|
Fiber laser
|
Fiber laser
|
Fiber laser
|
Fiber laser
|
2000*6000mm
|
2500*6000mm
|
||
|
Laser Frequency
|
50-5000HZ
|
50-5000HZ
|
1064nm
|
1064nm
|
1000w-4000w
|
1000w-4000w
|
||
|
Cooling Method
|
Water cooling
|
Water cooling
|
Water cooling
|
Water cooling
|
120m/min
|
120m/min
|
||
|
Total Power
|
5.5kw
|
7.7kw
|
9.5kw
|
14kw
|
1.0G
|
1.0G
|
||
|
Fiber Cable Length
|
10m
|
10m
|
10m
|
10m
|
±0.03mm
|
±0.03mm
|
||
|
Eectricity Requirements
|
single phase 220v ±10% 50/60Hz AC
|
single phase 220v ±10% 50/60Hz AC
|
single phase 220v ±10% 50/60Hz AC
|
single phase 220v ±10% 50/60Hz AC
|
±0.02mm
|
±0.02mm
|
||
|
Welding Mode
|
Dot/Cricle/Line/8 mode
|
Dot/Cricle/Line/8 mode
|
Dot/Cricle/Line/8 mode
|
Dot/Cricle/Line/8 mode
|
|
|
||
|
Filler wire dia
|
0.8-1.0-1.2-1.6mm
|
0.8-1.0-1.2-1.6mm
|
0.8-1.0-1.2-1.6mm
|
0.8-1.0-1.2-1.6mm
|
|
|
||
|
Welding penetration
|
3mm
|
4mm
|
5mm
|
6mm
|
|
|
||
|
Working Temperature
|
10 ℃-40℃
|
10 ℃-40℃
|
10 ℃-40℃
|
10 ℃-40℃
|
|
|
||
XT Laser laser welding machine Application in Stainless steel, Carbon steel, Aluminum, Copper materials, etc.
Global Service from XTLASER
24 hour online service
* Inquiry and consulting support.
* Sample testing support.
*We offer free training in our factory, welcome to visit and learn more about our machines.
*Multi-language support
2 years Warranty
* We have the high quality machine
* We provide 2 years warranty, leading the whole industry
* Our agent help us to make a perfect after-sales service system
raining and maintenance Engineers
available to service machinery overseas.
3 day lightning shipment Localized service with new machine production for 10 days
