Quick Details
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
Tracer AN series
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
1040W/24V
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Maximum Current:
-
40A/30A/20A/10A
-
Application 1:
-
Charger Controller
-
Application 2:
-
Solar System Controller
-
Application 3:
-
regulador solar MPPT
-
Application 4:
-
controlador solar MPPT
-
Application 5:
-
solar battery charge controller MPPT
-
Application 6:
-
MPPT solar charge controller
-
Application 7:
-
solar controller 30a
-
Application 8:
-
solar charge controller
-
Application 9:
-
Battery voltage range 8~32V
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar Working Station, Voltage Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EASUN POWER
-
Model Number:
-
Tracer AN series
-
Work Time (h):
-
Accept Setting
-
Max PV Power:
-
1040W/24V
-
Max PV Voltage:
-
60V
-
Certificate:
-
CE
-
Warranty:
-
1 Year
-
Maximum Current:
-
40A/30A/20A/10A
-
Application 1:
-
Charger Controller
-
Application 2:
-
Solar System Controller
-
Application 3:
-
regulador solar MPPT
-
Application 4:
-
controlador solar MPPT
-
Application 5:
-
solar battery charge controller MPPT
-
Application 6:
-
MPPT solar charge controller
-
Application 7:
-
solar controller 30a
-
Application 8:
-
solar charge controller
-
Application 9:
-
Battery voltage range 8~32V

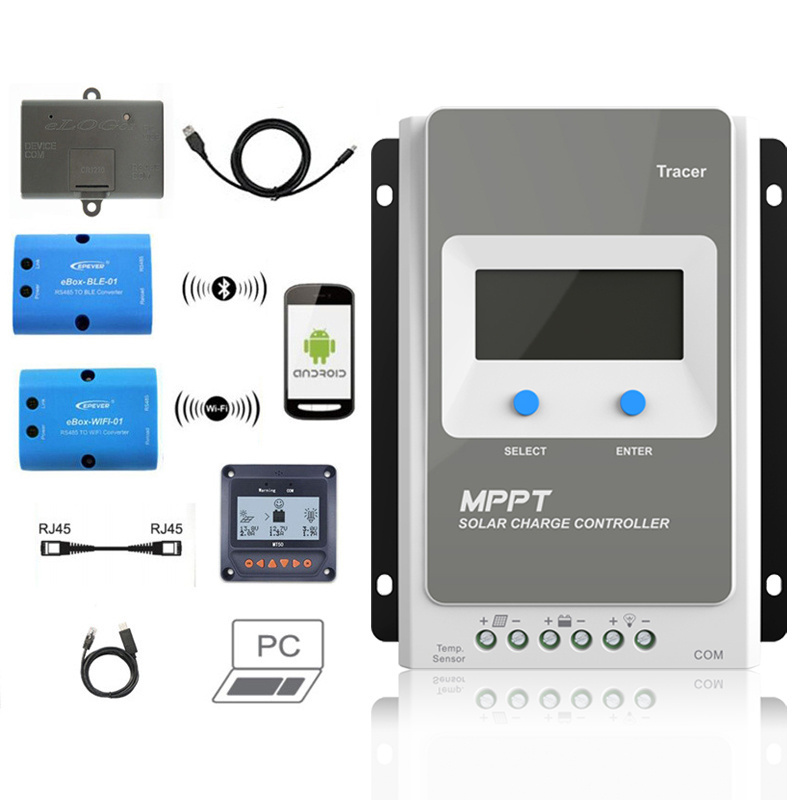

12V 24V Lead Acid Lithium Battery Charger 1210AN 2210AN 3210AN 4210AN Solar Charge Controller MPPT EPever
Products Description
The Tracer AN series. Based on common negative design and advanced MPPT control algorithm, with LCD displaying running status, this product is artistic, economical and practical. Improving the MPPT control algorithm further, Tracer AN series can minimize the maximum power point loss rate and loss time, quickly track the maximum power point of the PV array and obtain the maximum energy from solar modules under any conditions; and can increase the ratio of energy utilization in the solar system by 10%-30% compared with a PWM charging method. The limitation function of the charging power and current and reducingcharging power function automatic improve the stability which works even connecting oversize PV modules and in high temperature, and increase the professional protection chip for the communication port, further improving the reliability and meeting the different application requirements.
Specification
|
Model
|
Tracer1210AN
|
Tracer2206AN/2210AN
|
Tracer3210AN
|
Tracer4210AN
|
||||
|
System nominal voltage
|
12/24VDC Auto
|
|
|
|
||||
|
Rated charge current
|
10A
|
20A
|
30A
|
40A
|
||||
|
Rated discharge current
|
10A
|
20A
|
30A
|
40A
|
||||
|
Battery voltage range
|
8~32V
|
|
|
|
||||
|
Battery Type
|
Lead-acid(Seal,Flood,Gel)and Lithium-ion batteries
|
|
|
|
||||
|
Max. PV open circuit voltage
|
100V(Tracer1210AN;Tracer2210AN;Tracer3210AN;Tracer4210AN) ,60V(Tracer1206AN;Tracer2206AN)
|
|
|
|
||||
|
MPP voltage range
|
(Battery voltage +2V)~72V
|
|
|
|
||||
|
Max. PV input power
|
130W/12V
|
260W/12V
|
390W/12V
|
520W/12V
|
||||
|
|
260W/24V
|
520W/24V
|
780W/24V
|
1040W/24V
|
||||
|
Self-consumption
|
≤12mA
|
|
|
|
||||
|
Discharge circuit voltage drop
|
≤0.23V
|
|
|
|
||||
|
Temperature compensate
|
-3mV/°C/2V (Default)
|
|
|
|
||||
|
Grounding
|
Common negative
|
|
|
|
||||
|
RS485 interface
|
5VDC/100mA
|
|
|
|
||||
|
LCD backlight time
|
60S (Default)
|
|
|
|
||||
|
Electrical Parameters
|
|
|
|
|
||||
|
Working environment temperature
|
-25°C~+50°C
|
|
|
|
||||
|
Storage temperature range
|
-20°C~+70°C
|
|
|
|
||||
|
Relative humidity
|
≤95%, N.C
|
|
|
|
||||
|
Mechanical Parameters
|
|
|
|
|
||||
|
Dimension
|
172x139 x 44mm
|
220x154x 52mm
|
228x164x55mm
|
252x180x63mm
|
||||
|
Mounting dimension
|
130x130mm
|
170x145mm
|
170x164mm
|
210x171mm
|
||||
|
Mounting hole size
|
Φ5mm
|
|
|
|
||||
|
Terminal
|
12AWG(4mm2)
|
6AWG(16mm2 )
|
6AWG(16mm2)
|
6AWG(16mm2)
|
||||
|
Recommended cable
|
12AWG(4mm2)
|
10AWG(6mm2)
|
8AWG(10mm2)
|
6AWG(16mm2)
|
||||
