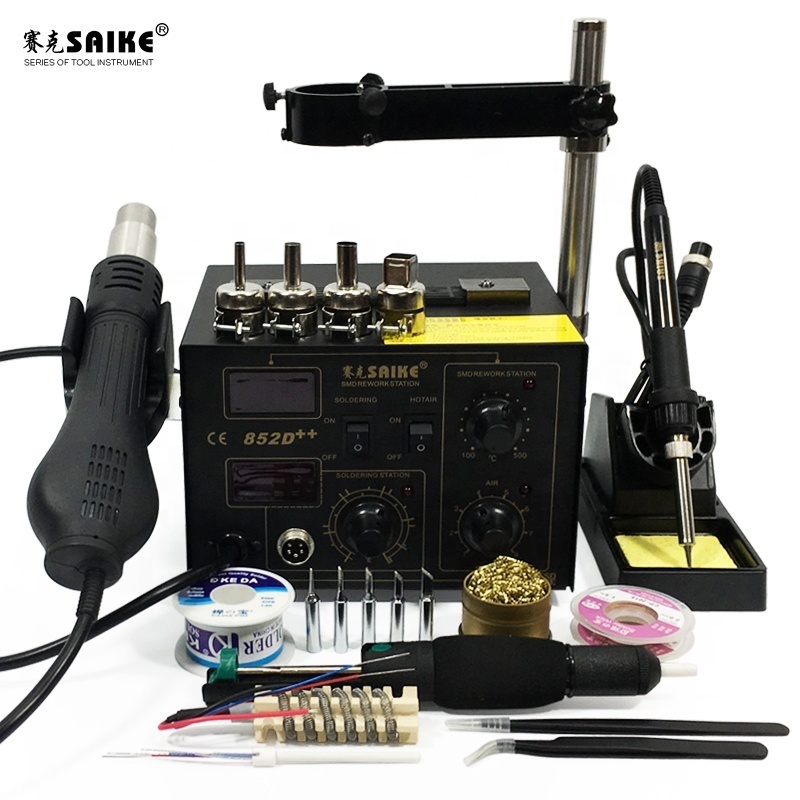

SAIKE 852D++ 2 in 1 SMD Rework Station Hot air gun soldering station Desoldering station 220V 110V

SAIKE 852D++ 2 in 1 SMD Rework Station Hot air gun soldering station Desoldering station 220V 110V

FOB Reference Price: Get Latest Price

≥1 Pieces

US $49

≥50 Pieces

US $39

≥100 Pieces

US $29

Payment:

Export Port:

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Weight (KG):: 3.5 KG

PACKAGE

Package 1

SAIKE 852D++ Hot air soldering station * 1

Package 2

SAIKE 852D++ Hot air soldering station * 1

Solder wire * 1

Iron tips * 5

Iron box rosin * 1

Suction-line * 2

Package 3

SAIKE 852D++ Hot air soldering station * 1

Solder wire * 1

Iron tips * 5

Iron tips cleaning box (with rosin) * 1

Suction-line * 2

Solder sucker * 1

Hot air gun heating core * 1

Soldering iron heating core * 1

Anti-static Straight Tweezers * 1

Anti-static Curved Tweezers * 1

Package 4

SAIKE 852D++ Hot air soldering station * 1

Hot air gun vertical bracket * 1

Package 5

SAIKE 852D++ Hot air soldering station * 1

Hot air gun vertical bracket * 1

Solder wire * 1

Iron tips * 5

Iron box rosin * 1

Suction-line * 2

Package 6

SAIKE 852D++ Hot air soldering station * 1

Hot air gun vertical bracket * 1

Solder wire * 1

Iron tips * 5

Iron tips cleaning box (with rosin) * 1

Suction-line * 2

Solder sucker * 1

Hot air gun heating core * 1

Soldering iron heating core * 1

Anti-static Straight Tweezers * 1

Anti-static Curved Tweezers * 1

Features

852D + + is based on the 852D + circuit board performance, structure and packaging optimized, more stable and reliable electrical properties, circuit structure and packaging structure more reliable.

As required, you can install an air gun fixed support which well suits the preheat board. Therefore, you can easily dismantle the large chip.

1. Use the microcomputer processor PID program control technology. The procedure tracks the air gun and the iron actual temperature by highly speed take the millisecond as the unit, the mysterious temperature compensation speed strengthen the temperature stability, the temperature static error has been small, temperature compensation is very quickly,which could adapt each kind of adverse circumstance.

2. Air gun heater using the latest technology(skeleton type), high-quality heater production, significantly improved the stability and reliability and significantly improve avoid to shocking and anti-strike (traditional techniques use quartz glass, can not afford to drop and re-shock, in the transport and use of the pro- cess is very easy to damage), and working life is much longer than the traditional type.

3. The handle equipped with a sensor switch, as long as we grip the handle, the system can quickly enter working mode; handle back into the handle frame, the system will enter standby mode, easy to operate in real time, meanwhile can extend heater life.

4. Use brushless fan as the air source,extremely long life, low- oise.

5. The iron part use high quality heating element, rapid heating and long service life; Antistatic design, to prevent electrostatic damage to the delicate SMD components.

Parameters

Model	852D++
Type	LED digital display
Input voltage	220V/50Hz(110V/60Hz)
Power consumption	700W
Hot air
Working voltage	AC220V/50HZ(AC110V/60Hz)
Display form	LED digital (resolution 1°)
Heating element	Skeleton type ceramic heating core
Temperature range	100°-480°
Type of air flow	Brushless fan soft wind
Temperature stability	±1°
Gas flow	120 L/min(max)
Noise	Less than 45dB
Handle length	About 100cm(Including handle line)
Soldering iron
Working voltage	AC 24V 50/60HZ
Display form	LED digital (resolution 1°)
Temperature range	200°-480°
Heating element	A1322 ceramic heating core
Temperature stability	±2°(no load)
Handle length	About 100cm(Including handle line)

Application

1. Suitable for a various kind of soldering or desoldering (removals) purposes of the electronic components such as: SOIC, CHIP, QFP, PLCC, BGA,SMD, etc. (especially mobile phone's cable).

2. Shrinking, drying Paint drying, adhesive removal, thawing, warming, Plastic welding.
