Quick Details
-
Application:
-
Warehouse
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SLWCT
-
Model Number:
-
GA-B
-
Capacity:
-
150kg
-
Platform size:
-
0.68/0.64/1.10m
-
Max. Platform height:
-
12.00m
-
Min. Platform height:
-
4.00m
-
raise / lower speed:
-
0.16 / 0.30 m/s
-
Power source:
-
AC 110-220 V / 50-60 Hz
-
Motor power:
-
1.10kW
-
battery - optional:
-
DC 12V
-
Overall size:
-
1460/760/1990mm
-
Net weight:
-
330-460kg
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
Others
-
Application:
-
Warehouse
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SLWCT
-
Model Number:
-
GA-B
-
Capacity:
-
150kg
-
Platform size:
-
0.68/0.64/1.10m
-
Max. Platform height:
-
12.00m
-
Min. Platform height:
-
4.00m
-
raise / lower speed:
-
0.16 / 0.30 m/s
-
Power source:
-
AC 110-220 V / 50-60 Hz
-
Motor power:
-
1.10kW
-
battery - optional:
-
DC 12V
-
Overall size:
-
1460/760/1990mm
-
Net weight:
-
330-460kg

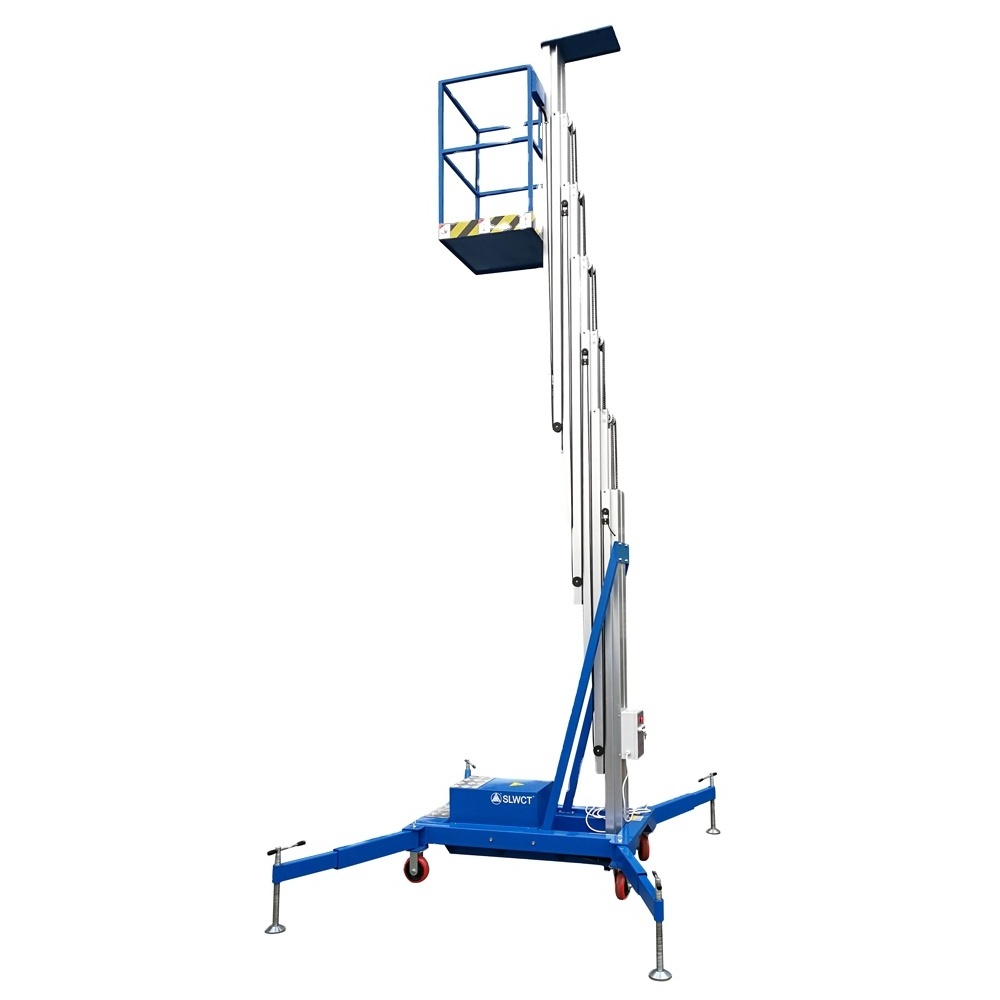

125 kg Capacity Electric Single Mast Manlift Aerial Work Platform
The 125 kg Capacity Electric Single Mast Manlift Aerial Work Platform make them a versatile option for a wide variety of rental,
light-duty construction and maintenance applications.
Main specifications
| Model | GA-04-B | GA-06-B | GA-08-B | GA-10-B | |
| capacity | kg | 125 | 125 | 100 | 100 |
| working height | m | 6.00 | 8.00 | 10.00 | 12.00 |
| platform height | m | 4.00 | 6.00 | 8.00 | 10.00 |
| platform size - l/w/h | m | 0.60/0.60/1.10 | 0.60/0.60/1.10 | 0.60/0.60/1.10 | 0.60/0.60/1.10 |
|
power source
|
V |
AC 110-230
|
AC 110-230 | AC 110-230 | AC 110-230 |
| lift motor | kW | 1.10 | 1.10 | 1.10 | 1.10 |
|
battery - optional
|
V / Ah | 12 / 80 | 12 / 80 | 12 / 100 | 12 / 100 |
| net weight | kg | 270 | 310 | 350 | 380 |
Features and Benefits
• User-friendly control
• Dual activated up/down switch
• Auxiliary platform lowering
• Bulit-in gradienter
• Key-operated On/Off control for safety and security
• Rocker base system for maneuverability
• Small outrigger footprints
• Unit rolls smoothly with 4 rigid and 2 swivel casters
• Battery charger included
• Custom paint available
User-friendly control board.
Dual activated up/down switch.
Folding support legs.
Auxiliary platform lowering.
Bulit-in gradienter.
This easy-to-use single mast portable electric aluminium platform ladder provides a safe, secure,
stable work platform that extends up to 12.00m high.
The normal package is rollers and steel pallet (Size: L*W*H).
Slwct offers a full line of aerial work platforms and other material handling equipments.
* self propelled electric order picker - GP-A
* powered mini scissor lift - GF-B
