Low Insertion Loss
Low PDL
Compact in-line Package
High stability and Reliability
Epoxy-free on optical path
Low PDL
Compact in-line Package
High stability and Reliability
Epoxy-free on optical path
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
GEZHI or OEM
-
Use:
-
FTTH
-
Warranty Time:
-
3 years
-
Product name:
-
3 ports Optical Circulator
-
Channel min Isolation(dB):
-
>40
-
Return Loss (dB):
-
>50
-
Operating Temperature (°C):
-
0 ~ +70
-
Storage Temperature (°C):
-
-40 ~ +85
-
Application:
-
CATV System
Quick Details
-
Type:
-
Optical Circulator
-
Model Number:
-
3 port optical circulator
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GEZHI or OEM
-
Use:
-
FTTH
-
Warranty Time:
-
3 years
-
Product name:
-
3 ports Optical Circulator
-
Channel min Isolation(dB):
-
>40
-
Return Loss (dB):
-
>50
-
Operating Temperature (°C):
-
0 ~ +70
-
Storage Temperature (°C):
-
-40 ~ +85
-
Application:
-
CATV System
Product Overview

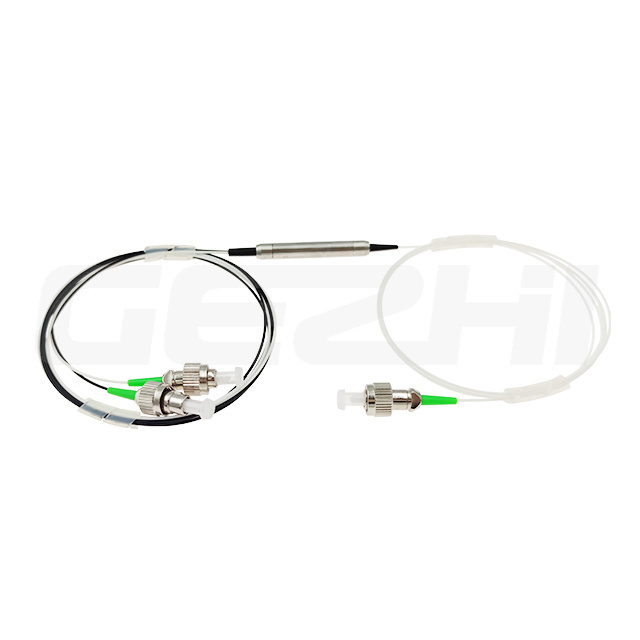

3 port 1310 or 1550nm Optical Circulator
GEZHI Photonics’ Three-port 1x2 Optical Circulator allows light to travel in only one direction. A signal entering to Port 1 will exit Port 2 with minimal loss, while a signal entering Port 2 will exit Port 3 with minimal loss. Light entering port 2
experiences a large amount of loss at port 1, and light entering port 3 experiences a large amount of loss at ports 2 and 1.
Optical circulators are non-reciprocal devices. This means that any changes in the properties of the light caused by passing through the device are not reversed by traveling in the opposite direction.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Parameter
|
|
P Grade
|
|
|
Configuration
|
|
Port 1 to Port 2 to Port 3
|
|
|
Operation Wavelength (nm)
|
|
1310±30 or 1550±30 or 1585±30
|
|
|
Isolation (dB)
|
Typical
|
0.6
|
|
|
|
Maximum
|
0.8
|
|
|
Typical Isolation (dB)
|
|
≥50
|
|
|
Minimum Isolation (dB)
|
|
≥40
|
|
|
Cross Talk (dB)
|
|
≥50
|
|
|
Polarization Dependent Loss (dB)
|
|
<0.15
|
|
|
Polarization Mode Dispersion
|
|
<0.1
|
|
|
Return Loss（dB）
|
|
≥50
|
|
|
Power Handling (mW)
|
|
500
|
|
|
Opterating Temperature (℃)
|
|
-10~+75
|
|
|
Package dimension (mm)
|
|
Φ5.5xL50 or Φ5.5xL63
|
|
Dimension
Product Packaging
|
Fished Item
|
Inner Package
|
Inner Box
|
Carton
|
Odering Information
|
PICIR
|
Wavelength
|
Package
|
Fiber Diameter
|
Fiber Length
|
Connector
|
|
3=3Port
4=4Port S=Specity |
13=1310nm
55=1550nm 58=1580nm C+L=C=L band S=Specify |
S1=5.5x50mm
S2=5.5x68mm A9=90x20x10mm S=Specify |
25=250um
09=900um 20=2.0mm 30=3.0mm S=Specify |
05=0.5m
10=1.0m 15=1.5m S=Specify |
FP=FC/PC
FA=FC/APC SP=SC/PC SA=SC/APC LP=LC/PC LA=LC/APC S=Specify |
Test Enviroment
|
NO-dust workshop
|
High Temp. Ageing & High-Low Temperature cycling
|
100% Testing Before Shipment
|
Optical Spectrum Analysis
|
|
|
SIMILAR PRODUCTS
FAQ
Q1：
Can I have a sample order? What is your MOQ?
A1：Sample order is welcome to test and check quality. We don't
MOQ, 1pcs sample is available.
Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week,
For big quantity and special products. Please check lead time with our sales representative.
But we keep stock for some products,
could ship 1-3 days after receiving payment.
Q3:
What are the payment terms?
A3: Payment term: T/T, Paypal,
Western union,
cash payment, Alibaba etc.
Q4: What is your warranty time？
A4: 3 years' warranty.
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
