Quick Details
-
Dimension(L*W*H):
-
12550*2100*2080mm
-
Weight:
-
5400 KG
-
Max Paper Width:
-
1150mm
-
Length of Roller:
-
1250mm
-
Max Paper Length:
-
1150mm
-
Suitable Paper Thickness:
-
80-600g/m2
-
Speed:
-
10-80m/min
-
Infrared Heating power:
-
1.5kw*18pcs
-
Ultraviolet heating power:
-
3*8kw or 2*8kw
-
Product name 1:
-
Oil-coating Machine
-
Product name 2:
-
UV Glazing Machine
-
Oil Choice:
-
UV oil, Water based oil(Glossy, Matt, Blister, Soft toch oil)
Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIALITE
-
Dimension(L*W*H):
-
12550*2100*2080mm
-
Weight:
-
5400 KG
-
Max Paper Width:
-
1150mm
-
Length of Roller:
-
1250mm
-
Max Paper Length:
-
1150mm
-
Suitable Paper Thickness:
-
80-600g/m2
-
Speed:
-
10-80m/min
-
Infrared Heating power:
-
1.5kw*18pcs
-
Ultraviolet heating power:
-
3*8kw or 2*8kw
-
Product name 1:
-
Oil-coating Machine
-
Product name 2:
-
UV Glazing Machine
-
Oil Choice:
-
UV oil, Water based oil(Glossy, Matt, Blister, Soft toch oil)

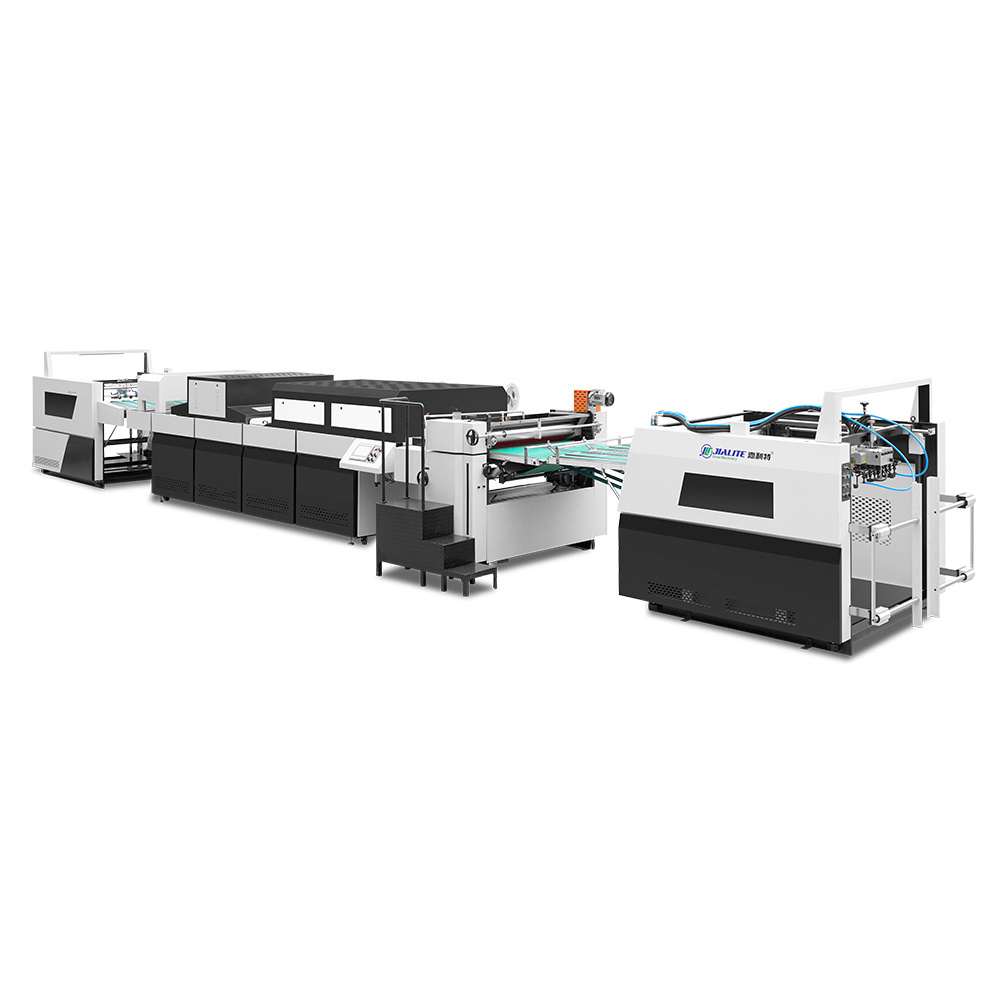

Product Appearance
Application
USAGE:
NSE series UV oil coating machine which is suitable for the varnishing and polishing process of various paper (80-600g/m²), machine for water-based oil, UV oil and blister varnish oil coating, after processing the print surface has the damp-proof and water-proof effects. Machine adopts the reversing mechanism to make the oil layer smooth and fine, save varnish oil and meets the high quality requirements.
SE model adopts air knife system which controlled by memory type PLC. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree.
SE model adopts air knife system which controlled by memory type PLC. It has the characteristics of beautiful appearance, stable and reliable performance, simple and convenient operation and high automation degree.
Products Description
|
Model
|
SG-E1200
|
|
Roller Length
|
1250mm
|
|
Max Paper Sheet Size
|
1150*1150mm
|
|
Speed
|
10-100m/min
|
|
Paper Thickness
|
80-600gsm
|
|
Main Motor Power
|
3.5kw
|
|
Whole Machine Power
|
70kw
|
|
Infrared Heating Power
|
1.5kw*18pcs
|
|
Ultraviolet Heating Power
|
8kw*3pcs
|
|
Voltage
|
380V 50Hz 3P
|
|
Weight
|
5400kgs
|
|
Dimension
|
12160*2100*2080mm
|
|
Oil type
|
Water base oil, UV oil, blister varnish oil, plastic oil
|
|
Loading
|
40HQ
|
Ralated Products
Details Images
AUTOMATIC FEEDING PART
High-speed paper feeder, upper and lower limit protection of paper feeding table; double-sheet or multi-sheet paper feeding detection device make machine stop, stepless frequency feed; Paper layer table upper protection device; The top side of paper table and feeder with micro-switch to prevent paper from rising too high impact feeder.
SE COATER WITH AIR KNIFE
Three-roll reversal speed regulator head ensures water-base polishing effect and no stripe printing. Measuring roll is driven by a separate motor to ensure even glue loading.(oil coating roller dia. 185mm)
INFRARED DRYING AND ULTRAVIOLET DRYING
Infrared dryer unit: constant temperature IR infrared lamp unit can set the temperature according to the product requirements.Energy saving, fast drying of water varnish oil, high temperature Teflon belt with automatic deviation correction protection.
Ultraviolet dryer unit: 3 pcs of 8 kw UV tube, could choose open 1 group, 2 groups or 3 groups tube, fans cooling.
Ultraviolet dryer unit: 3 pcs of 8 kw UV tube, could choose open 1 group, 2 groups or 3 groups tube, fans cooling.
AUTOMATIC COLLECTING PART
Delivery in good order, the auxiliary paper delivery table and the automatic paper delivery stacker can be converted and used.
