- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
50KG
-
Size:
-
Round40-10000L Or Customizable
-
Power:
-
Customized
-
Weight (KG):
-
120 kg
-
Product name:
-
Water Treatment Machinery Chemical Dosing System
-
Color:
-
Yellow Or White And Customized
-
Application:
-
Liquid Storage,Mixing And Dosing
-
Voltage:
-
220V/380V/Customized
-
Accessories:
-
With Inlet,Outlet,Valve,Flange
-
Processing Customized:
-
Yes
-
Technology:
-
Rotation Molding
-
Feature:
-
anti aging ,anti acid, anti alkali
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Ewater
-
Material:
-
Wrapped, LLDPE/HDPE
-
Weight:
-
50KG
-
Size:
-
Round40-10000L Or Customizable
-
Power:
-
Customized
-
Weight (KG):
-
120 kg
-
Product name:
-
Water Treatment Machinery Chemical Dosing System
-
Color:
-
Yellow Or White And Customized
-
Application:
-
Liquid Storage,Mixing And Dosing
-
Voltage:
-
220V/380V/Customized
-
Accessories:
-
With Inlet,Outlet,Valve,Flange
-
Processing Customized:
-
Yes
-
Technology:
-
Rotation Molding
-
Feature:
-
anti aging ,anti acid, anti alkali
Product Details

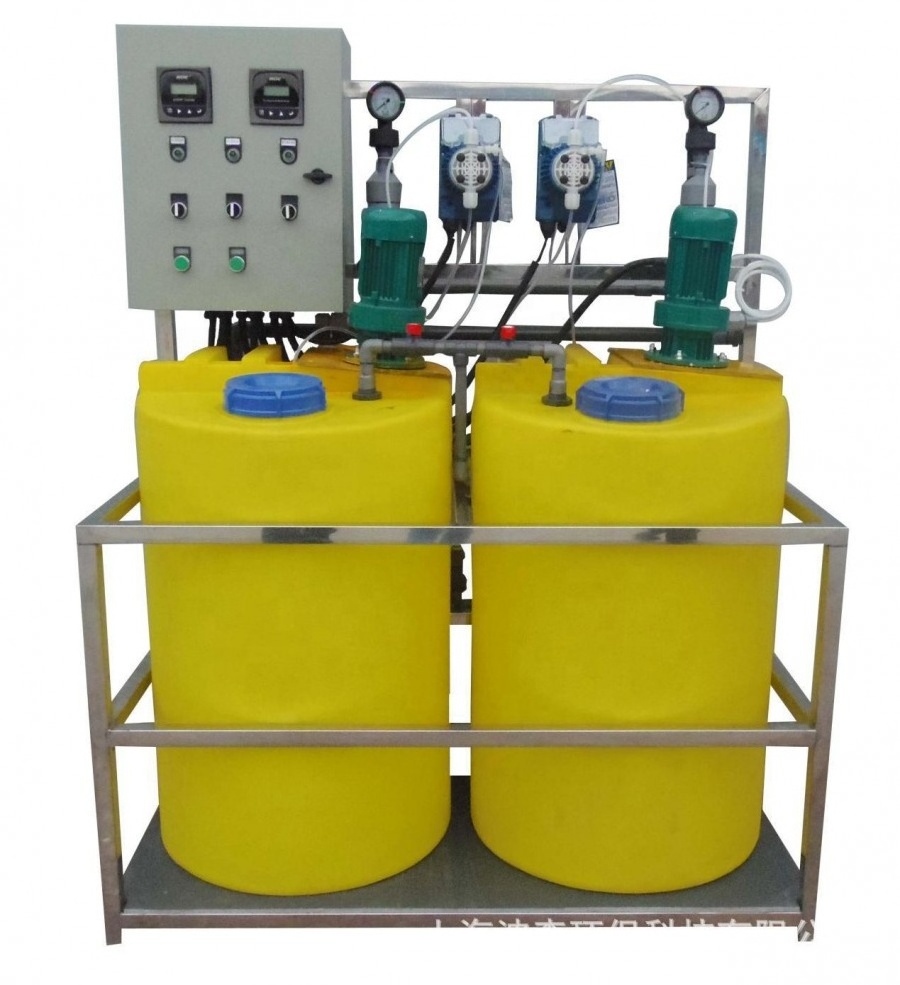

500L 100 liters Water Treatment Machinery Automatic Chemical liquid acid alkali pH Chlorine Dosing System liquid agitator mixer
Introduction:
With the dosing units you can easily and reliably condition the water to serve the intended use and to meet the technical requirements. The field of applications includes the dosing of:
* Acids for alkalinity reduction and scale prevention
* Polyelctrolytes for coagulation of suspended solids and an improved subsequent filtration
* Scale inhibitors to avoid scale deposits on reverse osmosis membranes
* Disinfectants for shock treatment in order to avoid bacterial growth
* Chlorine to avoid biological growth in pipes and storage tanks
* Hydrated lime or caustic soda for pH adjustment to neutralize dissolved free carbon dioxide.
Apply scope:
In water treatment mainly used in all kinds of agentia mixing,dissolve,storage, then pass by metering pump to dose solution .
Main components:
1.Metering pump
-Mechanical actuated diaphragm, no-leakage structure
-PVC,PTFE, PVDF,304,316 is available as the pump head material
-flow can be adjusted during operation, the range is 0.5~500L/h Pressure range:0.2~1 Mpa
-Automatic control who can accpet4~20mA is available (JWM-AD series)
-Motor: standard 220V/380V,50Hz Regulating mode: manual / automatic
2.Mixer
Rated power: 0.18~11kW;
mixer diameter: 0.4~3m
mixing speed: 60~200rpm
3.Solution dosing tank
Material: LLDPE
Volume :40L to 2000L
Mixer power:
0.18KW/0.37KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW/5.5KW/11KW
1.Metering pump
-Mechanical actuated diaphragm, no-leakage structure
-PVC,PTFE, PVDF,304,316 is available as the pump head material
-flow can be adjusted during operation, the range is 0.5~500L/h Pressure range:0.2~1 Mpa
-Automatic control who can accpet4~20mA is available (JWM-AD series)
-Motor: standard 220V/380V,50Hz Regulating mode: manual / automatic
2.Mixer
Rated power: 0.18~11kW;
mixer diameter: 0.4~3m
mixing speed: 60~200rpm
3.Solution dosing tank
Material: LLDPE
Volume :40L to 2000L
Mixer power:
0.18KW/0.37KW/0.55KW/0.75KW/1.1KW/1.5KW/2.2KW/3KW/4KW/5.5KW/11KW
|
PE Chemical Tank
|
|
|
|
|
|
|
|
||||||
|
ltem NO
|
capacit
|
Dlametor(mm)
|
Vertical Height(mm)
|
Total HeIght(mm)
|
Total HeIght(mm)
|
Thickness(mm)
|
Thicken(mm)
|
||||||
|
MC40L
|
0.04T
|
450
|
250
|
320
|
135
|
3
|
4
|
||||||
|
MC60L
|
0.06T
|
450
|
400
|
440
|
135
|
3
|
4
|
||||||
|
MC80L
|
0.08T
|
450
|
540
|
550
|
135
|
3
|
4
|
||||||
|
MC100L
|
0.1T
|
450
|
675
|
720
|
135
|
3
|
5
|
||||||
|
MC200L
|
0.2T
|
558
|
830
|
870
|
135
|
3
|
5
|
||||||
|
MC300L
|
0.3T
|
666
|
880
|
1120
|
135
|
5
|
6
|
||||||
|
MC500L
|
0.5T
|
770
|
990
|
1120
|
200
|
5
|
7
|
||||||
|
MC1000L
|
1T
|
1050
|
1080
|
1250
|
340
|
6
|
8
|
||||||
|
MC1500L
|
1.5T
|
1130
|
1250
|
1420
|
340
|
7
|
8
|
||||||
|
MC2000L
|
2T
|
1245
|
1440
|
1640
|
400
|
7
|
8
|
||||||
|
MC3000L
|
3T
|
1480
|
1610
|
1830
|
400
|
7
|
10
|
||||||
|
MC5000L
|
5T
|
1820
|
1840
|
2160
|
400
|
9
|
11
|
||||||
|
MC6000L
|
6T
|
1890
|
1980
|
2330
|
447
|
9
|
11
|
||||||
|
MC8000L
|
8T
|
2100
|
2230
|
2650
|
646
|
10
|
12
|
||||||
|
MC10000L
|
10T
|
2240
|
2420
|
2800
|
646
|
10
|
12
|
||||||
|
MC6000L(come bottom）
|
6T
|
1890
|
1980
|
2630
|
447
|
9.5
|
11
|
||||||
|
MC8000L(core bottom)
|
8T
|
2100
|
2230
|
2950
|
646
|
10
|
12
|
||||||
|
MC10000L(core bottom)
|
10T
|
2240
|
2420
|
3100
|
646
|
10
|
12
|
||||||
Advantages
The product is tough, flexible, anti-impact and corrosion-resistant. The matching mixer is divided of direct stir and side stir,the direct mixer requires matched strengthening board and tanks, while the side mixer can be equip with fixed mount to improve its stir effect and tank body service life. The types of stirrer material is stainless steel.
Details Images
Recommend Products
Product Packing&Delivery
Package
wooden case.
Delivery
7-20 days after confirming order,detail delivery date should be decided according to production season and order quantity.
