Quick Details
-
Brand Name:
-
JUYOUMECH
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
100 KG
-
Product name:
-
Circular Vibrating Tumbler Screen
-
Function:
-
Screening\separation\sorting\sieving
-
Usage:
-
Separation Screening
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10Kg-10Tons/hour
-
Feature:
-
High Screening Efficiency
-
Advantage:
-
Long Working Life
-
Noise:
-
Low 75dB
-
Screen Mesh:
-
5-500mesh
-
Applicable Material:
-
Aggregate
Quick Details
-
Type:
-
Circular
-
Marketing Type:
-
Hot Product 2024
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JUYOUMECH
-
Voltage:
-
220V/380V/415V
-
Dimension(L*W*H):
-
Standard
-
Weight:
-
100 KG
-
Product name:
-
Circular Vibrating Tumbler Screen
-
Function:
-
Screening\separation\sorting\sieving
-
Usage:
-
Separation Screening
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10Kg-10Tons/hour
-
Feature:
-
High Screening Efficiency
-
Advantage:
-
Long Working Life
-
Noise:
-
Low 75dB
-
Screen Mesh:
-
5-500mesh
-
Applicable Material:
-
Aggregate
Products Description

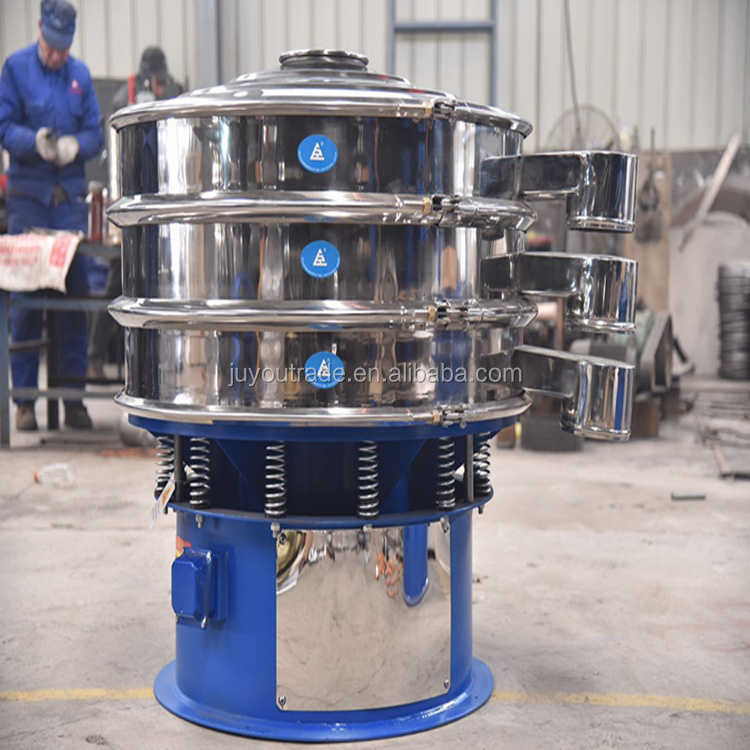

Circular Tumbler Screen
1.Q: What is circular tumbler screen?
A: Circular tumbler screen is a kind of
high efficiency screens which the design satisfy the customer's needs of large production and fine screens.
The simplest sieveing is that use your hands to sieve with eyes, the swing screen is the mechanical simulation of this. It is the
most effective simulation of the effective principle of artificial sieving exercise
(screen accuracy, efficiency, screen life are 5-10 times than conventional round screen). Meet all fine and ultra-fine range of powder and particulate materials, especially for the materials that is difficult to process.
2.Q: What are the features of circular tumbler screen?
A:1. Circular Tumbler Screen
up to 5 times the output per unit area.
2. According to 6 layers separation , screening efficiency as high as 90%-99% .
3. Circular Tumbler Screen uses the efficient equipment system for cleaning the mesh : like silicone rubber ball, ultrasonic, etc. The mesh will not clog. Closed dedusting, safe operation.
4. Vibrating speed is 4-5 times lower than the vibrating screen , so the longer life of screen parts and less maintain.
5. Low noise ＜75db . Optimize the weight balance, the foundation dynamic load is low.
2. According to 6 layers separation , screening efficiency as high as 90%-99% .
3. Circular Tumbler Screen uses the efficient equipment system for cleaning the mesh : like silicone rubber ball, ultrasonic, etc. The mesh will not clog. Closed dedusting, safe operation.
4. Vibrating speed is 4-5 times lower than the vibrating screen , so the longer life of screen parts and less maintain.
5. Low noise ＜75db . Optimize the weight balance, the foundation dynamic load is low.
3.Technical Parameters of Circular Tumbler Screen
|
Model
|
YBS-1000
|
YBS-1200
|
YBS--1600
|
YBS-2000
|
YBS-2200
|
YBS-2600
|
|
Diameter(mm)
|
1040
|
1250
|
1580
|
1880
|
2100
|
2650
|
|
Screening area（㎡）
|
0.71
|
1.11
|
1.83
|
2.62
|
3.46
|
5.31
|
|
Space requirements（m³）
|
1.2
|
1.6
|
2.5
|
4
|
4.84
|
7
|
|
Max sieve layer
|
5
|
5
|
5
|
5
|
5
|
5
|
|
Power(kw)
|
1.5
|
2.2
|
2.2/4
|
2.2/4
|
3/4
|
5.5
|
4. Material Move Way
5. Detailed Images
