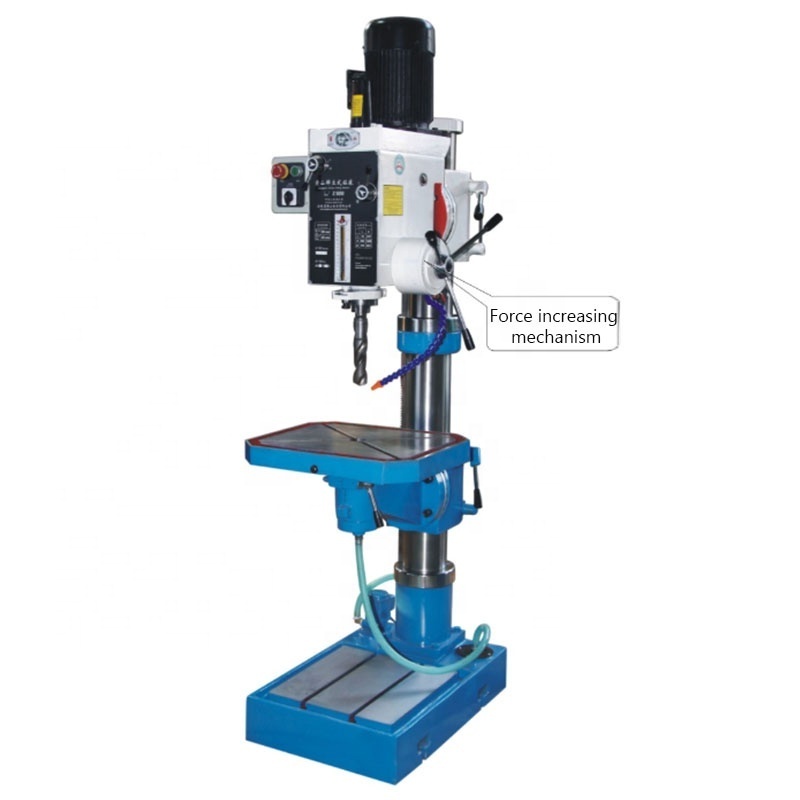

Z5050S High quality vertical drilling machine gear drive Two-speed motor Wide speed range Large aperture drilling machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Max Working Height:: 0-607mm

Model Number:: Z5050S

Place of Origin:: Anhui, China

Max chuck capacity:: 50/45mm

Diameter of column:: 140mm

G.W/N.W:: 645/580KG

Quick Details

Warranty:: 3 years

Voltage:: 380

Max Spindle Speed:: 70-150-260-370-825-1460, 45-100-170-245-550-950

Max Working Height:: 0-607mm

Model Number:: Z5050S

Place of Origin:: Anhui, China

Max chuck capacity:: 50/45mm

Diameter of column:: 140mm

G.W/N.W:: 645/580KG

Product Overview

Vertical Drilling Machine

Specializing in the production of drilling machines for more than 50 years, the main products are: desktop drilling machines, vertical drilling machines, drilling and milling machines, tapping machines, drilling and tapping machines, radial drilling machines, CNC drilling machines, CNC milling machines and deep hole drilling machines.

The specific price needs to contact customer service.

Contact E-mail yingyingmxjd@163.com

WA:+8613771085841

FEATURES AT A GLANCE

Vertical drilling machine

Gear Drive

Two-Speed Motor

Wide Speed Range

Belt Cooling

Thick Column Diameter

Industrial Drilling Machine

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

MODEL	UNIT	Z5050(S)
Max.Drilling capacity( Castings/steel parts )	mm	50/45
Diameter of column	mm	140
Max.spindle travel	mm	150
Morse taper of spindle nose		MT.4
Spindle speeds	r／min	70-150-260-370-825-1430 (45-100-170-245-550-950)
Size of worktable	mm	440*540
Size of base worktable	mm	400*415
Distance from spindle axis to column surface	mm	315
Distance from spindie nose to worktable	mm	0-607
Distance trom spindle nose to base surface	mm	912-1200
Motor	kw	2.2(2.2/1.5)
G.W/N.W	kg	645/580
Ship measurement	cm	9072.6201.3

PRODUCT CONFIGURATION
