Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTI
-
Model Number:
-
HTI-C8 35mm
-
Weight:
-
600g
-
Effective Visual Distance:
-
3500m
-
Lens:
-
35mm
-
Infrared lens focus:
-
35mm
-
Infrared Resolution:
-
384x288
-
Pixel spacing:
-
17μm
-
NETD:
-
40mK
-
Frame rate:
-
60Hz
-
Wave length coverage:
-
8μm ~ 14μm
-
Display Screen:
-
OLED 0.5" 1024X768
-
Material:
-
Aluminium Alloy+ABS
-
Color palette:
-
Rainbow, White hot, black hot,Hot metal,yellow saturated,bird watching
-
Storage:
-
16G/32G,accept custom
Quick Details
-
Size:
-
180x72x62mm
-
Type:
-
Monocular
-
Magnification:
-
x1/ x2/ x4/ x8/ x16
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HTI
-
Model Number:
-
HTI-C8 35mm
-
Weight:
-
600g
-
Effective Visual Distance:
-
3500m
-
Lens:
-
35mm
-
Infrared lens focus:
-
35mm
-
Infrared Resolution:
-
384x288
-
Pixel spacing:
-
17μm
-
NETD:
-
40mK
-
Frame rate:
-
60Hz
-
Wave length coverage:
-
8μm ~ 14μm
-
Display Screen:
-
OLED 0.5" 1024X768
-
Material:
-
Aluminium Alloy+ABS
-
Color palette:
-
Rainbow, White hot, black hot,Hot metal,yellow saturated,bird watching
-
Storage:
-
16G/32G,accept custom
Product Parameters
|
Wavelength coverage
|
8um ~14um
|
|
Diameter of exit pupil
|
± 4SD
|
|
Color palette
|
Rainbow, White hot, black hot, Hot metal, yellow saturated, bird watching
|
|
Battery type
|
Built -in 18650battery
|
|
Battery working time
|
6 hours
|
|
Detection distance
|
25mm
|
35mm
|
54mm
|
75mm
|
|||
|
Human
|
1667m
|
2333m
|
3600m
|
5000m
|
|||
|
Wild boar
|
1471m
|
2059m
|
3176m
|
4412m
|
|||
|
Cars
|
2501m
|
3500m
|
5400m
|
7500m
|
|||
|
Identification distance
|
|
|
|
|
|||
|
Human
|
416m
|
583m
|
900m
|
1250m
|
|||
|
Wild boar
|
367m
|
515m
|
794m
|
1103m
|
|||
|
Cars
|
626m
|
875m
|
1350m
|
1875m
|
|||
Product Description
About this item

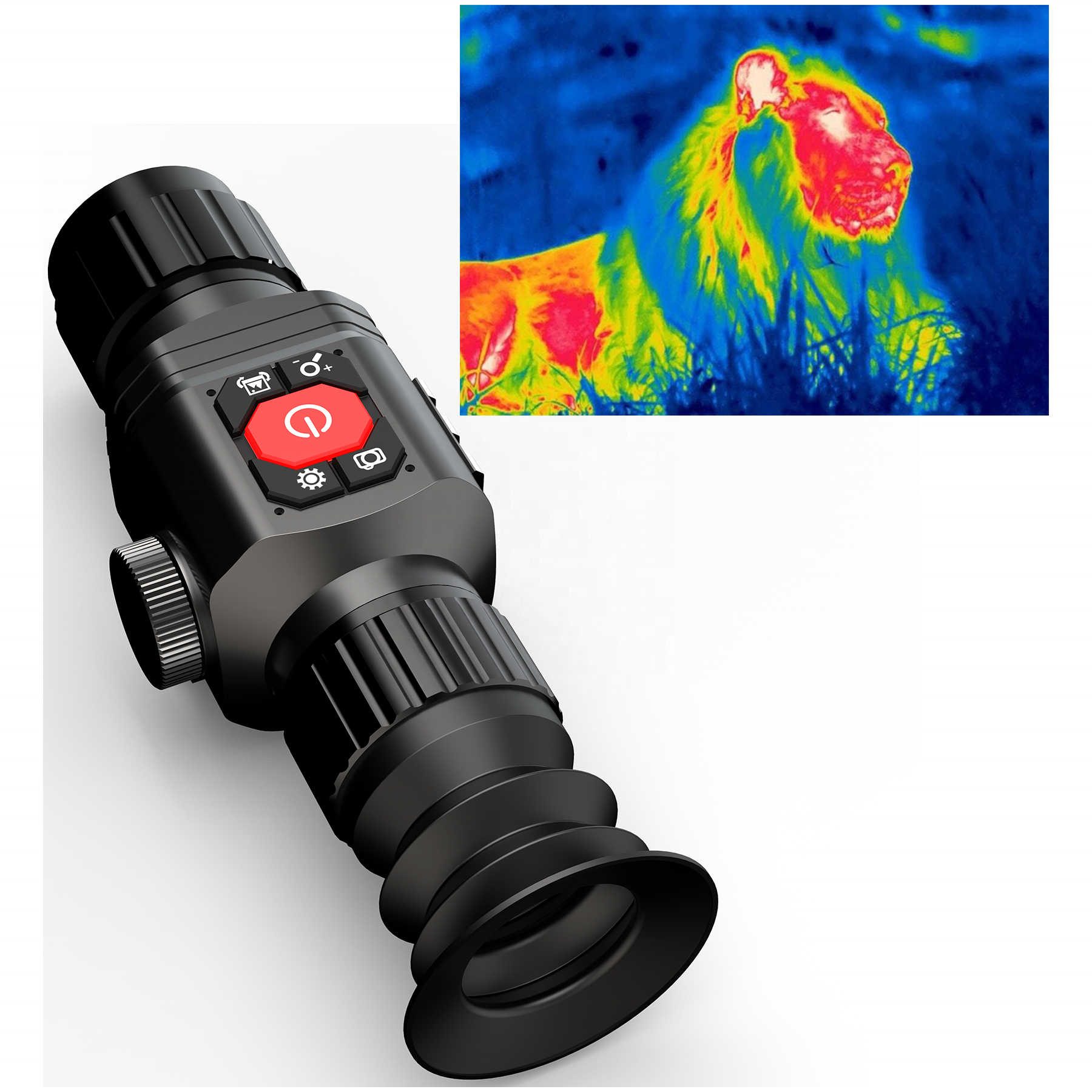

1、Featuring a high-sensitivity thermal detector with 384x288 resolution and advanced image processing technology, the HTI C8 provides clear and detailed images in even the harshest environments, such as darkness, fog, smoke, dust, rain, snow, wood, camouflage, and more.
2、Color Modes- furnished with multiple palettes of viewing modes: Black Hot, White Hot and various color palettes for various environments；
3、Classic ergonomic design, user-friendly interface and a wide field of view. Easily mountable on virtually any platform
