Quick Details
-
Application:
-
Electric Power Transmission
-
Material:
-
Galvanized Steel
-
Frequency:
-
50/60Hz
-
Standard:
-
IEC60439
-
Type:
-
Distribution Box Electrical Boxes
-
Certificate:
-
ISO9001
-
OEM:
-
Provided
-
Package:
-
Standard Wooden Case
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
Electrical Power Distribution Waterproof Panel Board
-
Keyword:
-
Waterproof Panel Board
-
Application:
-
Electric Power Transmission
-
Material:
-
Galvanized Steel
-
Frequency:
-
50/60Hz
-
Standard:
-
IEC60439
-
Type:
-
Distribution Box Electrical Boxes
-
Certificate:
-
ISO9001
-
OEM:
-
Provided
-
Package:
-
Standard Wooden Case

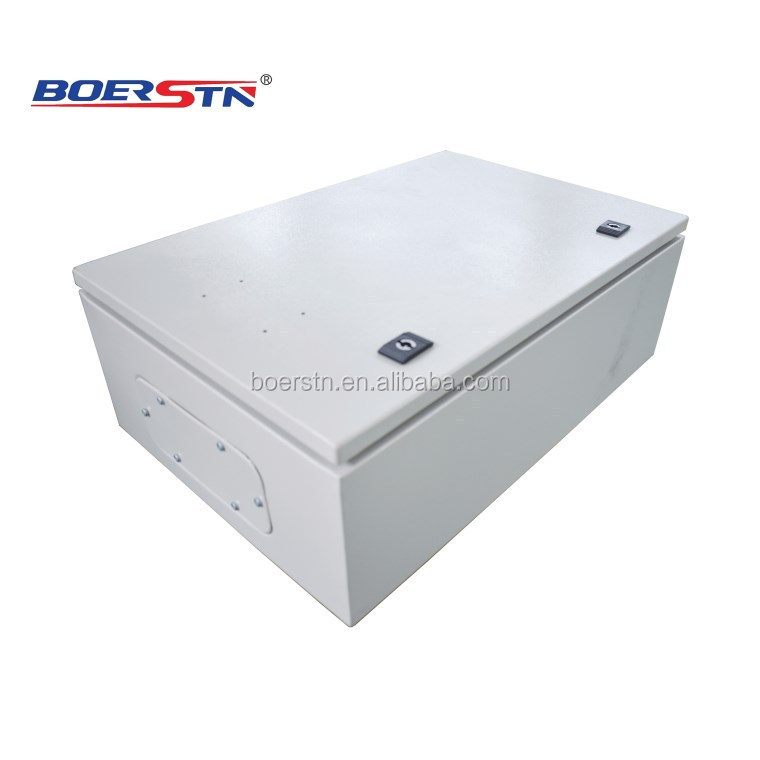

Boerstn JXF Series Electrical Power Distribution Waterproof Panel Board / Main Switch Box Distribution Cabinet
Characteristics
1.Sealing strip forming used Full-automatic pouring machine by once time.Comparing with traditional sealing strip have waterproof ,fireproof, withstand high temperature
2.The door can be exchanged compare with traditional hinge more beautiful ,no sealing off and broken.
3.Box forming by once time ,more beautiful
4.Mounting plate have many spare holes convenient to electrical engineering wiring and fasten.
5.The backboard screws are assembly type not traditional welding craft more durable
Installation size
| Model | Overall Dimension | |||
| Height(mm) | Width(mm) | Depth(mm) | Thickness(mm) | |
| JXF302515 | 300 | 250 | 150 | 1.0/1.0/1.0 |
| JXF403015 | 400 | 300 | 150 | 1.0/1.2/1.2 |
| JXF504015 | 500 | 400 | 150 | 1.0/1.2/1.2 |
| JXF403020 | 400 | 300 | 200 | 1.0/1.2/1.2 |
| JXF504020 | 500 | 400 | 200 | 1.0/1.2/1.2 |
| JXF604020 | 600 | 400 | 200 | 1.0/1.2/1.2 |
| JXF605020 | 600 | 500 | 200 | 1.2/1.5/1.5 |
| JXF705020 | 700 | 500 | 200 | 1.2/1.5/1.5 |
| JXF806020 | 800 | 600 | 200 | 1.2/1.5/1.5 |
| JXF1008020 | 1000 | 800 | 200 | 1.5/1.5/2.0 |
| JXF504025 | 500 | 400 | 250 | 1.0/1.2/1.2 |
| JXF605025 | 600 | 500 | 250 | 1.2/1.5/1.5 |
| JXF806025 | 800 | 600 | 250 | 1.2/1.5/1.5 |
| JXF1008025 | 1000 | 800 | 250 | 1.5/2.0/2.0 |
| JXF1008030 | 1000 | 800 | 300 | 1.5/2.0/2.0 |
| JXF12010030 | 1200 | 1000 | 300 | 1.5/2.0/2.0 |
Other drawing
About us
“BOERSTN ELECTRIC" is engaged in manufacturing,development,service ,solution, maintenance & marketing of H.V./L.V. power distribution equipments,switchgears,transformers,substations..etc .for all over the world. As a leading & professional manufacturer in China,we mainly manufacture below items and supply their electrical accessories:
- H.V.& L.V.switchgears
- Power Distribution Board (PDB)
- M.V solid insulated switchgears (SIS)
- compact substations /Package substation/kiosk substation
- single phase & three phase pad mounted transformers(PMT)
- Gas insulated switchgears(GIS)
- Cable Brach box
- Blokset Switchboards/switchgears
- Automatic feeder Voltage Regulator
- Ring main units (RMU)
- Oil-immersed transformers and dry type transformers
- Vacuum circuit breakers (VCB),Air circuit breakers(ACB),mini circuit breakers(MCB),Moulded case circuit breakers(MCCB),Residual current circuit breakers(RCCB).Fuse cutout,overload relays,contactors.etc
-
