Quick Details
-
Specification:
-
standard
-
Packaging Type:
-
standard
-
Application:
-
standard
-
Package / Case:
-
standard
-
Series:
-
standard
-
Features:
-
standard
-
Size / Dimension:
-
16*25
-
Description:
-
Electrolytic Capacitor
-
Manufacturing Date Code:
-
new
-
Capacitance:
-
160V220uF
-
Part Number:
-
160V220uF
-
size:
-
16*25
-
Package:
-
100/bag
-
Load Life:
-
3000 hours
-
Product Shape:
-
radial
-
Color:
-
Black
-
Temperature Range:
-
-55 to +105
-
Name:
-
Electrolytic Capacitor
-
Applicaion:
-
Charger, Switching, Power supply, Audio, equipment etc.
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
made in china, made in china/OEM
-
Model Number:
-
160V220uF
-
Specification:
-
standard
-
Packaging Type:
-
standard
-
Application:
-
standard
-
Package / Case:
-
standard
-
Series:
-
standard
-
Features:
-
standard
-
Size / Dimension:
-
16*25
-
Description:
-
Electrolytic Capacitor
-
Manufacturing Date Code:
-
new
-
Capacitance:
-
160V220uF
-
Part Number:
-
160V220uF
-
size:
-
16*25
-
Package:
-
100/bag
-
Load Life:
-
3000 hours
-
Product Shape:
-
radial
-
Color:
-
Black
-
Temperature Range:
-
-55 to +105
-
Name:
-
Electrolytic Capacitor
-
Applicaion:
-
Charger, Switching, Power supply, Audio, equipment etc.

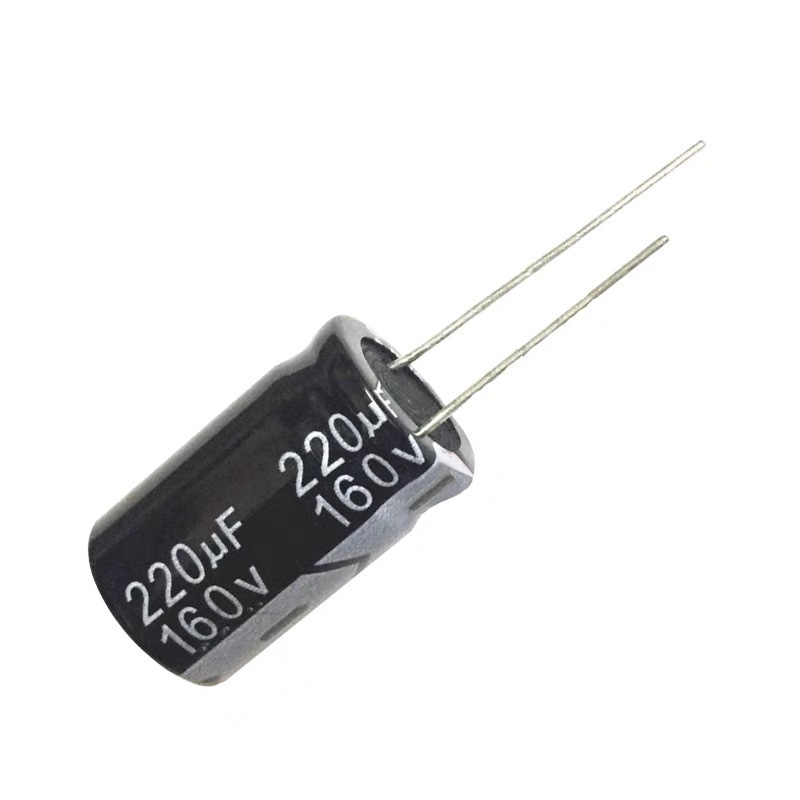

160V wholesale radial lead aluminum electrolytic capacitors 160V220uF 220uF for electric fans
Product Description
This product is suitable for power adapter, charger, switching power supply, LED lamp driving power supply, flash lamp, energy saving lamp, adapter, television , DVD, Audio power amplifier, communication, photography , Frequency conversion machine, Numerical control system, frequency converter, communication power supply, UPS power supply, frequency conversion air conditioning, audio, medical equipment and many other industries.
| ΦD±β | D±0.5 |
| L±a | L±2.0 |
| P±0.5 | 5.0mm±0.5 |
| Φd | 0.1mm±0.05 |
| High temperature resistant 105°C , Life 3000 hours Standard | |||||||||||||
| The products are widely used in LED power supply , adapter , energy saving lamp , Medical equipment , television , DVD , communication , photography , Frequency conversion machine , Numerical control system, Audio power amplifier ,and Tax-controlled tills. | |||||||||||||
| Specifications | |||||||||||||
| Items | Characteristics | ||||||||||||
| Category Tempe Range | -55~+105°C | -25~+105°C | |||||||||||
| Rated Voltage Range | 6.3~100V.DC | 160~400V.DC | |||||||||||
| Capacitance Range | 0.1~22000uF | 0.47~470uF | |||||||||||
| Capacitance Tolerance | ±20%(20°C.120Hz) | ||||||||||||
| Leakage Current (+20°C MAX) | 6.3~100V.DC | 160~400V.DC | |||||||||||
| I≤0.01CV or 3uA after 5 minute measured rated working voltage applied.(whichever is greater) | I≤0.03 (uA) after 5 minute which rated working voltage applied. | ||||||||||||
| I= (uA) Leakage Current C= (uF) Rated Capacitance V= (V) Rated Voltage | |||||||||||||
| Dissipation Factor (tanσ 20%,120Hz) | (V)Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 |
| tanσ 20°C,120Hz | 0.26 | 0.22 | 0.18 | 0.16 | 0.14 | 0.12 | 0.10 | 0.08 | 0.20 | 0.20 | 0.20 | 0.24 | |
| When rated capacitance is over 1000uF,tan shall be added 0.02 to the listed value with increase of every 1000uF. | |||||||||||||
| Load Life | After application of rated working voltager and maximum permissible ripple current specified of +105°C for 5000 hours capacitors meet the characteristics reauirement listed below. | ||||||||||||
| Capacitance Change | Within 25% of the initial measured value. | Case Size | Life Time | ||||||||||
| Dissipation Factor | Not more than 200 % of the specified value. | PDS8 | 1000 | ||||||||||
| Leakage Current | Not more than the specified value. | PD=10 | 2000 | ||||||||||
| PD212.5 | 3000 | ||||||||||||
| Temperature Stability (120Hz ) | (V)Rated Voltage | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160 | 200 | 250 | 400 |
| Z(-25°C)/Z(20°C) | 4 | 3 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 6 | |
| Z(-40°C)/Z(20°C) | 8 | 6 | 4 | 4 | 3 | 3 | 3 | 3 | - | - | - | - | |
| Shelf life | After leaving capacitor under no load at +105°C for 1000hours, Capacitors meet the characteristics listed above. | ||||||||||||
