- Product Details
- {{item.text}}
Quick Details
-
Size:
-
13800*2500*4000mm
-
Place of Origin:
-
China
-
Product name:
-
Semi Trailer
-
Axle:
-
13T
-
Suspension:
-
Mechanical Suspension
-
Tire:
-
235/75R 17.5
-
Color:
-
Customers Optional
-
Landing Gear:
-
28T
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Axle Brand:
-
Shandong Local Axle
-
Usage:
-
Cargo Transport
-
Function:
-
Transport Cars
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
CHVM
-
Size:
-
13800*2500*4000mm
-
Place of Origin:
-
China
-
Product name:
-
Semi Trailer
-
Axle:
-
13T
-
Suspension:
-
Mechanical Suspension
-
Tire:
-
235/75R 17.5
-
Color:
-
Customers Optional
-
Landing Gear:
-
28T
-
King pin:
-
2"(50mm)or3.5"(90mm)
-
Axle Brand:
-
Shandong Local Axle
-
Usage:
-
Cargo Transport
-
Function:
-
Transport Cars
Product Description

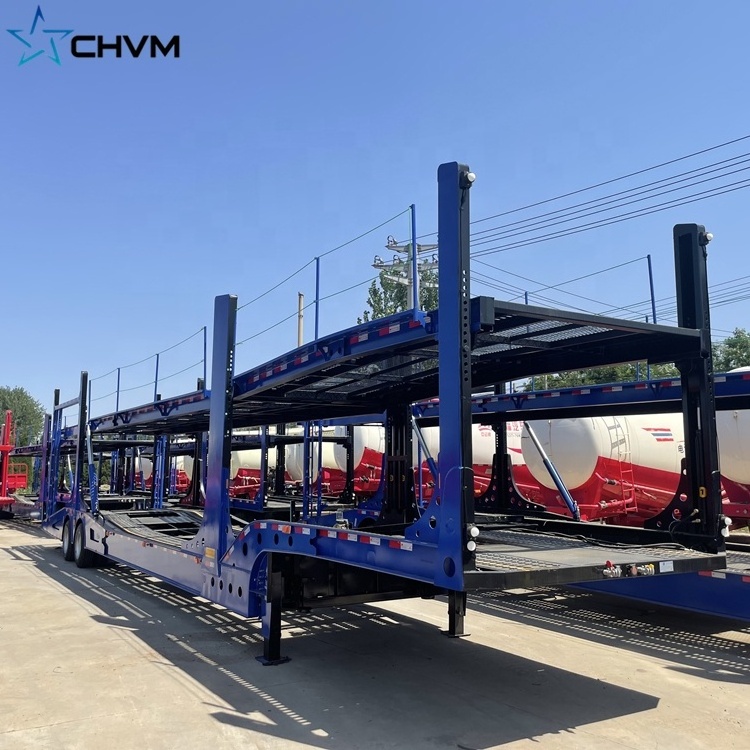

2 Axles 6 Cars Double Deck Vehicle Trailer Transport 8 Cars Carrier Trailer
Model features
1. The car body is rod and cabinet frame structure, which is light in structure and light in weight. Most of them are upper and lower loading platforms. The platform adopts hydraulic cylinder, steel rope pulley structure, stable in lifting and multi positioning in height.
2. Light structure: the whole vehicle adopts the frame structure, the whole frame bears the load, without the longitudinal beam structure of the semi-trailer, with light weight, about 30% lighter than that of similar vehicles.
3. Safe and convenient operation: all loading and unloading platform lifting control operation is reliable, can be clearly observed, accurate operation.
4. Suspension system: unique leaf spring under suspension system, variable section leaf spring, good ride comfort.
|
Parameter：
|
|
|
|
Overall Dimension
|
13800(L)*2500(W)*4000(H)mm
|
|
|
Tare Weight
|
8T
|
|
|
Pay Load
|
60T
|
|
|
Suspension
|
Mechanical Suspension with 10-layers leaf spring
|
|
|
Floor
|
Floor Plate Thickness--2.0mm
|
|
|
King Pin
|
2"(50mm)or3.5"(90mm)
|
|
|
Landing Gear
|
Heavy Duty 28ton*2
|
|
|
Tyre
|
235/75R 17.5
|
|
|
Axies
|
2*13T
|
|
|
Light
|
Tail lamp with turn signal,brake light & reflector,side lamp etc
|
|
|
Tool Box
|
1pc tool kit box made of stainless steel
|
|
|
Hydraulic Jack
|
50Tons*1pc
|
|
|
Tire Spanner
|
1pc
|
|
|
Painting
|
Primer Coating, Top Painting, Wax Polishing
|
|
|
Color
|
Any color
|
|
Related Products
Company Introduction
Customer Photos
Certifications
Packing&Shipping
FAQ
Q1: Does your company is a factory or trade company?
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
A1: We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
Q2: Whats the qualify assurance we provided and how do we control quality?
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated
or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status
of all items at all stages of the manufacturing process.
100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are
inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
A2: Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated
or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status
of all items at all stages of the manufacturing process.
100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are
inspected to ensure they consistently achieve the required quality levels.
Q3: What's your MOQ?
A3: One unit trailer or truck.
Q4: How do you transport the semi trailers ?
A4: We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
