Huidu led control system hd-u6a single color control card dot matrix led display

Huidu led control system hd-u6a single color control card dot matrix led display

FOB Reference Price: Get Latest Price

≥1 Sets

US $2.59

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Panel Size:: Customized

Place of Origin:: China

Model Number:: HD-U6A

Pixel Pitch:: Any Size, P6mm p2.5mm p10mm

Specification:: Control Card

Display Function:: Video

Tube Chip Color:: single/dual color

Screen Dimension:: 320*32

Control range:: 64*2048 for single color; 64*1024 for dual color

Extend Function:: Support for remote control, such as temperature, humidity, brightness

Scan mode:: Static, 1/2, 1/4, 1/8 and 1/16 common modes

FLSH capacity:: 2M Byte(able to expand to 8M Byte)

Quick Details

Application:: Indoor/outdoor

Brand Name:: Huidu

Color:: single/dual color

Panel Size:: Customized

Place of Origin:: China

Model Number:: HD-U6A

Pixel Pitch:: Any Size, P6mm p2.5mm p10mm

Specification:: Control Card

Display Function:: Video

Tube Chip Color:: single/dual color

Screen Dimension:: 320*32

Control range:: 64*2048 for single color; 64*1024 for dual color

Extend Function:: Support for remote control, such as temperature, humidity, brightness

Scan mode:: Static, 1/2, 1/4, 1/8 and 1/16 common modes

FLSH capacity:: 2M Byte(able to expand to 8M Byte)

Product Description

Huidu led control system hd-u6a single color control card dot matrix led display

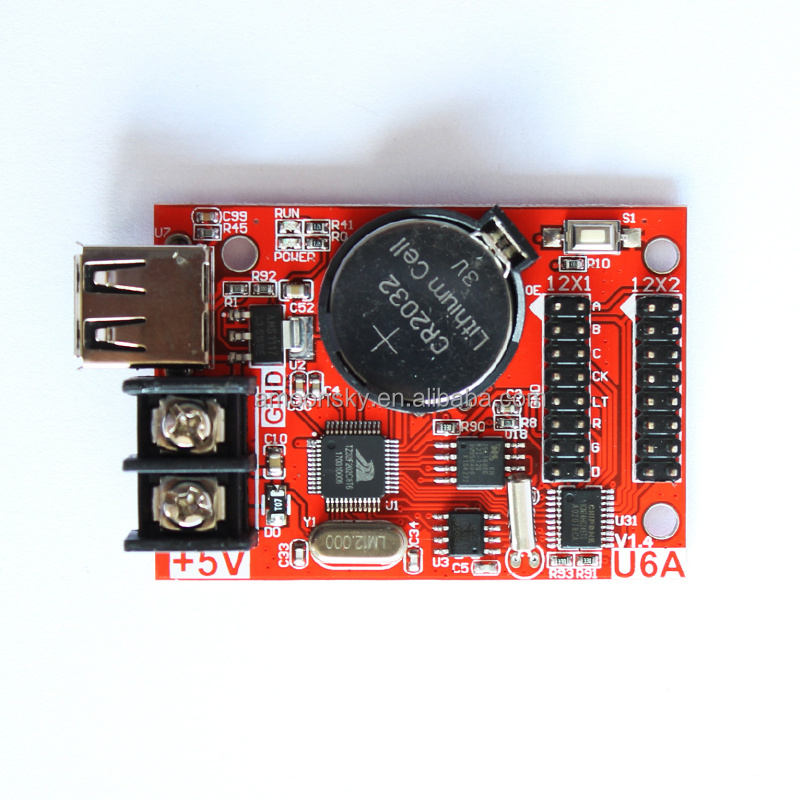

Detailed Images

Types of control card	Single Color/ Dual Color /Tricolor
Control range	Single color: 320W*32H
Scan modes	Static, 1/2, 1/3,,1/4, 1/5 ,1/6,1/8,1/16 common modes etc
Communication type	U-Disk
Power supply	+4.2-5.5V
Power consumption	≤0.5W
Work environment	-40℃--75℃
Installation dimension	77(W)*55 (H)(mm)
Application Range	Used indoor outdoor, semi-outdoor, Led Pharmacy Cross signs Showing text, animation, time, clock etc
Languages	Support All languages
Communication distance	10-30meter
Application Software	Software HD2016

Details Parameter

Details Parameter	Details Parameter
Flash Capacity	2MByte
Communication Port	U-Disk updated programs
Signal Port	2 OF HUB12
Program Quantity	1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)
Area Quantity	8 areas with separate zone, and separated special effects and border
Display Showing	Text, Hypertext (GIF, Picture, Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc
Program Modes	Playing by Sequence or by Remoter or by Button
Display effects	1.Support all languages(Software :HD2016) 2.Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64) 3. Border functions of Program border, area border and Custom design border. 4.Add Countdown /Count up, Button Countdown / Count up 5.Add Text Rotation of 90°,180°, 270° for display Text function of Hollow,Stroke etc 6.Add payment collection function 7.Updated program by U-disk 8. More than 200 types showing effects 9.Support Second develop SDK 10.More high brightness, more moving speed ,more refresh
Time / Clock /Count Function	1. Support Digital Clock/ Dial Clock / Lunar Time/ 2. Countdown /Count up, Button Countdown / Count up 3. The font,size,color and position can be set freely 4. Support multiple time zones
Digit Function	1.Scoring device,Calculate by piece. 2.From Minimum to Maximum, from Maximum to Minimum
Expand function	Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs
Brightness Control	Brightness setting by Custom, Automatic (weld sensor), by time period regulation
Automatic close /open display	Support close /open display by time automatically

Our Service

Training	Provide free technology support by phone or email. free training to customer if necessary
Warranty	A, 2 years quality warranty B, All the life time for Technology support , system update . C, We guarantee that the equipment we provide are brand new, complete and unused before delivery .
Remark	Provide customize mode, OEM & ODM welcomed .
