Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
TY-SC-08
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
2 years, 2 Years
-
Product name:
-
Solar Charger controller 40A 60A
-
Function:
-
MPPT Solar charge Controller
-
Charge mode:
-
Maximum Power Point Tracking
-
Rated Voltage:
-
12v/24/
-
Certification:
-
CE
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Display:
-
LCD Screen
-
System voltage:
-
12V/24V Auto
-
Rated Current:
-
40A/ 60A
Quick Details
-
Type:
-
MPPT
-
Application:
-
Charger Controller, Solar System Controller
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
TY-SC-08
-
Max PV Voltage:
-
100V
-
Certificate:
-
CE
-
Warranty:
-
2 years, 2 Years
-
Product name:
-
Solar Charger controller 40A 60A
-
Function:
-
MPPT Solar charge Controller
-
Charge mode:
-
Maximum Power Point Tracking
-
Rated Voltage:
-
12v/24/
-
Certification:
-
CE
-
Battery type:
-
Lead-acid/Lithium/LiFePO4 Battery
-
Display:
-
LCD Screen
-
System voltage:
-
12V/24V Auto
-
Rated Current:
-
40A/ 60A
Product Description
|
Product Name
|

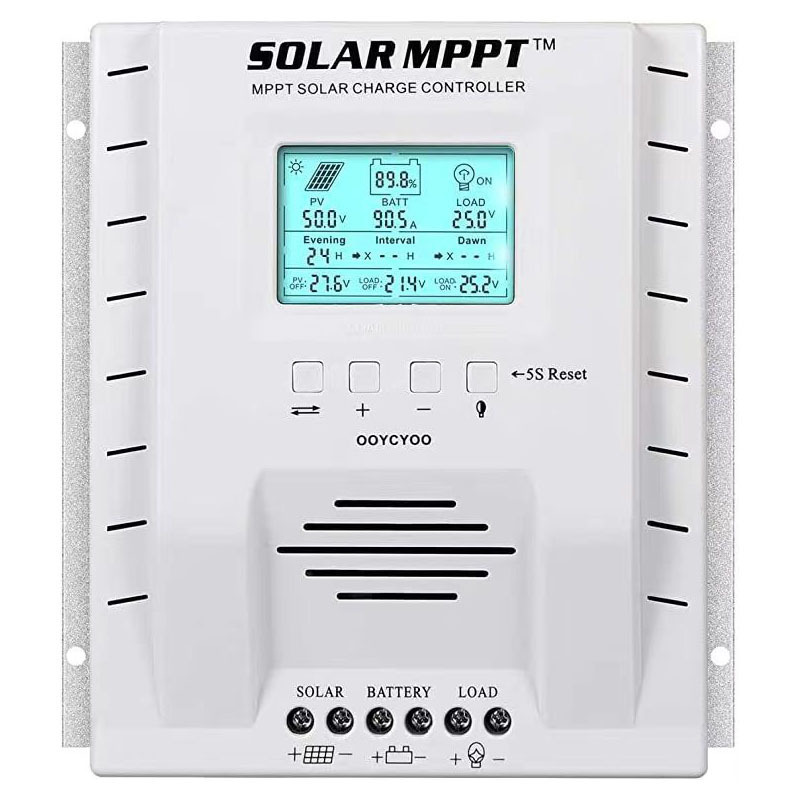

Tengyu Tech Solar Controller MPPT 40A 60A Solar Charge Controller 12V/24V Maximum input 100V
|
|
Max Amp
|
60 A
|
|
Function
|
manual solar charge controller
|
|
Package
|
Neutral package
|
Product Description
P series MPPT has such advantages:
All kinds of real-time data are displayed on a display (full screen display parameters), which is convenient for users to check.
The input voltage of solar panels is up to 100V, which is suitable for solar panels of various specifications.
The power supply adopts ultra-low power consumption chips to reduce static standby power consumption and reduce energy
consumption.
USB 5V output for charging mobile phones and fans
Dual time control mode
Good heat dissipation performance
Product Introduction
|
LCD screen display
|
|
Battery reverse discharge protection
|
|
|
|||
|
Easy operation interface
|
|
Battery reverse polarity protection
|
|
|
|||
|
MPPT+ PWM charging mode
|
|
Battery under voltage protection
|
|
|
|||
|
Parameter user can reset Overload
|
|
Short-circuit protection
|
|
|
|||
|
A key to restore the factory settings
|
|
USB 5V charging (for 500mA) for mobile phone(Only for M30)
|
|
|
|||
|
A key to open and close the load
|
|
Automatic temperature compensation function
|
|
|
|||
TECHNICAL PARAMETERS
|
Model
|
TY-P40
|
TY-P60
|
|
|
Maximum power current
|
40A
|
60A
|
|
|
Installation Line mm2
|
8mm2
|
10mm2
|
|
|
Installation Line (AWG)
|
10#(AWG)
|
10#(AWG)
|
|
|
Weight
|
1300g
|
1400g
|
|
|
Dimensions
|
195×195×80 mm
|
|
|
|
Peak Power of Solar Cell Panel (Max Wp)
|
50W-520W
|
≤750W
|
|
|
Battery Capacity Configuration
|
≥400AH
|
≥600AH
|
|
Specification
|
Battery float voltage
|
|
13.8V 12V system /27.6V 24V system
|
|
|
|||
|
Battery under voltage) protection
|
|
10.6V 12V system /21.2V 24V system
|
|
|
|||
|
Battery (under voltage) recovery voltage
|
|
12.6V 12V system /25.2V 24V system
|
|
|
|||
|
System Load Loss :
≤13mA
|
|
Loop Buck:≤ 100mV
|
|
|
|||
|
Operating Temperature
|
|
-10~60°C
|
|
|
|||
|
Storage Temperature
|
|
-30~70°C
|
|
|
|||
|
Humidity requirements
|
|
≤90%, No condensation
|
|
|
|||
|
Temperature compensation
|
|
-4mV/Cell/°C
|
|
|
|||
|
Temperature Probe (built components)
|
|
NTC 100K thermistats
|
|
|
|||
|
Maximum open circuit voltage of the solar panel
|
|
18V-24V 12V system 36V-48V 24V system)
|
|
|
|||
|
Solar panels maximum open circuit voltage (V)
|
|
≤96V
|
|
|
|||
Installation and Execution Standards
|
System
|
Solar Panel
|
|
Max. PV Input Power
|
|
||
|
Battery Voltage
|
Open Circuit Voltage
|
Max. Power Voltage
|
40A
|
60A
|
||
|
12V System
|
≤48V (Voc)
|
≤36V (Vmp)
|
520W
|
750W
|
||
|
24V System
|
≤96V (Voc)
|
≤72V (Vmp)
|
1040W
|
1500W
|
||
Product Usage
