Quick Details
-
Brand Name:
-
Clear
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
mobile welding smoke purifier
-
Application:
-
Industrial welding smoke absorber
-
Certification:
-
CE Certification
-
Voltage:
-
3P 380V/220V
Quick Details
-
Weight (KG):
-
200
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
China
-
Brand Name:
-
Clear
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
mobile welding smoke purifier
-
Application:
-
Industrial welding smoke absorber
-
Certification:
-
CE Certification
-
Voltage:
-
3P 380V/220V
Outside Size |
8 00* 60 0*1 7 00mm |
Arm |
1set of arm, Φ 160*200 0mm ,with horn mouth for collecting the smoke |
Wall panel |
Carbon steel board with powder coating , the main body is 1.2mm thick |
Air exhaust s ystem |
1 set of 2.2kw outlay motor fan. Each fan air flow capacity:3000m ³ /h ,pressure is 1720-1580Pa, speed is 2900r/min,fan is China Yinniu brand |
Filters |
2pcs filter cartridge inside , each filter size: 3 25 * 500 mm , 0.3um, with pulse shaking device for clean the filter in time. Air compressor pressure:0. 6 -0. 8 MPa,valve pressure:0. 6 Mpa . Finial filter rate is 98% |
Control system |
Electric control panel.P ower o n/ o ff c ontrol , f an controls, p ulse controls, light control,e mergency stop .The electric components use Delixi Brand |
Bottom wheel |
Four universal wheels on bottom for moving the machine easily |
Power |
2.2k w, 220V 1phase 50Hz and 380V 3phase 50Hz |

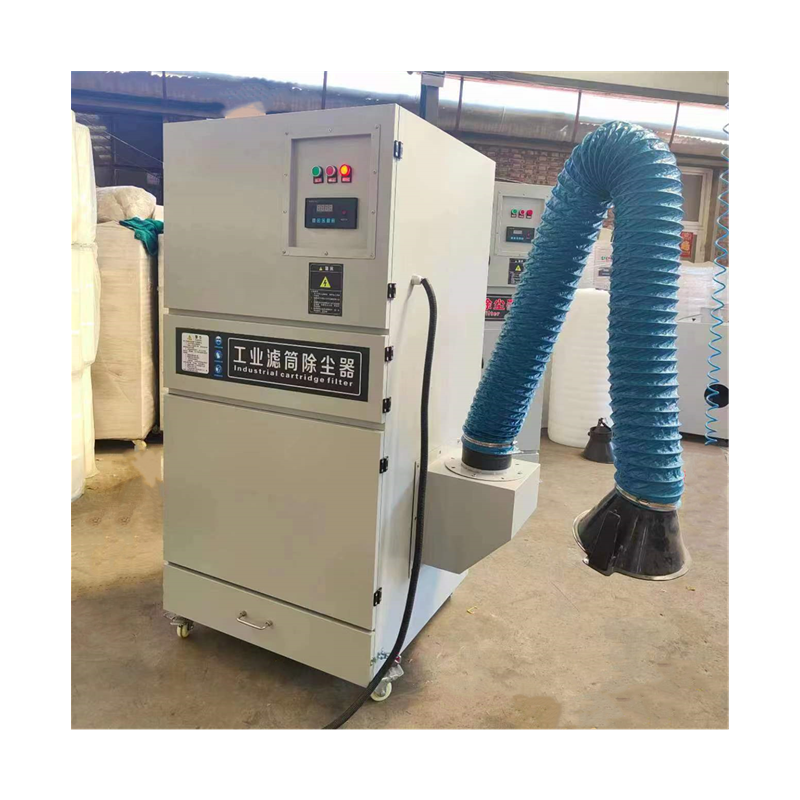

Products photos:
Production photos:
Loading photos:
