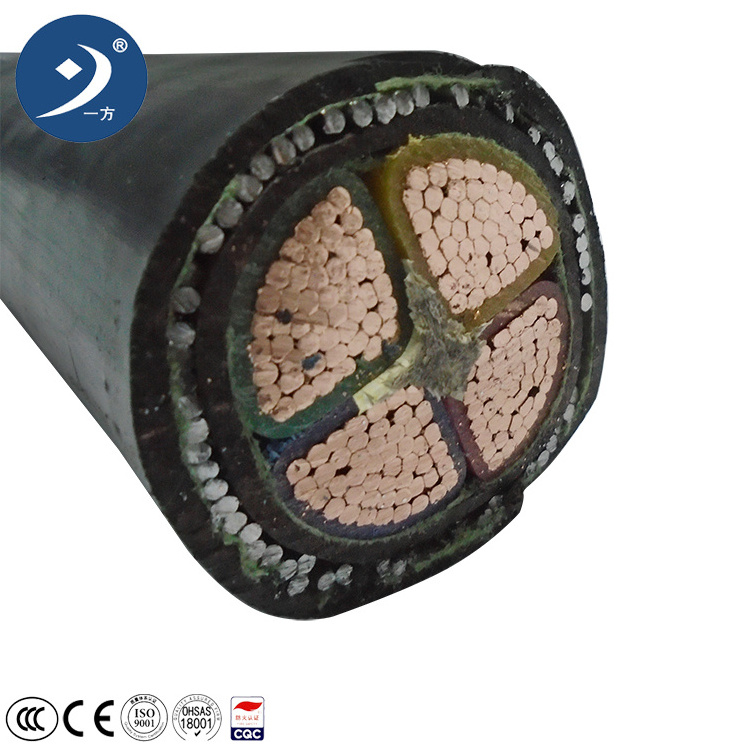

4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale

4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale

FOB Reference Price: Get Latest Price
≥500 Meters
US $0.1
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Jacket:
PVC PE
Place of Origin:
Henan, China
Conductor:
Copper /Aluminum
Insulation:
XLPE
Sheath:
PVC PE
Armour:
Steel Tape / Steel Wire
Core:
1,2,3,4,5 Core and custom
Rated voltage:
0.6 / 1KV and custom
Material:
Copper + PVC + PVC
Feature:
Excellent Resistance
Product name:
waterproof copper armored power cable
Keywords:
4x150mm2 power cable

Quick Details

Insulation Material:
XLPE
Application:
Construction
Conductor Material:
Copper, Aluminum
Jacket:
PVC PE
Place of Origin:
Henan, China
Conductor:
Copper /Aluminum
Insulation:
XLPE
Sheath:
PVC PE
Armour:
Steel Tape / Steel Wire
Core:
1,2,3,4,5 Core and custom
Rated voltage:
0.6 / 1KV and custom
Material:
Copper + PVC + PVC
Feature:
Excellent Resistance
Product name:
waterproof copper armored power cable
Keywords:
4x150mm2 power cable
4x150mm2 power cable and waterproof copper armored power cable 4 x 25mm2 for sale
Product Description
Type
No. of Core
Nominal cross-section
Cu(AL)/XLPE/PVC(PE)

Cu(AL)/XLPE/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE)
1
1.5-1000
Cu(AL)/XLPE/STA/PVC(PE)

Cu(AL)/XLPE/SWA/PVC(PE)
2,3,4,5
1.5-400
Package
3+1,4+1,3+2
2.5-400
4x150mm2 power cable
XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmental stress resisting aiti-chemical, corrosion, and simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.

Various of flame-retardant XLPE cable can be manufactured with three technology .The flame-retardant cable covers all kinds of low-smoke, halogen free, and non-smoke non-halogenated and three classes of A,B,C.
Conditions and Paramenters
Service conditions and Parameters of Cable
4x150mm2 power cable is applied to fixed installtion for rated voltage 0.6/1KV of power transportation and distribution line.Max. Rated Temperature of conductor: Nominal Operating 90℃.

Short circit: (Max.for 5 sec.) 250℃ Temperature of laying, in air 25℃ Underground 15℃

For laying, single core, triangle laying for three cables.Depth of laying in direct:100cm Coefficient of thermal resistivity of soil 100℃.cm/w

The cable can be laid without drop restriction, and the environment temperature shall not be lower than0℃. Single core, steel tape armoured cable should be only aplied to direct-circuit line.

For nominal insulation thickness, size of armour, over-diameter, weight and current rating of retardantflamecable of class A,B,C, you should refer to the value of general cable.
Voltage test

Each drum of finished cable should withstand power frequency voltage 3.5kV for 5 minutes,the insulation is not breakdown. Service conditions and operation parameters of Cable: The cable is applied to fixed installation for rated voltage 0.6/1kV of power transportation and distribution line. Max. rated temperature of conductor. nominal operating 90℃ Short circuit: max. for 5 sec.250℃ The cable can be laid without drop restriction, and the environment temperature shall not be lower than 0℃.

Company Introduction
Yifang Electric group mainly specialized in wire&cables,including designment,production and sale.

Products are mainly covering low,medium,high voltage(1KV to 220KV) XLPE Insulated power cable,PVC insulated power cable,ABC cable,building cable control cable,rubber cable welding cable Etc.

Our XLPE cable can be manufactured according to the company’s specification which is equivalent to IEC 60502,IEC60332,IEC60754. Some indexes are superior to above international standard.

More than 15 years of production experience and 10 year ’ s export experience, have strong production capacity.
Packing&Shipping
We have ong-term cooperated shipping agent to provide cheap sea shipping. sample oreer have TNT,DHL,UPS OR EMS etc for you choose,and we also according your requirement. Usually our lead time is 3 - 20 working days for 4x150mm2 power cable
Our Advantages

1. Professional technical engineer to make you a suitable design,provide custom sevice.

2. We have strong production to provide the best products with reasonable price.

3. We have more than 15 years of production experience, and more than 10 year’s export experience,solve any problem for you.


4.provide free sample for you 4x150mm2 power cable
FAQ
1.Q:Are you a factory or trading company?
A: Manufacturing base in Henan ,China, with more than 500 workers.

2.Q:How can I visit there?
A: Sure,If you need,we will arrange the driver to pick you up.

3.Q:How can I get some samples?
A: Contact me and send messages on below,Determin sample and address for shipping.

4.Q:Have you ever supplied cables to our country?
A: Yifang Cables have been sold to over 100 countries and regions in the world. can you contact me for details.

5.Q:What is your MOQ?
A: MOQ Normally 500 meters for big diameter cables.Please contact me for detail info if you have specific cable requirement.

6. Q:When can I get the price?
A: Usually quote within 6 hours after we get your inquiry. you can send messages below, click"send"

7.Q:How long is your delivery time?
A: According to your order's quantity.Usually our lead time is 3 - 20 working days.
