①UV LED Lamp ②Anti-static,Anti-crash ③Taiwan HIWIN guide rail
④Emergency Stop Button ⑤Industrial Print head ⑥Universal Wheel
⑦Large capacity Ink tank ⑧ Ink Level Alarm System
- Product Details
- {{item.text}}
Quick Details
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
3.90(L)X1.85(W)X1.30(H)m
-
Weight:
-
1000 KG
-
Product name:
-

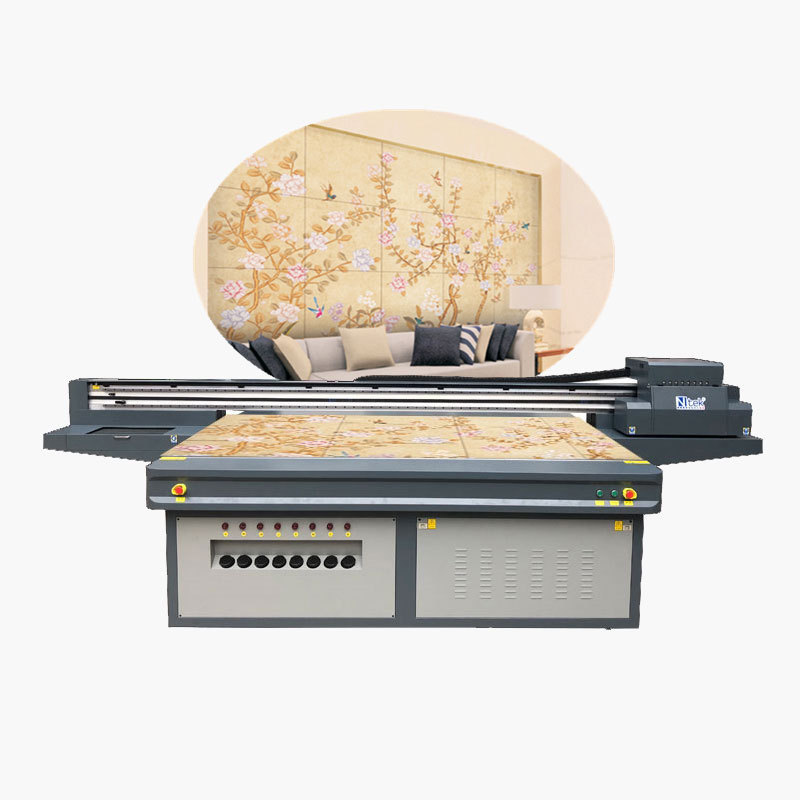

NTEK 3D UV Inkjet Printer Automatic Wall Painting Machine
-
Print head:
-
Ricoh Gen5
-
Lamp:
-
LED UV Lamp
-
Print speed:
-
12-30sqm/h
-
Color:
-
CMYK+W+Varnish
-
Printing Material:
-
Flat Materials
-
Software:
-
Photoprint
-
Showroom Location:
-
Egypt
Quick Details
-
Print Dimension:
-
2500*1300mm
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Ink Type:
-
UV ink
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Ntek
-
Voltage:
-
110V/220V
-
Dimensions(L*W*H):
-
3.90(L)X1.85(W)X1.30(H)m
-
Weight:
-
1000 KG
-
Product name:
-
NTEK 3D UV Inkjet Printer Automatic Wall Painting Machine
-
Print head:
-
Ricoh Gen5
-
Lamp:
-
LED UV Lamp
-
Print speed:
-
12-30sqm/h
-
Color:
-
CMYK+W+Varnish
-
Printing Material:
-
Flat Materials
-
Software:
-
Photoprint
-
Showroom Location:
-
Egypt
Product Description
2513L 3d uv printer flatb uv printer
Flatbed printer yc2513l
can widely print on glass, ceramic tile, PVC, aluminum sheet, wood MDF board, metal panel, billboard, acrylic panel, paper board, foam board, corrugated cardboard, leather, flex banner, canvas, mesh paper, sticker, wallcoverings, etc.
Printhead
Ricoh Gen5/Gen6/
KM1024I/SPT1024GS printhead
2-16 units
Print Effect
Color, white, varnish and 3D
embossing effect optional
Printing Areas
Glass/Ceramic/Decoration/
Advertising&Sign industry
Product Specification
|
Product Name & Model
|
ricoh gen5 uv printer YC2513L
|
|
|
|
|||
|
Printhead Type
|
RICOH GEN5/ RICOH GEN6/ KONICA 1024I/ SEIKO 1024GS
|
|
|
|
|||
|
Printhead Number
|
2-16 heads
|
|
|
|
|||
|
Ink Characteristics
|
UV Curing Ink (VOC Free )
|
|
|
|
|||
|
Ink Reservoirs
|
Refillable on the fly while printing/2500ml per color
|
|
|
|
|||
|
LED UV Lamp
|
More than 30000-hours life
|
|
|
|
|||
|
Printhead Arrangement
|
C M Y K LC LM W varnish optional
|
|
|
|
|||
|
Printhead Cleaning System
|
Automatic Cleaning System
|
|
|
|
|||
|
Guide Rail
|
TAIWAN HIWIN/ THK optional
|
|
|
|
|||
|
Working Table
|
Vacuum Sucking
|
|
|
|
|||
|
Printing Size
|
2500*1300mm
|
|
|
|
|||
|
Print Interface
|
USB2.0/ USB3.0/ Ethernet Interface
|
|
|
|
|||
|
Media Thickness
|
0-100mm, higher can be customized
|
|
|
|
|||
|
Printing Resolution& Speed
|
360*900dpi
|
4pass
|
15-33sqm/h
|
|
|||
|
Printing Resolution& Speed
|
720*900dpi
|
6pass
|
10-22sqm/h
|
|
|||
|
|
720*1200dpi
|
8pass
|
8-18sqm/h
|
|
|||
|
Life of Printed Image
|
3 years (outdoor),10years (indoor)
|
|
|
|
|||
|
File Format
|
TIFF, JPEG, Postscript, EPS, PDF etc.
|
|
|
|
|||
|
RIP Software
|
RipPrint/ Photoprint
|
|
|
|
|||
|
Power Supply
|
220V 50/ 60Hz (10%)
|
|
|
|
|||
|
Power
|
3100W
|
|
|
|
|||
|
Operation Environment
|
Temperature 20 to 30℃,Humidity40% to 60%
|
|
|
|
|||
|
Machine Dimension
|
4400*2100*1400mm
|
|
|
|
|||
|
Packing Dimension
|
4600*2260*1710mm
|
|
|
|
|||
|
Weight
|
1500kg
|
|
|
|
|||
|
Warranty
|
12 months exclude the consumables like printhead
|
|
|
|
|||
2513
Uv printer varnish
2513 Flatbed
UV
Printer-Machine Size : 4400*2100*1400mm
2513 UV Printing Machine-Each Side
Printer details
1. Ricoh G5/G6 Print Head
V
arnish printer
opt gray level Ricoh Gen5/Ricoh Gen 6 stainless steel internal heating
industry head, with high performance in speed
and resolution, suit for long-time working,
24 hours running.
industry head, with high performance in speed
and resolution, suit for long-time working,
24 hours running.
2. High Mute Drag Chain
Our 2513 digital printing machine utilize high mute
drag chain on X-axis, ideal for protection of
cable and tubes under high speed motion. With
high performance, low noise, make the working
environment more comfortable.
drag chain on X-axis, ideal for protection of
cable and tubes under high speed motion. With
high performance, low noise, make the working
environment more comfortable.
3. Hard Anodized Vacuuming Platform
Our 2513
flatbed printer apply the hard anodized
vacuum suction platform, which can prevent
scratches by rigid materials, avoid damaging
the platform by rigid materials.
scratches by rigid materials, avoid damaging
the platform by rigid materials.
4. Taiwan HIWIN Guide Rail
Our 2513 flatbed priner adopt double guide rail
on Y-axis, compared with belt one, it's not easy to
loose, printer movement more stable, ensure the
printing resolution
5. All Steel Frame Structure
Our 2513 inkjet printer body structure is welded
with 8cm*16cm square steel, millbed by big gantry
milling machine, and heated by temering oven,
will not easy to deform.
milling machine, and heated by temering oven,
will not easy to deform.
6. High Quality Motor
Leadshine and Panasonic motor optional, with
one year quality assurance. Adopt big power,
which can endure our flatbed printer long time
work and not burn out.
one year quality assurance. Adopt big power,
which can endure our flatbed printer long time
work and not burn out.
Ink Tank
Secondary Ink Cartridge
Temperature Control System
Universal Wheel
Printhead Anti-Colision
Imported UV LED Lamp
Registration Pin
Anti-Static Device
Automatic Height Measurement
Printing Samples
CMYK LC LM White Varnish optional
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440dpi, the new variable inkdrop technology, provide 7/14/21pl ink droplet, achieve high speed and high printing resolution
Phone Case
Decorative Painting
Mouse Pad
Wood Panel
Plastic
Advertising Sign
Acrylic
Ceramic Tile
Glass
