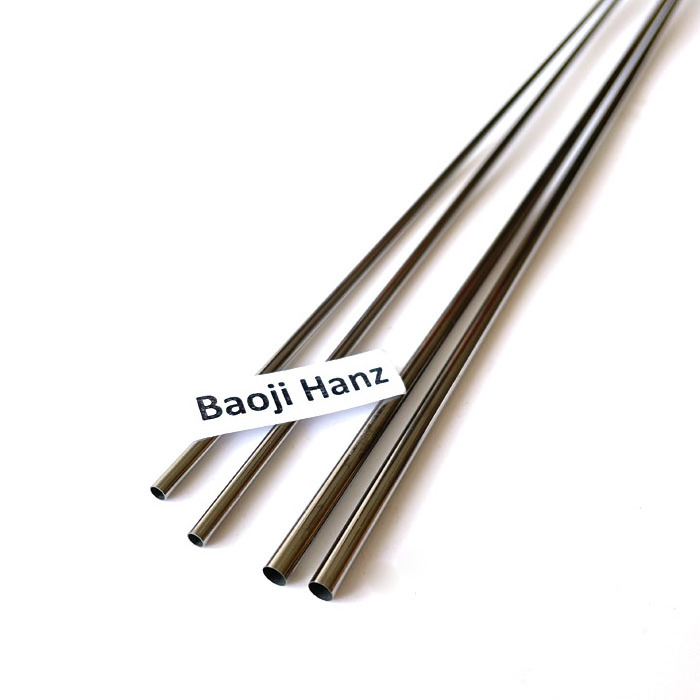

Super elastic Nitinol tube for medical stents

Super elastic Nitinol tube for medical stents

FOB Reference Price: Get Latest Price

≥3 Pieces

US $50

≥300 Pieces

US $20

≥500 Pieces

US $14

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: NiTi-T02

Material:: nickel and titanium alloy, Nitinol Ti-Ni Alloy, Nitinol Ti-Ni Alloy

Outer Diameter:: as request

Length:: as request

Application:: Medical, industry, Medical Treatment

Grade:: nickel and titanium alloy, Nitinol Ti-Ni Alloy

Wall Thickness:: Min 0.5mm

Inside Diameter:: Max 45 mm, 0.05-12mm

MOQ:: 1 piece

Sample:: Avaiable

Feature:: Super elastic, shape memory, high strength

Surface Color:: bright

Shape:: nitinol tube, nitinol pipe

Package:: Plastic Bag+Carton

Key words:: Nitinol

Quick Details

Standard:: ASTM F2063, ASTM F2063-12/18, ASTM F2063, ASTM F2063-12/18

Place of Origin:: Shaanxi, China

Brand Name:: Baoji Hanz

Model Number:: NiTi-T02

Material:: nickel and titanium alloy, Nitinol Ti-Ni Alloy, Nitinol Ti-Ni Alloy

Outer Diameter:: as request

Length:: as request

Application:: Medical, industry, Medical Treatment

Grade:: nickel and titanium alloy, Nitinol Ti-Ni Alloy

Wall Thickness:: Min 0.5mm

Inside Diameter:: Max 45 mm, 0.05-12mm

MOQ:: 1 piece

Sample:: Avaiable

Feature:: Super elastic, shape memory, high strength

Surface Color:: bright

Shape:: nitinol tube, nitinol pipe

Package:: Plastic Bag+Carton

Key words:: Nitinol

Product Description

Nitinol (Nickel and titanium alloy) introduction

Nickel Titanium (also known as Nitinol or NiTi) is in the unique class of shape memory alloys. A thermoelastic martensitic phase
transformation in the material is responsible for its extraordinary properties. Nitinol alloys are typically made of 55%-56%
Nickel and 44%-45% Titanium. Small changes in composition can significantly impact the properties of the material.

Specification

Superelastic nitinol alloy

Grade: TiNi-SS

Transformation temperature AF : -5℃~5℃

Standard: customer specified or industry standard

Advantage: Characterized by extraordinary recoverable strains and kink resistance.

Shape memory nitinol alloy

Grade: Ti-Ni-01 / Ti-Ni-02

Transformation temperature AF : 20℃~40℃ / 45℃~90℃

Standard: customer specified or industry standard.

Advantage: Valued for the Nitinol's capacity to recover a pre-set shape when heated above its transformation temprature.

Medical Nitinol alloy

Grade: TiNi-SS

Transformation temperature AF : 33+/-3℃

Standard: ASTM F2063

Advantage: Medical Use, Such as medical machines, orthodontics and so on.

Condition	UTS σb MPa	Elongation δ %	Upper Plateau Stress σload MPa	Permanet Set after 6% strain %	Active Af ℃
Superelastic	> 1000	≥ 10	≥ 380	≤ 0.5	< 20

Nominal OD or ID in mm (in.)	Permissible Variation from Nominal in mm (in.)
≤ 1.5 (0.059)	± 0.025 (0.001)
≤ 6.5 (0.256)	± 0.050 (0.002)
≤ 12 (0.472)	± 0.075 (0.003)
