- Product Details
- {{item.text}}
Quick Details
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
LYTX-1260RZ
-
Product name:
-
Ceramic Fiber Insulation Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Brand name:
-
LUYANGWOOL
-
Manufacturer:
-
LUYANG
-
Product Keywords:
-
Insulation Ceramic Wool Aluminum Silicate Fiber
-
Keywords:
-
Ceramic Fibre Materials
Quick Details
-
Chemical Composition:
-
Al2O3:42-47%, SiO2:52-57%
-
Ultimate Strength (≥ MPa):
-
0.4Mpa
-
Working Temperature:
-
1050 ℃
-
Fiber Diameter:
-
3-5μm
-
Thermal Conductivity:
-
0.06-0.12 w/m.k
-
Place of Origin:
-
Shandong, China
-
Width:
-
50--1220 mm(1.97--48.03")
-
Length:
-
1000 mm min(39.37")
-
Shrinkage (1800℉, 3h):
-
-
-
Brand Name:
-
LUYANGWOOL
-
Model Number:
-
LYTX-1260RZ
-
Product name:
-
Ceramic Fiber Insulation Paper
-
Classification Temperature (℃ ):
-
1260/1350
-
Al2O3:
-
42-47/44-50
-
SiO2:
-
52-57/49-55
-
Density (kg/m3):
-
200/240
-
Tensile Strength (MPa):
-
0.4/0.7
-
Brand name:
-
LUYANGWOOL
-
Manufacturer:
-
LUYANG
-
Product Keywords:
-
Insulation Ceramic Wool Aluminum Silicate Fiber
-
Keywords:
-
Ceramic Fibre Materials
Products Description
LUYANGWOOL
®PAPER
Luyangwool
®

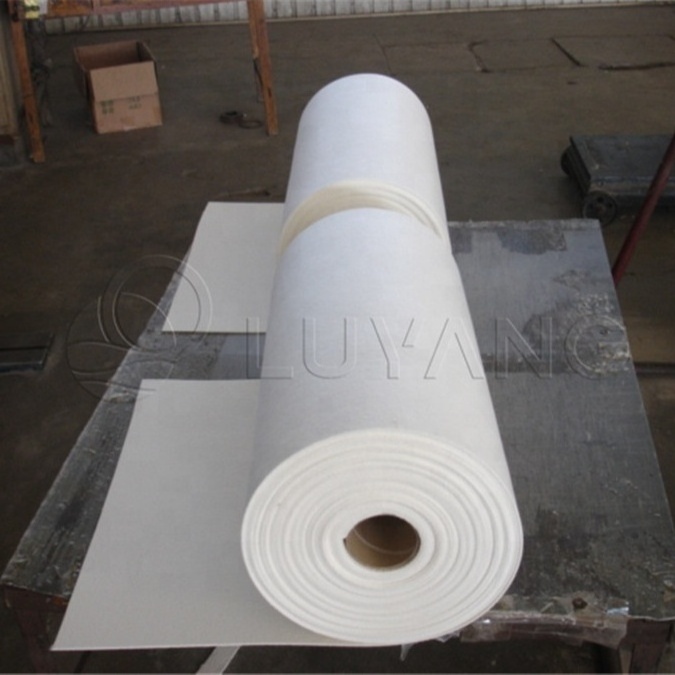

paper is manufactured by blending Luyangwool ® bulk, binders, and additives.The specialized paper-making process is used to form uniform and flexible paper.Luyangwool ® paper is easy to be handled and cut.Luyangwool ® paper can be used in a wide range of applications as thermal insulation.It is especially suited to used in gaskets and as a parting medium.
Features
Excellent thermal shock resistance
Can be machined,cut and shaped easily
High flexibility
Low thermal conductivity
Good dielectric strength
Can be machined,cut and shaped easily
High flexibility
Low thermal conductivity
Good dielectric strength
Typical Parameters
|
Description
|
LUYANGWOOL® STD PAPER
|
LUYANGWOOL® HD PAPER
|
||
|
Classification Temperature (℃ )
|
1260
|
1350
|
||
|
Chemical Composition (%)
|
|
|
||
|
Al2O3
|
42-47
|
44-50
|
||
|
SiO2
|
52-57
|
49-55
|
||
|
Color
|
White
|
White
|
||
|
Density (kg/m³)
|
200
|
240
|
||
|
Tensile Strength (MPa)
|
0.4
|
0.7
|
||
|
Loss of Ignition (%)
|
≤10
|
≤6
|
||
|
Thermal Conductivity (W/m·K)
|
|
|
||
|
200℃
|
0.06
|
0.06
|
||
|
400℃
|
0.09
|
0.08
|
||
|
600℃
|
0.13
|
0.13
|
||
|
800℃
|
0.20
|
0.19
|
||
|
1000℃
|
-
|
0.29
|
||
|
1200℃
|
-
|
0.43
|
||
