Quick Details
-
Dimensions(L*W*H):
-
4200x2000x2950mm
-
Weight:
-
4000 KG
-
Print Dimension:
-
600-1000mm
-
Print Speed:
-
5-50m/min
-
After-sales Service Provided:
-
Overseas Service Provided
-
Certification:
-
ISO9001 CE
-
Printing color:
-
1/2/3/4/5/6/7/8 colors
-
Max printing width:
-
600-1000mm
-
Range of printing length:
-
200-1100mm
-
Speed:
-
0-50m/min
-
Plate Thickness:
-
1.7mm 2.28mm 2.84mm 3.94mm
-
Ink:
-
Water Ink
-
Lift and lower plate cylinder:
-
Hydraulic
-
Tension:
-
Auto Tension Controller
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Zhuxin
-
Voltage:
-
220V/380V
-
Dimensions(L*W*H):
-
4200x2000x2950mm
-
Weight:
-
4000 KG
-
Print Dimension:
-
600-1000mm
-
Print Speed:
-
5-50m/min
-
After-sales Service Provided:
-
Overseas Service Provided
-
Certification:
-
ISO9001 CE
-
Printing color:
-
1/2/3/4/5/6/7/8 colors
-
Max printing width:
-
600-1000mm
-
Range of printing length:
-
200-1100mm
-
Speed:
-
0-50m/min
-
Plate Thickness:
-
1.7mm 2.28mm 2.84mm 3.94mm
-
Ink:
-
Water Ink
-
Lift and lower plate cylinder:
-
Hydraulic
-
Tension:
-
Auto Tension Controller

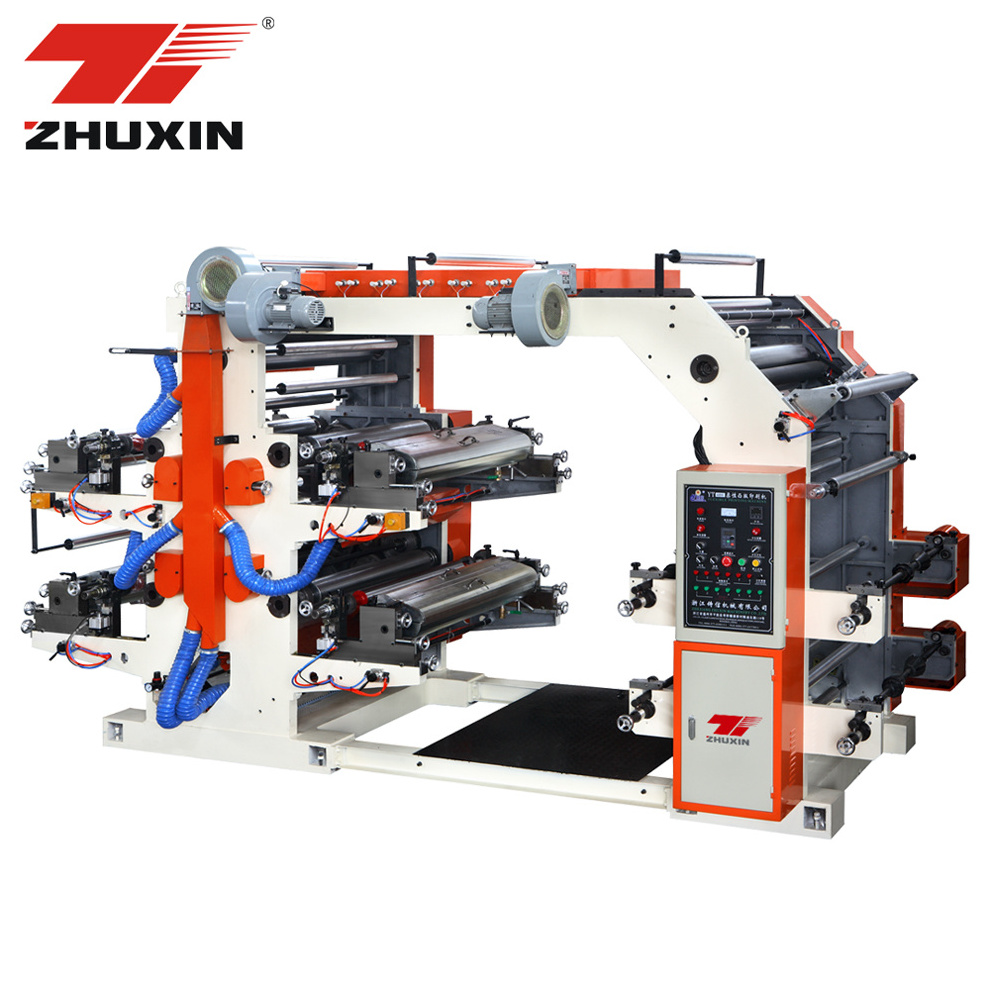

4 Color Flexo Printing Machine
Main usage:
The machine adopts advanced computer control technology, which is easy to operate and the operation process is very simple. And, this printing machine has extremely high printing efficiency, printing speed is very fast, and printing quality is also very high. The printing effect of this printing machine is stable and reliable, with very strong adaptability. It can print different types of materials, such as plastic film, paper, etc., so it has a wide application market.
Product Description
|
Model
|
YT-4600
|
YT-4800
|
YT-41000
|
|
Max Width of Substrate
|
600mm
|
800mm
|
1000mm
|
|
Max Printing Width
|
560mm
|
760mm
|
960mm
|
|
Range of Printing Length
|
200-1100mm
|
200-1100mm
|
200-1100mm
|
|
Max Diameter of Web
|
Φ450mm
|
Φ450mm
|
Φ450mm
|
|
Printing Speed
|
5-50m/min
|
5-50m/min
|
5-50m/min
|
|
Heating Power
|
10kw
|
15kw
|
20kw
|
|
Total Power
|
15kw
|
15kw
|
25kw
|
|
Outline Dimension(LxWxH)
|
4200x1600x2400mm
|
4200x1800x2400mm
|
4200x2000x2400mm
|
|
Weight
|
3000kg
|
3500kg
|
4000kg
|
|
Plate Thickness
|
2.38mm
|
2.38mm
|
2.38mm
|
