Quick Details
-
Brand Name:
-
Mosslink/OEM
-
Model Number:
-
S1006FPE
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

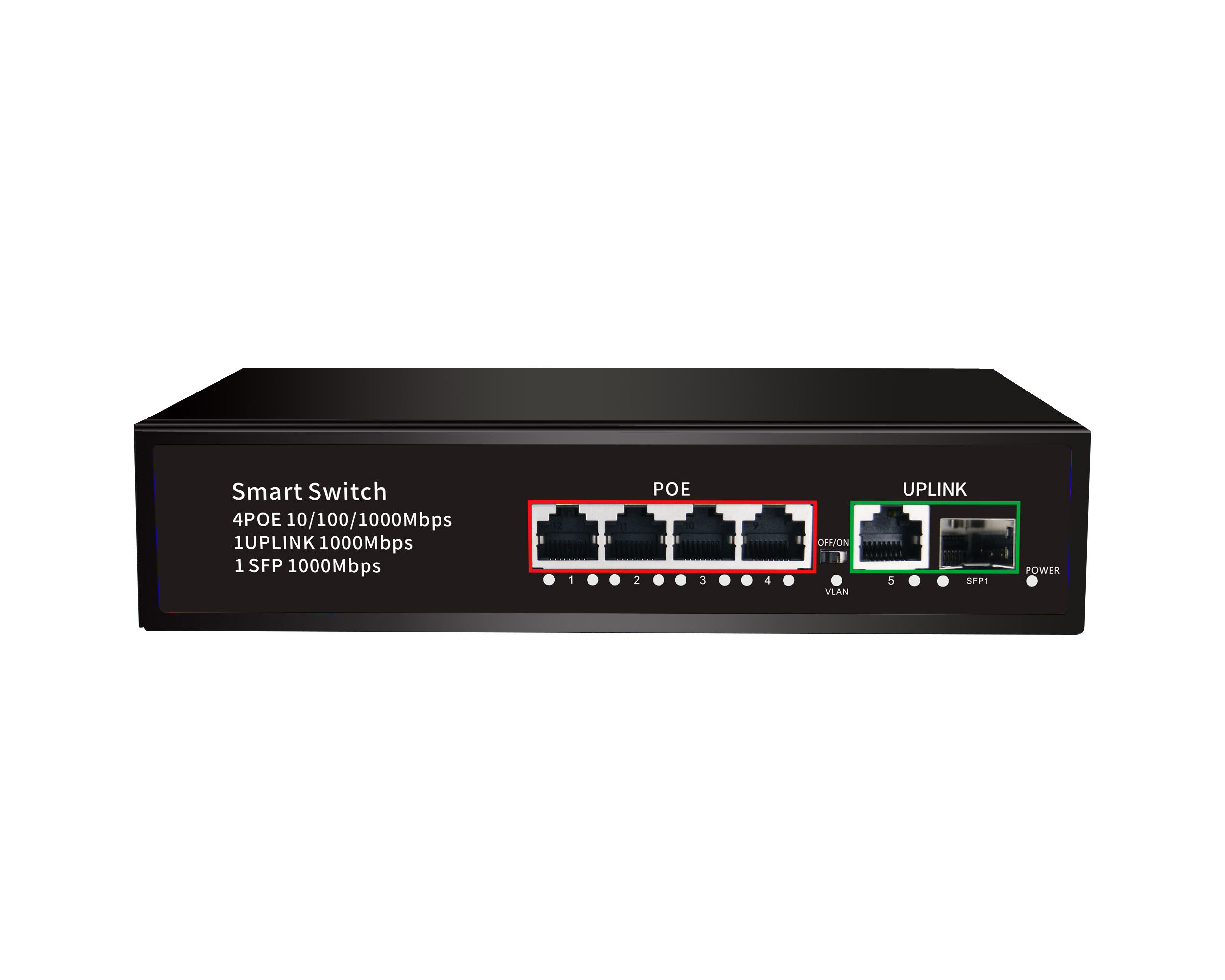

gigabit poe switch 5 port poe For IP Camera
-
PoE Ports:
-
4*10/100/1000Mbps POE Ports
-
Uplink Ports:
-
1*10/100/1000Mbps RJ45 & 1*1.25G SFP Port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System, IP Phone, Wireless AP
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
202mm*140mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
12Gbps
-
Brand Name:
-
Mosslink/OEM
-
Model Number:
-
S1006FPE
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
gigabit poe switch 5 port poe For IP Camera
-
PoE Ports:
-
4*10/100/1000Mbps POE Ports
-
Uplink Ports:
-
1*10/100/1000Mbps RJ45 & 1*1.25G SFP Port
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Applications:
-
CCTV Security System, IP Phone, Wireless AP
-
Power Supply:
-
Input:AC100-240V 50/60Hz
-
PoE Port Power:
-
DC48V~DC56V
-
Dimensions (W x D x H):
-
202mm*140mm*45mm
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Products Description
Product Paramenters
|
Technical parameter list
|
|
|
|
Product Name
|
4 ports Full Gigabit POE Switch(4+1+1)
|
|
|
Product Model
|
SST-DP4ET1ET1F
|
|
|
DATA PIN
|
1/2+,3/6- 4/5+7/8-
|
|
|
Power Supply Type
|
Build In, 1/2+,3/6-
|
|
|
PoE Output Power
|
15.4W/30W
|
|
|
Connector
|
4*1000Mbps POE port, 1*Gigabit RJ45 Uplink & 1*1000mpbs SFP Uplink Port
|
|
|
Network Medium
|
Cat5 (UTP) or more
|
|
|
Technology
|
|
|
|
Network Standards
|
IEEE 802.3i 10BASE-T IEEE 802.3u 100BASE-TX
IEEE 802.3x Flow Control IEEE 802.3af Power over Ethernet |
|
|
PoE power
|
15.4W per port(IEEE802.3af).
Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5 (+) and 7/8(-) |
|
|
Processing types
|
Store-and-forward
Half-duplex back pressure and IEEE 802.3x full-duplex flow control |
|
|
Address database Table Size
|
8K MAC address
|
|
|
Buffer memory
|
48Kb embedded memory per unit
|
|
|
Backboard Bandwidth
|
12Gbps Full duplex
|
|
|
Network Latency
|
Less than 20us for 64 byte frames in store-and-forward mode for 100Mbps to 100Mbps transmission
|
|
|
Power
|
|
|
|
Input
|
52V 4.8A 72W
|
|
|
PoE power consumption
|
15.4W per port(IEEE802.af/at)
|
|
|
Overload current protection
|
Present
|
|
|
Mechanical
|
|
|
|
Casing
|
Metal
|
|
|
Installation
|
DESKTOP/Rack mounting with Bracket
|
|
|
Interface
|
|
|
|
LED Indicators
|
System: Power, PoE Maximum power
Per port: Link, Activity, Speed, PoE active, PoE error |
|
|
Environment specification
|
|
|
|
Operating temperature
|
-10-55℃(32-104℉)
|
|
|
Storage temperature
|
-40-70℃(14-158℉)
|
|
|
Operating humidity
|
90% maximum relative humidity, non-condensing
|
|
|
Storage humidity
|
95% maximum relative humidity, non-condensing
|
|
|
Regulatory Approval
|
|
|
|
ISO
|
Manufactured in ISO9001 facility
|
|
|
Safety
|
CE/CCC
|
|
|
Warranty
|
2 years
|
|
|
Dimensions
|
202*140*45mm (L*W*H)
|
|
|
Weight
|
N.W:0.98Kg G.W:1.16Kg
|
|
|
Website
|
||
Details Images
Customer Praise
Our Advantages
How to Order
FAQ
Q:How is the warranty? Do you provide technical support?
A:Two years warranty with strong technical support on 24/7 .
Q:What's MOQ?
A:The MOQ depends on your requirements for color, size, material and so on.
Q:Can you provide ODM service?
A:Yes, We work on ODM orders.Which means size, material, casing design, packing solution, even APP customization etc, will depend on your requests, and your logo will be customized on your products.
Q:Shipping Method and Shipping Time?
A:1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and area.
2. By Air,DDP: about 7-12 days depends on port.
3. By Sea,DDP: about 20-35 days
A:Two years warranty with strong technical support on 24/7 .
Q:What's MOQ?
A:The MOQ depends on your requirements for color, size, material and so on.
Q:Can you provide ODM service?
A:Yes, We work on ODM orders.Which means size, material, casing design, packing solution, even APP customization etc, will depend on your requests, and your logo will be customized on your products.
Q:Shipping Method and Shipping Time?
A:1. Express courier like DHL, FEDEX to USA, and TNT to European, etc. Shipping time is about one month depends on country and area.
2. By Air,DDP: about 7-12 days depends on port.
3. By Sea,DDP: about 20-35 days
4. Agent appointed by customer.
Q:What's the payment?
A:We accept T/T L/C D/A D/P western union PayPal.
Q:How to control the quality?
A:We have always placed great emphasis on quality level.Moreover, the principle we always maintain is "to provide customers with good price, better quality and best service".
Q:Where is the factory ? Is it possible to visit your factory?
A:It is located in Baoan, Shenzhen, Guangdong, China.You are welcome to visit our factory and our office.
Q:What's the payment?
A:We accept T/T L/C D/A D/P western union PayPal.
Q:How to control the quality?
A:We have always placed great emphasis on quality level.Moreover, the principle we always maintain is "to provide customers with good price, better quality and best service".
Q:Where is the factory ? Is it possible to visit your factory?
A:It is located in Baoan, Shenzhen, Guangdong, China.You are welcome to visit our factory and our office.
