- Product Details
- {{item.text}}
Quick Details
-
Size:
-
12500*2500*1600
-
Place of Origin:
-
China
-
Product name:
-
Flatbed Container Semi Trailer
-
Tire:
-
12R22.5
-
Suspension System:
-
Mechanical Suspension System
-
Brake System:
-
Dual Line Braking System
-
Axle:
-
13 Ton Fuwa Brand
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Color:
-
Customers Optional
-
Floor:
-
3mm Checker Plate
-
Accessories:
-
One Standard Tool Box
-
Tool box:
-
1 Standard
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
<5000 kg
-
Brand Name:
-
chengda
-
Size:
-
12500*2500*1600
-
Place of Origin:
-
China
-
Product name:
-
Flatbed Container Semi Trailer
-
Tire:
-
12R22.5
-
Suspension System:
-
Mechanical Suspension System
-
Brake System:
-
Dual Line Braking System
-
Axle:
-
13 Ton Fuwa Brand
-
King pin:
-
2"(50mm)or3.5"(90mm) JOST
-
Color:
-
Customers Optional
-
Floor:
-
3mm Checker Plate
-
Accessories:
-
One Standard Tool Box
-
Tool box:
-
1 Standard
Product Information

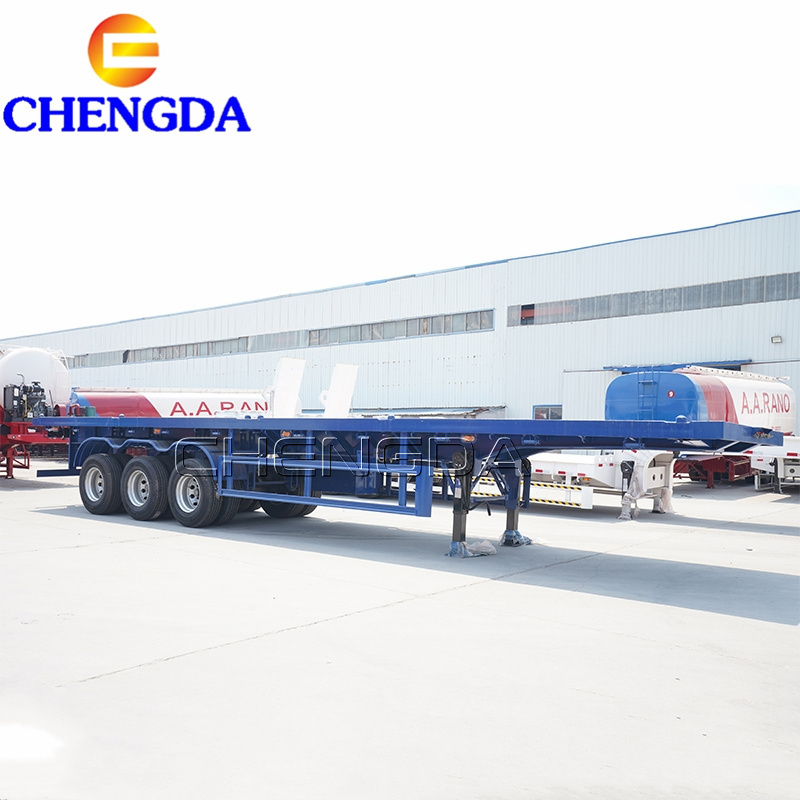

Container flatbed semi trailer
is mainly used to transport containers and other goods.
You can choose from
20, 40, 45, 48 feet; 2 ,3, 4 axles; 20, 40, 60, 80 Ton, according to your own needs.
The main beam is made of carbon steel Q345B, which has a good
yield strength to carry goods.
The platform plate is 3mm diamond plate, which has a good p
revent slippery ability and l
oad friction capacity.
When it comes to Axle brand, there are FUWA , BPW, YORK, ZY can all be chosen.
Product Details
Certifications
|
Overall Dimension
|
|
12500mm*2500mm*1600mm
|
|
||
|
Loading Weight
|
|
40000kg
|
|
||
|
Brake air chamber
|
|
Six double chamber
|
|
||
|
Platform plate
|
|
3mm Diamond plate
|
|
||
|
Axle
|
|
3*13TON Axle FUWA Brand
|
|
||
|
Suspension system
|
|
Mechanical leaf spring suspension
|
|
||
|
The material of Main beam
|
|
Q345B carbon steel
|
|
||
|
Traction Pin
|
|
2” or 3.5” bolts in, changable
|
|
||
|
Landing Gear
|
|
28Ton
|
|
||
|
Tire
|
|
12R22.5 12units
|
|
||
Productive Process
Packing&Delivery
The trailers can be shipped by container, bulk ship or ro-ro ship.
We will ship it by the most suitable way.
