Egg lifter, also named egg holder. It’s assistant for worker to help to send eggs into egg grading machine.
- Product Details
- {{item.text}}
Quick Details
-
Capacity:
-
3000-20000eggs/h
-
Processed Material:
-
Chicken egg, Duck egg, Goose eggs
-
Raw Material:
-
Carbon steel and SUS304
-
Grading Level:
-
5 grades
-
Safety Working:
-
Yes
-
Required Worker:
-
1 person
-
Type:
-
Egg Washer Grading Process Line
Quick Details
-
Name:
-
Auto egg grading plant
-
Application:
-
Chicken farm/Cleaned egg factory
-
Function:
-
Grading&sorting of eggs
-
Capacity:
-
3000-20000eggs/h
-
Processed Material:
-
Chicken egg, Duck egg, Goose eggs
-
Raw Material:
-
Carbon steel and SUS304
-
Grading Level:
-
5 grades
-
Safety Working:
-
Yes
-
Required Worker:
-
1 person
-
Type:
-
Egg Washer Grading Process Line
Product Description
Egg washer grading process machinery can be used for grade and sort kinds of eggs. Such as chicken egg, duck egg, goose egg, salted duck egg, preserved egg, hatching eggs and so on.
There’s a wide application for chicken farm, egg distributing centre or cleaned egg supermarket, and other egg deep process industry.

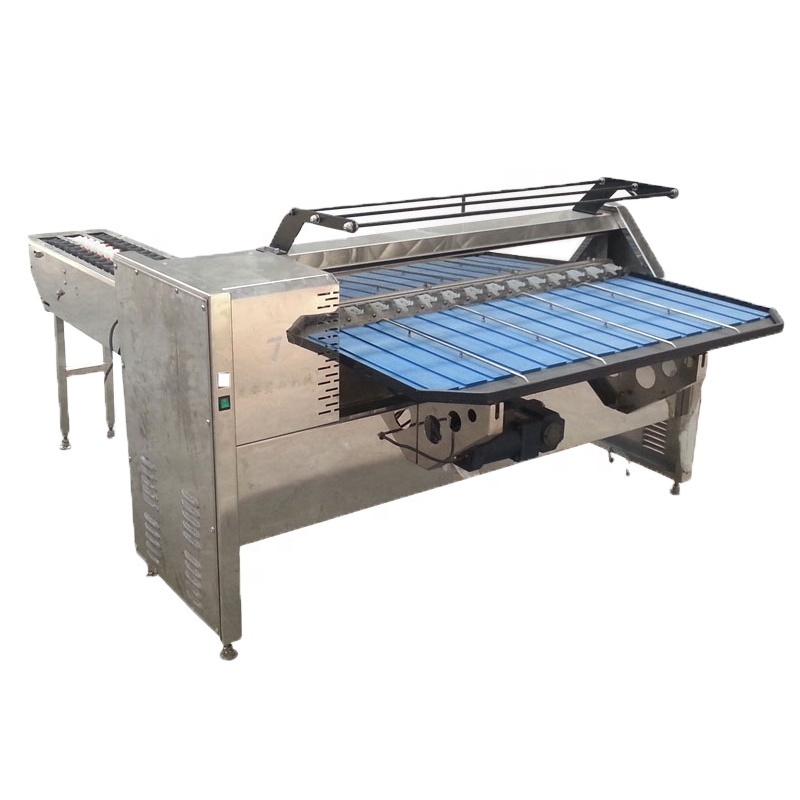

Carbon Steel Material Egg Grading Machine Stainless Steel Material Industrial Egg Grader
Features
Main Features of Industrial Egg Grading Process Plant
1) Egg grader machine working method: sorted by egg weight .
2) Available sorting levels: 3-5 levels for egg grading machine.
3) Egg grading and sorting machine material: Carbon steel and Stainless steel 304 .
4) Related equipment of egg grading with washer process plant: Egg lifter/ Egg Cleaner&Blower/ Egg Sterilizer/ Egg Candler/ Egg Printer&Coder/ Oil sprayer and so on. Customer can choose it according to actual production demands.
Parameter List
|
Model
|
Capacity
|
Power
|
Grading Level
|
Precision
|
|
MRC-G3500
|
3500 eggs/h
|
200 w
|
5
|
±0.2g
|
|
MRC-G5400
|
5400 eggs/h
|
400 w
|
5
|
±0.2g
|
|
MRC-G10000
|
10000 eggs/h
|
11.5 kw
|
5
|
±0.2g
|
Detailed Images
Production flow of auto egg grading with washer process plant with different working function.
Vacuum Egg Lifter for Egg Grading Process Line
Egg Cleaning/Blowing/Candling Machine.
Egg Cleaner&Blower function is clean the dirty chicken eggs surface, and air drying.
Egg Candling part can detect the bad eggs because there’s LED light has been installed on the bottom of conveyor roller.
Egg Printing&Coding Machine.
You could print the company logo, brand name, production date, expiration date, batch number on the eggs.
Oil Spraying from Auto Egg Grading with Washer Plant.
Oil ppraying machine function is to spray the oil, it will have a protective layer for eggs.
Reduce the water loss of chicken eggs and prevent the entrance of bacteria. Keep egg fresh.
Packing & Delivery
|
Packaging
|
|
|
|
Name
|
Egg Grading Process Plant
|
|
|
Capacity
|
3500pcs/h-20000pcs/h
|
|
|
Packaging Details
|
Egg grading machine will be wrapped by plastic film and put it into wooden case.
For egg grading process line with cleaner&oil spraying system, there's 20 feet container to deliver.
|
|
