Quick Details
-
Weight:
-
25000 kg
-
Product name:
-

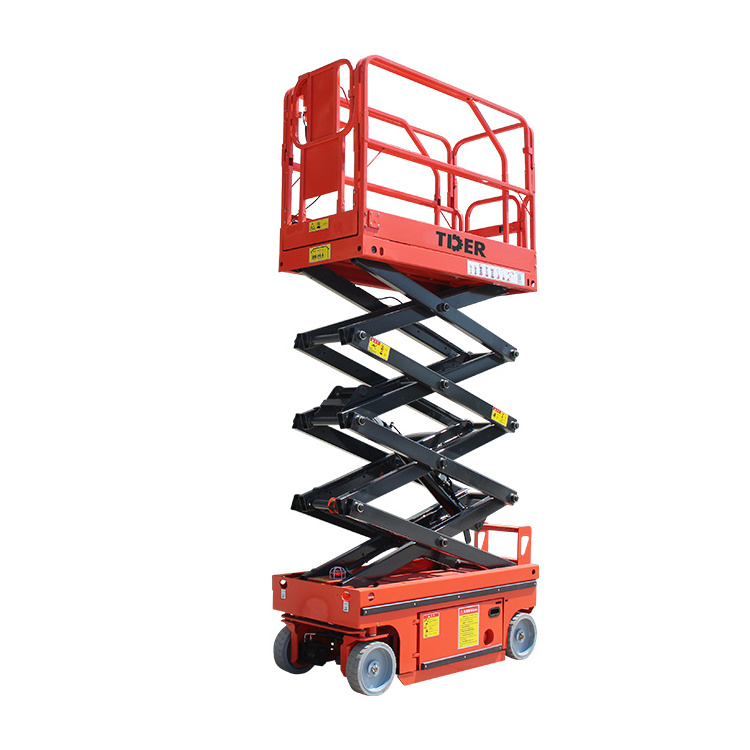

scissor work platform
-
Type:
-
electrical
-
OEM:
-
Accept OEM
-
Brand:
-
TDER
-
Packing:
-
Nude packing
-
Service:
-
Online Service
-
Load capacity:
-
230kg
-
Voltage:
-
220V,380V
-
Feature:
-
Hydraulic Mobile
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
China
-
Table Size:
-
1560
-
Weight:
-
25000 kg
-
Product name:
-
scissor work platform
-
Type:
-
electrical
-
OEM:
-
Accept OEM
-
Brand:
-
TDER
-
Packing:
-
Nude packing
-
Service:
-
Online Service
-
Load capacity:
-
230kg
-
Voltage:
-
220V,380V
-
Feature:
-
Hydraulic Mobile
Product description
Product details
Control panel On the chassis
Swing-out Chassis
Non-marking
Driving Wheels
Main Models
|
Model
|
TDWP0608
|
TDWP0608S
|
TDWP0810
|
TDWP0810S
|
TDWP1012
|
TDWP1214
|
|
Working Height Maxdmum
|
8.00m
|
8.00m
|
10.00m
|
10.00m
|
12.00m
|
14.00m
|
|
Platform Height Maximum
|
6.00m
|
6.00m
|
8.00m
|
8.00m
|
10.00m
|
12.00m
|
|
Safe working load
|
230kg
|
230kg
|
230kg
|
230kg
|
230kg
|
230kg
|
|
Extended platlorm safe working load
|
100kg
|
100kg
|
100kg
|
100kg
|
100kg
|
100kg
|
|
Working platform size (L*w*h)
|
2.26x0.81 x 1.1m
|
2.26x1.13x1.1m
|
2.26x0.81 x 1.1m
|
2.26x1.13x1.1m
|
2.26x1.13x1.1m
|
2.26x1.13x1.1m
|
|
Overall size
|
2.475 x 0.81 x 2.158m
|
2.475 x 1.15 x 2.158m
|
2.475x0.81 x 2.286m
|
2.475x1.15x2.286m
|
2.475x1.15x2.414m
|
2.475x1.15 x 2.542m
|
|
Overall size
|
2.475 x 0.81 x 1.708m
|
2.475 x 1.15 x 1.708m
|
2.475x0.81 x 1.836m
|
2.475 x 1.15 x 1.836m
|
2.475 x1.15 x1.964m
|
2.475 x 1.15 x 2.094m
|
|
Length extension deck
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
0.9m
|
|
Ground clearance-center
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
0.1/0.02m
|
|
Wheelbase
|
1.89m
|
1.89m
|
1.89m
|
1.89m
|
1.89m
|
1.89m
|
|
Turning radius (inner/ outer wheel)
|
0/2.1m
|
0/2.2m
|
0/2.1 m
|
0/2.2m
|
012.2m
|
0/2.2m
|
|
Lifting / driving motor
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
24V/4.5kw
|
|
Lifting speed
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
3-5m/min
|
|
The machine speed (folded state)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
|
Machine travel speed (lifting state)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|
Battery
|
4x6V/225ah
|
4x6V/225ah
|
4x6V/225ah
|
4x6V/225ah
|
4x6V/225ah
|
4x6V/245ah
|
|
Charger
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
24V/25A
|
|
Max Climb Capability
|
25%
|
25%
|
25%
|
25%
|
25%
|
25%
|
|
Maximum allowable working angle
|
1.5° /3°
|
2。13°
|
1.5° /3°
|
2° /3°
|
2。/3°
|
1.5° 13°
|
|
Tyre
|
0381 x 127mm
|
0381 x 127mm
|
0381x127mm
|
0381 x 127mm
|
0381 x 127mm
|
0381 x 127mm
|
|
Weight
|
1685kg
|
1900kg
|
1845kg
|
2060kg
|
2300kg
|
2460kg
|
|
Weight
|
1685kg
|
1900kg
|
1845kg
|
2060kg
|
2300kg
|
2460kg
|
